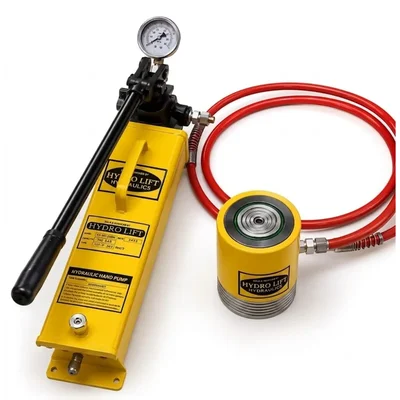

HYDROLIFT 100 Ton 50mm stroke plain ram spring return heavy-duty hydraulic RC cylinder jack.

Country of origin: India

Brand: HYDROLIFT
Weight (Approx.) : 25.7 kg
Load Capacity : 100 ton
Lifting Capacity : 100 ton
Lifting Range : 182 - 232 mm

Model: HL-RC-100/50
Cylinder Capacity @ 700 bar: 100 Ton
Stroke: 50 mm
Effective Area: 153.9 cm2
Oil Capacity: 833 cm3
Closed Height (A): 182 mm
Extended Height (B): 232 mm
Outside Diameter (D): 178 mm
Inside Diameter (E): 140 mm
Piston Rod Diameter (F): 100 mm
Plunger / Ram Type: Plain Ram / Spring Return

The HYDROLIFT Hydraulic RC Jack – Plain Ram / Spring Return is a heavy-duty industrial hydraulic lifting cylinder built for extreme-capacity applications. Engineered with a single-acting spring return mechanism, it enables smooth operation and automatic piston retraction after pressure is released. Delivering a massive 100 Ton capacity @ 700 bar with a 50 mm stroke, it features an effective area of 153.9 cm² and an oil capacity of 833 cm³. Built to handle heavy loads safely, it features a closed height of 182 mm and an extended height of 232 mm, making it an indispensable tool for heavy industrial lifting, equipment servicing, structural alignment, construction, and maintenance tasks.

Features

Heavy-duty plain ram design with single-acting spring return mechanism for automatic piston retraction
Delivers 100 Ton capacity at 700 bar pressure for high-force industrial lifting operations
Compact closed height of 182 mm suitable for high-tonnage tight-clearance applications
Engineered for heavy industrial lifting, maintenance, construction, fabrication, and equipment servicing
Built for high reliability and efficiency under demanding industrial conditions

Applications

Construction sites and bridge construction
Fabrication workshops and structural engineering
Heavy machinery maintenance and alignment
Heavy equipment servicing
Mining and railway applications
Oil & gas industries
Industrial lifting applications

Usage

Position the 100 Ton plain ram hydraulic cylinder on a firm, level surface directly beneath the load.
Connect the hydraulic pressure line to the cylinder inlet coupler.
Operate the hydraulic pump system to extend the 100 mm diameter piston rod up to 50 mm.
Release hydraulic pressure upon completion to allow the spring return mechanism to automatically retract the ram.
