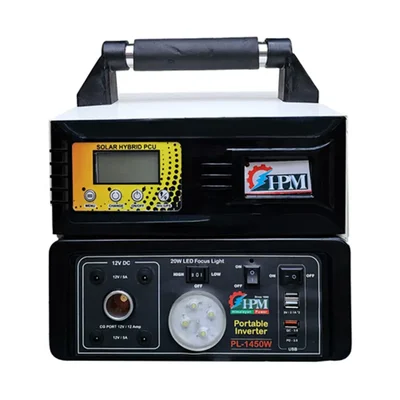

HPM 1100VA Solar Inverter With In-built Lithium Battery (PL-1450W)
SKU : TI-H1-22518
MRP : ₹45000
₹31750
29% OFF!
-
1
+
997 people have viewed this recently
Get Extra ₹476 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
HPM 1100 VA Solar Inverter
In-built Lithium Battery
1100 VA Output Power
Solar Inverter
Country of origin: India
Specification
  • Brand: HPM
  • Weight (Approx.) : 19.8 kg
  • Model No. : PL-1450W
Inverter :
  • Battery: Lithium Iron Phosphate LiFePo4
  • Cell Type : Prismatic 3.2 V- 100 AH
  • Battery Voltage : 12.8 V (4S)
  • Peak Capacity : 12.8V - 100 AH (1280 Wh)
  • Life Cycles : ≥ 2000 Cycles to 80% Capacity (80 % DOD @ 25°C, Discharge Rate 1 C)
  • BMS (Battery Management System) : Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, and Cell Balancing
  • Battery Expansion : Yes,  Expandable, can Add 1 Pack 12.8V - 100 AH
  • Shelf Life : Charge Every  3 - 6 Months

AC 230 Volt Output (Invertor Power Supply) :
  • Continues Rated Power Output : 1000 VA
  • Peak Output Power :  1100 VA
  • Voltage & Type : AC - 230 V,50Hz, Pure Sine Wave
  • THD : < 2% (Full R Load)
  • Power Factor : 0.8
  • Over Load : 110% < Load <120% @ 1 min 120% < Load <150% @ 0.5 S
  • Power Less (No Load & Turned- Off) : < 10W
  • AC Output Back time @ 70% of rated load (VA) : ≥ 3.5 Hours
  • Max. Efficient (>70% Load) : < 85%
  • Output Socket : Indian Version AC Socket x 1

DC - Output- 12V- Cigarette Lighter Socket :
  • Output Voltage : 12.8 ± 1 V
  • Continuous Output Current : 13 A (Max. 150 Watt)
  • DC Output Over Load Current Protection : Yes >13 A (Through Fuse Provided in C.G Pin)
  • DC Output Short Circuit Protection : Yes (through  BMS)

Other DC Outputs - 5V to 20 V & DC Ports :
  • USB Output (1 to 2) : 2* 5V DC, 2.4 A (12W Per Port)
  • USB Output Fast Charging QC 3.0 (3) : 1* 5V - 12V DC (18W-Max) 5V3A, 9V 2A, 12V 1.5A
  • Type - C USB (4):  1* 'C' Type - 1* USB C PD 3.0 (60W) 5V 5A, 9V 3A, 12V 1.5A, 15 V 1.5A, 20 V 1.5A
  • 12V DC -DC 5521 (2 Ports): 4 x 12V, 5A-60 W Each (5.5mm x 2.1 mm)
  • 12V DC -DC 5521 Short Cut  & Overload Protection : Through 5Amp Glass Fuse
  • USB & DC Over Load Current Protection : Yes
  • USB & DC Output short Circuit Protection : Yes (Disconnect Load Recovery)
  • Illumination / LED Flash Lighting : 15W (2 Modes: Low OR Bright).

Indicators in Panel  :
  • Battery Level / Status Indicators : LCD Display
  • Function Indicators : Fault / AC Output / Mains charging /Modes/ Load Percentage, Battery Voltage, Mains Voltage, Temperature, UPS / Inverter Mode

Charging Input Power (4 Way of Recharge) :
  • AC Inbuilt Charger (Charging From Grid Power) (AC input 120V to 275V) : Inbuilt Charging 20 Amps 6-7 Hours
  • Solar Panel PV Charge : 2 Parallel (18V/ 8.3 Amps 150W) Max 300 W Charging Time 7 - 8 Hours
  • Car Charge Input (From Cigarette Socket) : 14V, 10 Amps Max. Charging Time 10- 11 Hours
  • Portable Petrol Engine Charger (Applicable only when Inverter is connected with extra Battery Bank) :15 V - 60 Amps (750 Watts Maximum ) Charging time  Approx. 3 Hrs. for 80% Charging.
  • Heat Dissipation: Air Cooling (Fan), Aluminium Housing
  • IP Rate : IP 32 Protected from Water Spray < 15˚From Vertical

Working Condition :
  • Charge Temperature : 0˚C ~ 45˚C
  • Operating Usage Temp. : -10˚C ~ 45˚C
  • Operation Storage Humidity : 5% ~ 90%

Description
  • This is a Portable multifunctional Lithium Battery based UPS / Inverter.
  • This inverter gives AC 230V output & also 4* DC-5V for smartphone charging & 5* 12V DC output for running 12V DC appliances. This 1450W Inverter Model has an inbuilt  15W High Power has two mode  LED Light.
  • The main advantage of this solar inverter  is that it is a UPS, Hence it can supply Main AC 230V to home appliances & when main power fails, the home load automatically shifts over to Battery Inverter Power.
  • This is  a lightweight Portable Power Inverter & can be used at Household & as well can be carried away anywhere for outdoor/ field power applications. / Outdoor Camping activities.

Applications

 :
  • Drone Battery Charging Smartphone Tablet, Laptop Car Air Compressor, Mini Fridge, Car Fridge, Led Light, Flood Light, Wi-Fi - Router, Vacuum Cleaner, Projector, Coffee Maker can run on this inverter.

Accessories

 :
  • 1 x 3 pin Mains AC Cord
  • 1 x User Manual
