Brand : KBS

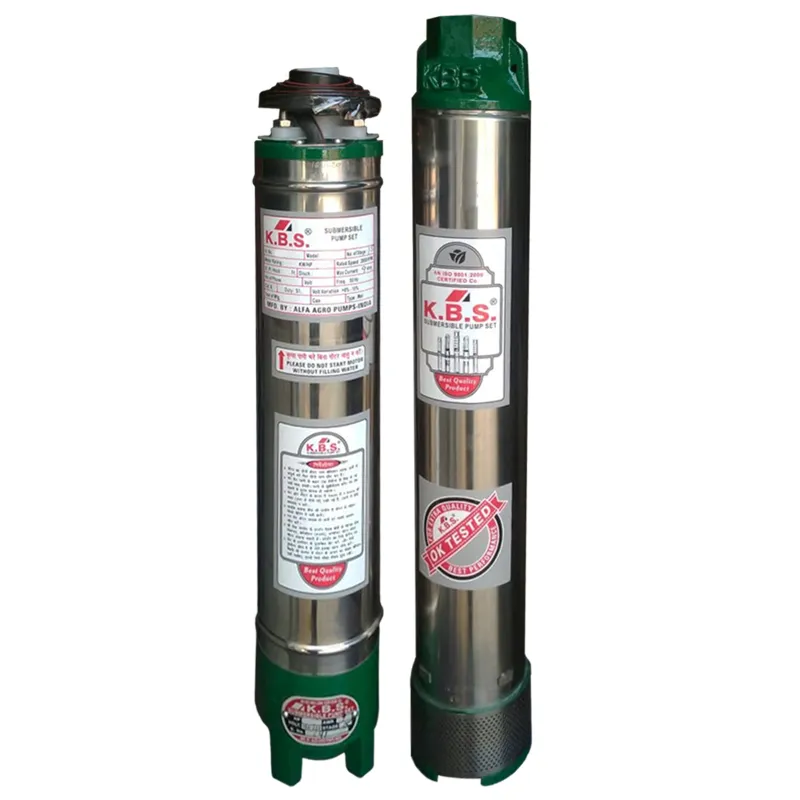

KBS 1Hp 12 Stage(4 inch) V4 Single Phase Water Cooled Submersible Pump, 250ft Head - 1 Year Warranty
SKU : TI-K1-21013
MRP : ₹8350
₹6350
24% OFF!
-
1
+
964 people have viewed this recently
Get Extra ₹95 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
KBS 1Hp 1 Phase 12 Stage Submersible Pump
250ft Max. Head, 70 LPM Max. Flow Rate
4 inch Bore, V4 Type
1 Year Warranty
SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.
Country of origin: India
Specification
  • Brand: KBS
  • Power : 1 hp
  • Weight (Approx.) : 14.4 kg
  • Flow Rate : 70 lpm
  • Head : 250
  • Product Type : Submersible Pump
  • Brand : KBS
  • Wattage : 0.75 kW
  • Supply Voltage : 150-220 Volt, 50 Hz, AC Power Supply
  • Electricity Connection : Single Phase
  • No Of Stages : 12 Stage
  • Pump Type : V4 Type
  • Suitable Bore Size : 4 inch (100 mm)
  • Cora : 2
  • Max. Head Range : 250 Feet (76 Meter)
  • Max. Flow/Discharge Rate : 70 LPM (4200LPH)
  • Pipe Size (Suction x Delivery) : 25 x 25 mm (1 x 1 inch)
  • Cooling Type : Water Cooled

Material Of Construction :
  • Motor Body : Stainless Steel
  • Motor Rotor : Copper
  • Pump Bowl : Noryl (lvory)
  • Impeller : Noryl (lvory)
  • Motor Pipe : Stainless Steel
  • Bearing Bush : Leaded Bronze
  • Motor Shaft : SS-410
  • Thrust Bearing : Carbon Vs Stainless Steel
  • Stamping : CRNGO
  • Rotor : EC Grade Copper Conductor
  • Housing/Base/Connection Piece : CI (Grade FG-200/FG-220)
  • Suction/Outlet : CI (Grade FG-200/FG-220)
  • Diffuser : Noryl (Engineering Glass Filled)
  • Pump Shaft : SS-410
  • Pump Pipe : Stainless Steel
Description
This Borewell submersible pump is designed for extracting water from deep underground sources. These pumps are submerged in the water they are meant to pump, which allows them to operate efficiently at significant depths. A 1 hp borewell submersible pump is a compact yet powerful unit suitable for residential and agricultural applications where moderate water flow is required.

Features

 :
  • Corrosion resistant stainless steel body
  • Specially designed for low voltage working
  • High Electrical and Mechanical efficiency
  • Higher heat dissipation
  • Dynamically balanced rotor and other rotating parts for uniform clearance
  • Specially designed bearing to withstand axial thrust loads
  • Designed for high voltage fluctuation
  • High efficiency, low power consumption.

Applications

 :
  • Drinking water supply. Domestic & community water supply.
  • Drip irrigation, Sprinkler irrigation and gardening.
  • Housing-Complexes, Hospitals, High rise building.
  • Fire fighting, Landscaping, Fountains, Service stations.
  • De-watering of mines, Cooling water circulation and Booster application.

Warranty :
  • 1 Year WARRANTY on manufacturing defects only.
