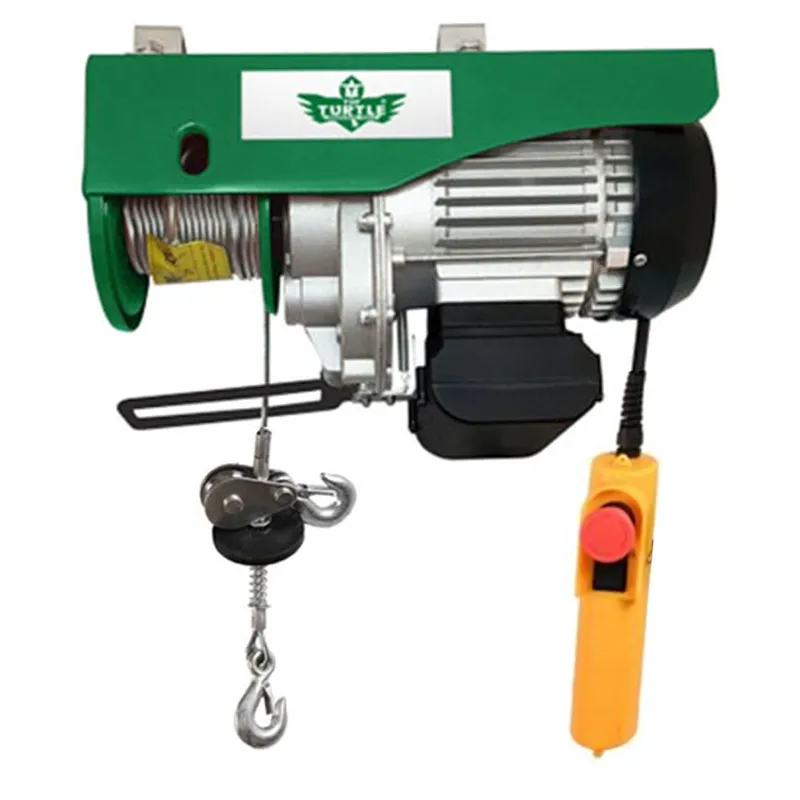

Turtle PA 500 kg Electric Hoist with 1.5 HP Copper Winding Motor, 4 mm diameter & 25 meter long Wire Rope

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

TURTLE 0.5 Ton 1350W Electric Hoist

12.5/25M Lifting Height

250/500 Kg Load Capacity

Single & Double Hook Use

Country of origin: China

Description

Turtle PA 500 kg Electric Hoist with 1.5 HP Copper Winding Motor, 4 mm diameter & 25 meter long Wire Rope

Description :

• Electric hoist is a device used for lifting or lowering heavy loads using a drum or lift-wheel around which a chain or wire rope is wrapped. It is powered by electricity and is commonly used in industrial settings, construction sites, warehouses, and workshops to facilitate the movement of heavy objects.
• Mini Electric Hoist 250/500kg with Double Hook is capable of lifting 500kg of weight with the aid of double hook. It is designed to operate electrically, with an emergency push button in red to prevent any casualty.


Features :

• With an emergency stop switch
• Reinforced braking switch with position limit
• Protection class up to IP54
• With a thermal prevention device
• Compact and small size design

• Long life span and high efficiency
• Applicable for most industry, business, handicraft industry and service industry
• Can be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry crane

Specification :

• Product Type : Electric Hoist
• Brand : TURTLE
• Capacity : 0.5 Ton (500 kg)
• Input Power : 1350 Watt
• Motor Power : 1.5 HP

• Electricity Connection : Single Phase
• Rated Voltage : 220/240 Volt
• Rated Frequency : 50/60 Hz
• Method Of Use : Single & Double Hook

• Lifting Height : Single Hook-12.5m (1250 cm), Double Hook-25m (2500 cm)
• Single Hook Load Capacity : 250 kg
• Double Hook Load Capacity : 500 kg
• Insulating Grade : B
• Protecting Grade : IP54
• Wire Rope Diameter : 4 mm
• Work Rate : 20%10 min

Inside The Box :

• 1 Electric Hoist.
• 1 Electric Hoist Remote.
• 1 Eye Hook.
• 1 Pulley Hook.
• 20-meter Wire Rope.
• Mounting Case
• Nutbolts and Clamps

Application :

• Construction Sites : Electric hoists are commonly used in construction sites for lifting heavy materials such as steel beams, concrete blocks, and equipment.
• Warehouses : In warehouses, electric hoists are utilized for moving heavy pallets, machinery, and other goods to different levels within the facility.
• Workshops : Electric hoists in workshops assist in lifting engines, vehicles, and other heavy components during maintenance and repair tasks.
• Industrial Settings : Industries such as manufacturing plants, shipyards, and mining sites use electric hoists for various material handling operations.

Specifications

 :

• Brand: TURTLE
• Power : 1.5 hp
• Weight (Approx.) : 16.2 kg
• Load Capacity : 500 kg
• Phase : Single
