Brand: Made in India

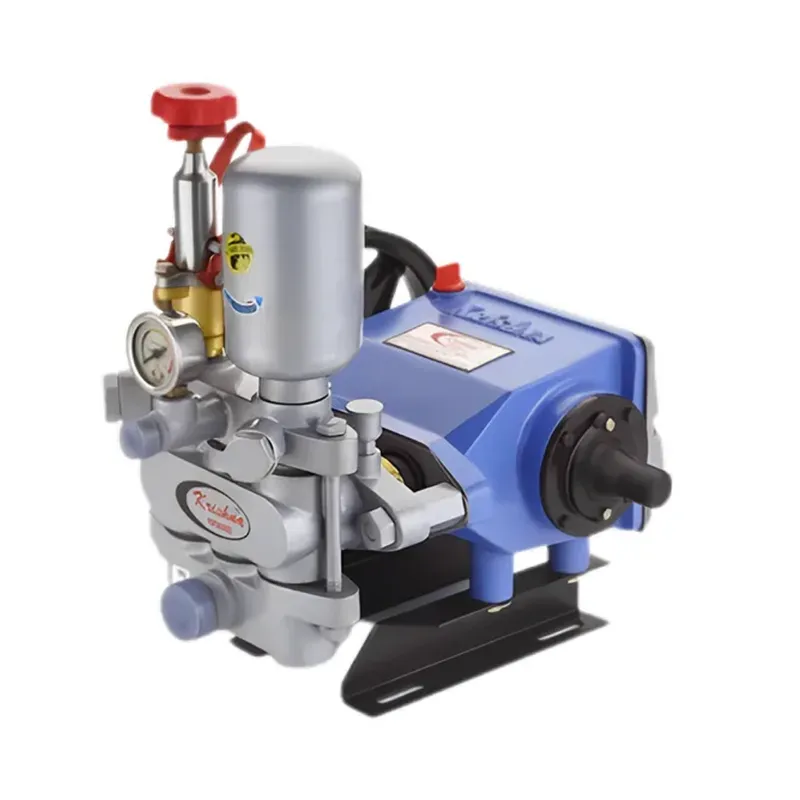

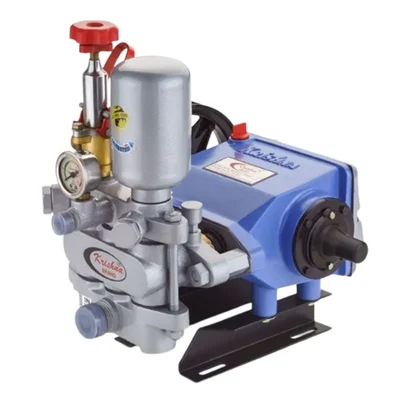

Krishna 3/5 HP Three Piston HTP Pump, 1440 RPM (KE-G3-50)
SKU: TI-K3-10620
₹1 (Including GST)
Get extra ₹0 Discount (On Checkout)
Out of Stock
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Three Piston HTP Pump
1440 RPM No-Load Speed
800 PSI (55 Kg) Maximum Pressure
Country of origin: India
Description
A 3-piston High-Pressure Triplex (HTP) pump is a type of pump, commonly used in agricultural spraying and other applications, that utilizes three pistons to generate and deliver high-pressure fluid. These pumps are designed to provide a consistent and high-pressure spray stream
Features
:- The presence of three pistons working in unison ensures a smoother and more consistent flow of liquid compared to single or double-piston pumps. This reduces pressure pulsation, leading to a more even spray pattern or consistent output.
- HTP pumps are specifically designed to generate high pressures, often ranging from hundreds to thousands of pounds per square inch (PSI) or bars. This high pressure is essential for various applications requiring forceful fluid delivery.
Specification
:- Brand: Made in India
- Weight (Approx.) : 10
- Model Number : KE-S3-36
- Number of Piston : 3
- Normal Working Pressure : 0-600 PSI(40Kg./cm²)
- Maximum Pressure : 800 PSI (55 Kg)
- Pump RPM : 540 RPM
- Suction Capacity : 50 LPM
- Motor Power : 3/5 HP
- No-Load Speed : 1440 RPM
- V-Belt Size : A-38
- Main Body Material : Cast Iron
- Head Material : S.G.I
- Piston Material : Stainless Steel
- NRV Material : Stainless Steel
- Stroke Length : 20/30 mm
- Piston Diameter : 30 mm
- Approximate Weight : 25 Kg
Warranty :Pump warranty against manufacturing problem
Accessories
:- 3 meter suction pipe
- 3 meter overflow pipe
- Pump pulley
- Piston ring set
- Nozzle set
- 1-Set Tools kit
Applications
:Used in :
- Industrial purpose
- Auto two & four wheel workshop
- Mineral water and soda water plants
- Boiler and steam engines
- State transport and workshop
- Railway workshop and cleaning yards
- Airport and ship yards
