Brand: Inder

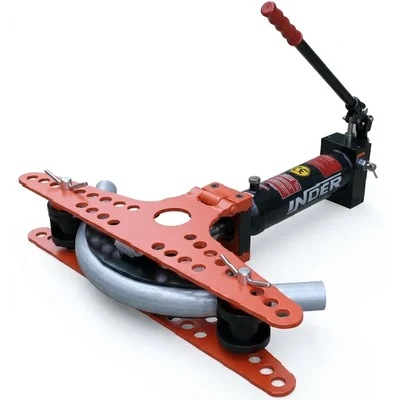

Inder 15 Ton Manual Hydraulic Pipe Bender for Heavy ERW Bending with Hinged Frame & 2" S.G. Formers (P-213B)
SKU: TI-I1-71742
Estimated Delivery By: May 17 - May 19
MRP : ₹46799 ₹38999
17% OFF!
Estimated Delivery By: May 17 - May 19 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹38999 (Including GST)
MRP : ₹46799
17% OFF!
Get Extra ₹585 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
The Inder P-213B is a powerful 15 Ton Manual Hydraulic Pipe Bender designed for 1/2" to 2" heavy-gauge ERW pipes. It features a robust hinged frame, S.G. formers, and provides precision 90° bends for industrial gas, water, and steam piping.
Country of origin: India
Specifications
- Brand: Inder
- Weight (Approx.) : 98 kg
- Net Quantity : 1 pc
- Model No: P-213B
- Type: Hydraulic Pipe Bender
- Sub Type: Hinged Frame with S.G. Formers
- Force In Tons: 15 Tonnes
- Size (Imperial): 1/2 inch to 2 inch
- Size (Metric): 12.7 mm to 50.8 mm
- Bending Angle: Up to 90°
- Pipe Standard: DIN 2440/2441 (Gas, Water, Steam)
- Grade: ISO-9001:2008
- Weight: 98 kg
Description
A heavy-duty, industrial-grade manual hydraulic pipe bender, the Inder P-213B is made to precisely bend pipes with thick walls. This device is specifically designed for long-radius bending of heavy-gauge ERW pipes, specifically 'C' class variants used in gas, water, and steam lines (DIN 2440/2441), using a large 15-ton hydraulic ram. Because the hinged frame design makes pipe insertion and removal quick, it offers an improved user experience. It provides remarkable strength and stops pipe deformation at bends of up to 90° thanks to its Spheroidal Graphite (S.G.) formers.
Features
:- 15-Ton Hydraulic Force: Provides tremendous pressure to bend pipes up to 2 inches with little effort on the part of the user.
- Long pipes may be loaded and unloaded with ease because to the hinged frame construction, which enables the top plate to swing open.
- Spheroidal graphite iron, which has greater durability and tensile strength than regular cast iron, is used by S.G. Iron Formers.
- Adaptable Bending Range: Suitable for pipe sizes between 1/2" and 2" (12.7mm and 50.8mm).
- Heavy Gauge Precision: Specifically made to meet Sch 40 criteria and 'C' class industrial pipes.
- ISO-9001:2008 Certified: Produced in accordance with stringent quality standards for dependability at the professional level.
Applications
:- Bending heavy steam and high-pressure water pipes are examples of industrial utility lines.
- Gas Infrastructure: 'C' class gas pipelines in industrial facilities are precisely routed.
- Large-scale frames, safety rails, and roll cages are examples of heavy fabrication.
- Thick-walled ERW pipes are bent on-site in shipbuilding and power plants.
Usage
:- Mount the S.G. former on the ram after choosing one that matches the pipe diameter.
- Place the pipe against the hinged frame after unlocking it.
- Put the pivot pins in the holes that correspond to the necessary bending radius.
- Secure the hinged frame by closing it.
- The 15-ton ram may be advanced until the required angle is obtained by pumping the handle.
- To retract the ram and take out the pipe, open the release valve.
