Brand: Surya

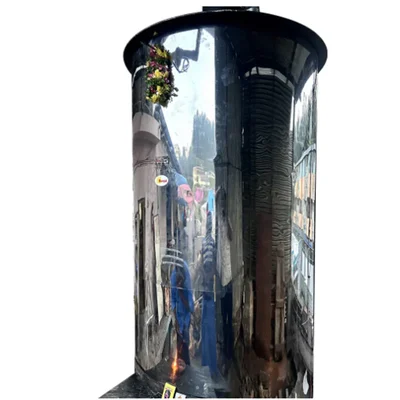

Surya Industrial Vertical Tubular High Capacity Biomass Wood Fired Hot Water Boiler 1500L
SKU: TI-SI-68259
Estimated Delivery By: Apr 15 - Apr 17
MRP : ₹318500 ₹245000
23% OFF!
Estimated Delivery By: Apr 15 - Apr 17 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹245000 (Including GST)
MRP : ₹318500
23% OFF!
Get Extra ₹3,675 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
The Surya 1500L is a 1-ton heavy-duty industrial wood-fired boiler crafted from 12mm JSW/Jindal steel. Designed for 100+ rooms, it provides rapid hot water without electricity, offering an eco-friendly and high-capacity solution for hospitals and resorts.
Country of origin: India
Specifications
- Brand: Surya
- Model: 1500L
- Capacity: 1500 Liters
- Automation Grade: Semi-Automatic
- Heater Type: Vertical Tubular Heater
- Working Pressure: 10 kg
- Fuel Consumption: 70 kg (at maximum load)
- Total Weight: 1000 kg (1 Ton)
- Inner Tank Thickness: 12 mm
- Outer Tank Thickness: 6 mm
- Diameter: 30 Inch
- Height: 12 Feet
- Inlet & Outlet Pipe: 2 Inch
- Drainage Pipe: 2 Inch
- Mixing Ratio: 1L Hot Water (60°C) to 2L Cold Water
- Room Coverage: 100+ Rooms
- Space Requirement: 3 x 3 Feet
- Color: Silver Ash
- Surface Finish: Mirror Polish
Description
Designed for large-scale applications, the Surya 1500L Wood Fired Hot Water Boiler is a powerful, industrial-grade water heating machine. This boiler has a large 1-ton structure with a 12mm thick inner tank to ensure maximum durability and a lifespan of up to 15 years. It was constructed using premium raw materials from JSW and Jindal. This vertical tube system is the best option for big hospitals, opulent resorts, and commercial dairy farms because it can give hot water to more than 100 rooms. It runs purely on biomass fuels, such as wood and agricultural waste, so it doesn't require electricity and works flawlessly in all weather conditions, including those with hard water supplies.
Features
:- Major 1500L Capacity: Specifically made to satisfy major commercial and industrial sectors' high-volume hot water needs.
- Rapid Heating Technology: The sophisticated vertical tube construction produces hot water in just ten minutes, despite its compact size.
- Extreme Durability: Constructed with a 6mm exterior tank and a 12mm inner tank, it weighs one ton and has unparalleled structural integrity.
- Superior Heat Retention: After the firing process, the device may keep heat for eight to ten hours thanks to premium insulation.
- Cost-effective and environmentally friendly: By using wood, charcoal, coconut shells, or agricultural waste, electricity expenditures can be reduced by 100%.
- Coverage for Multiple storeys and High Rooms: Able to accommodate hot water connections for more than 100 rooms on several storeys.
- Hard Water Resilience: This boiler resists mineral scaling and is very effective in hard water areas, in contrast to solar systems.
Applications
:- Industrial: Food processing facilities, textile businesses, and large manufacturing plants.
- Healthcare: Big, multispecialty hospitals and clinics.
- Hospitality: Lodges, big hotels, and opulent resorts.
- University campuses and mega-hostels are educational.
- Large-scale dairy and poultry farms are examples of the agro-industry.
Usage
:- Fuel Compatibility: Suitable for wood, charcoal, agricultural refuse, coconut shells, and kernels.
- Dry Storage: To avoid external corrosion, keep the boiler's exterior dry at all times.
- Plumbing Guidelines: Steer clear of plastic piping and make sure all connections are leak-free. A non-return valve (NRV) should not be fitted.
- Ash Management: To ensure the best possible airflow for combustion, clean the ash drawer on a regular basis.
- Exhaust Cleaning: To avoid dust obstructions that could raise fuel consumption, clean the boiler exhaust pipe on a regular basis.
- Hygiene: Flush the tank thoroughly if the water starts to smell, as this is a sign of bacterial growth.
- Surface Safety: Avoid putting flammable items, shampoos, or detergents on top of the boiler.
