KBS 1.5 HP 1 Phase 15 Stage Submersible Pump With Control Panel
180 ft. Max. Head, 70 LPM Max. Flow Rate
3 inch Bore, V3 Type
1 Year Warranty
- Farm & Garden
- Pumps & Motors
- Food Processing
- Workshop, DIY & MRO
Brand : KBS

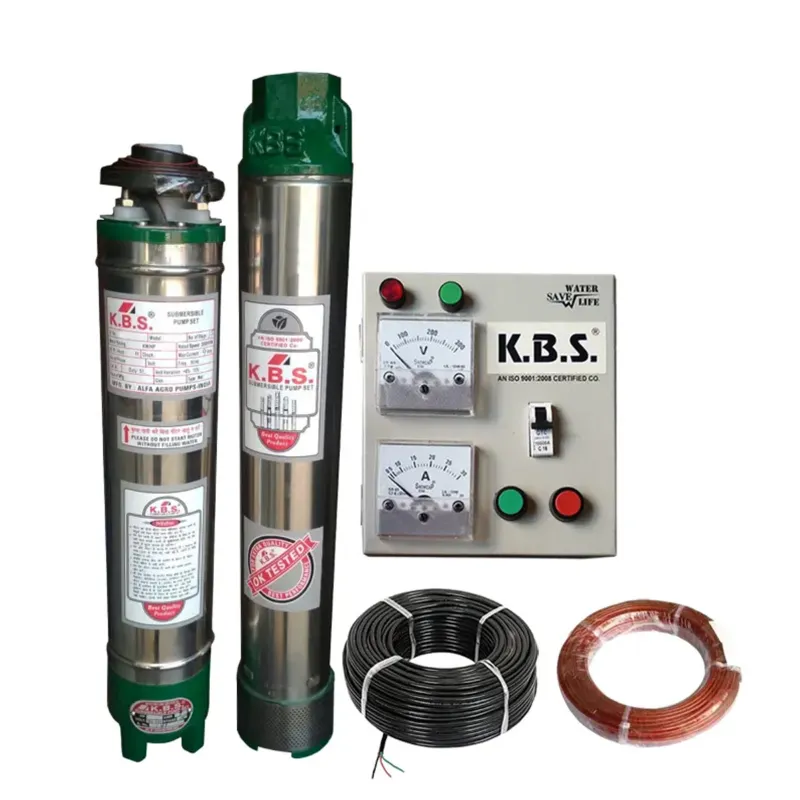

KBS 1.5 Hp 15 Stage(3 inch) V3 Single Phase Water Cooled Submersible Pump With Control Panel, 50m Submersible Cable, Safety Wire & 1 Year Warranty
SKU : TI-K1-37895
MRP : ₹17800
₹12949
27% OFF!
-
1
+
Delivery By: Jun 27 - Jun 29
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Country of origin: India
Specification
- Brand: KBS
- Power : 1.5 hp
- Weight (Approx.) : 21 kg
- Flow Rate : 70 lpm
- Head : 54.86 meter
- Product Type : Submersible Pump
- Brand : KBS
- Wattage : 1.1 kW
- Supply Voltage : 150-240 Volt, 50 Hz, AC Power Supply
- Electricity Connection : Single Phase
- No Of Stages : 15 Stage
- Pump Type : V3 Type
- Suitable Bore Size : 3 inch (75 mm)
- Cora : 3
- Max. Head Range : 180 ft. (54 Meter)
- Max. Flow/Discharge Rate : 70 LPM (4200 LPH)
- Pipe Size (Suction x Delivery) : 25 x 25 mm (1 x 1 inch)
- Stamping : 200 mm
Description
This KBS 1.5 HP V3 submersible pump is a robust single-phase solution for your water needs, featuring a 15-stage design for efficient water delivery. It comes complete with a control panel, 50m submersible cable, and safety wire for easy installation and secure operation. The 3-inch water-cooled motor ensures durability and consistent performance.
Features
:- Corrosion resistant stainless steel body
- Specially designed for low voltage working
- High Electrical and Mechanical efficiency
- Higher heat dissipation
- Dynamically balanced rotor and other rotating parts for uniform clearance
- Specially designed bearing to withstand axial thrust loads
- Designed for high voltage fluctuation
- High efficiency, low power consumption.
- Thrush Bearing
Accessories
:- Control Panel
- 50 Meter Submersible Cable (2.5 sqmm)
- Safety Wire
Material Of Construction :
- Motor Body : Stainless Steel
- Pump Bowl : PVC
- Motor Shaft : Steel
- Thrust Bearing : Carbon Vs Stainless Steel
- Rotor : Die Cast.
Applications
:- Drinking water supply. Domestic & community water supply.
- Drip irrigation, Sprinkler irrigation and gardening.
- Housing-Complexes, Hospitals, High rise building.
- Fire fighting, Landscaping, Fountains, Service stations.
- De-watering of mines, Cooling water circulation and Booster application.
Warranty :
- 1 Year WARRANTY on manufacturing defects only.
Warranty Terms :
- Dry Run Accidental Damages Are not covered in the warranty
- For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
- You have to send the product to the sellers warehouse.
- Buyer has to bear the courier charges of both side for sending the product.
