Brand: YURI

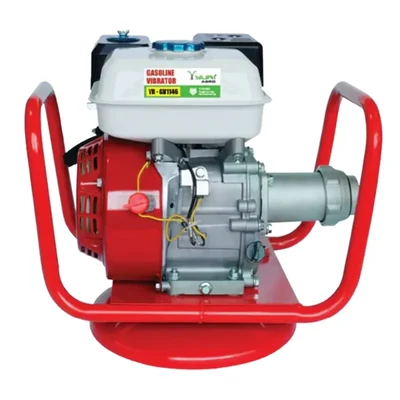

Yuri 4.8Kw 6.5HP Gasoline Vibrator for Concrete Compaction, 196cc 4-Stroke High-Torque Engine with 360-Degree Swivel Base (YR-GV1146)
SKU: TI-Y4-71973
Estimated Delivery By: Jun 16 - Jun 18
MRP : ₹13199 ₹10999
17% OFF!
Estimated Delivery By: Jun 16 - Jun 18 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹10999 (Including GST)
MRP : ₹13199
17% OFF!
Get Extra ₹165 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
A heavy-duty 6.5HP gasoline-powered concrete vibrator featuring a 196cc 4-stroke engine designed for professional-grade air bubble removal and concrete consolidation.
Country of origin: China
Specifications
- Brand: YURI
- Weight (Approx.) : 22.5 kg
- Net Quantity : 1 pc
- Rod Diameter : 50 mm
- Model: YR-GV1146
- Engine Type: Single Cylinder, 4-Stroke, Air-Forced Cooling
- Displacement: 196cc
- Output Power: 4.8Kw / 6.5HP @ 3600 RPM
- Starting System: Manual Recoil Starting
- Fuel Type: Gasoline (Unleaded)
- Fuel Tank Capacity: 3.6L
- Lubricant Type: Automotive Detergent Type
- Rotation Direction: Clockwise (viewed from flywheel side)
- Spark Plug: LD Brand
Description
The Yuri YR-GV1146 Gasoline Vibrator is a robust construction powerhouse engineered to ensure the structural integrity of your concrete work. Driven by a high-performance 196cc single-cylinder 4-stroke engine, it generates a massive 4.8Kw (6.5HP) of power, providing the consistent high-frequency vibrations needed to eliminate air pockets and honeycombing in fresh concrete. Built for the demanding conditions of a construction site, this unit features an air-forced cooling system to prevent overheating during long pours. The engine is mounted on a heavy-duty steel frame with a circular swivel base, allowing the operator to rotate the unit 360 degrees for maximum reach without moving the entire machine. With its large 3.6L fuel tank and efficient 4-stroke technology, the YR-GV1146 offers long run times and superior durability compared to standard electric or 2-stroke models.
Features
:- Powerful 6.5HP Engine: 196cc displacement provides the high torque required for heavy-duty consolidation.
- 4-Stroke Efficiency: Delivers cleaner combustion and quieter operation with no need for oil-petrol mixing.
- 360° Swivel Base: Reinforced circular base plate allows for easy rotation and flexibility on-site
- Rugged Protection Frame: Dual-handle steel cage protects engine components and facilitates easy two-person transport.
- High-Capacity Fuel Tank: 3.6L tank reduces refueling frequency during critical concrete pours.
- Air-Forced Cooling: Ensures peak performance and engine longevity under continuous load.
Applications
:- Slab Foundation: Consolidating concrete in residential and commercial floor slabs
- Column & Pillar Casting: Removing air bubbles in deep vertical concrete pours.
- Bridge & Road Works: High-intensity vibration for heavy infrastructure projects.
- Precast Concrete: Ensuring smooth finish and strength in precast blocks and panels.
Usage
:- Oil Check: Fill the crankcase with recommended automotive detergent-type oil before first use.
- Fueling: Fill the 3.6L tank with clean, unleaded gasoline
- Connection: Securely attach the vibrator needle/poker (sold separately) to the engine output shaft.
- Starting: Turn the engine switch to 'ON', open the fuel valve, set the choke, and pull the recoil starter.
- Operation: Insert the vibrator needle vertically into the concrete for 5-15 seconds until air bubbles stop rising, then extract slowly.
