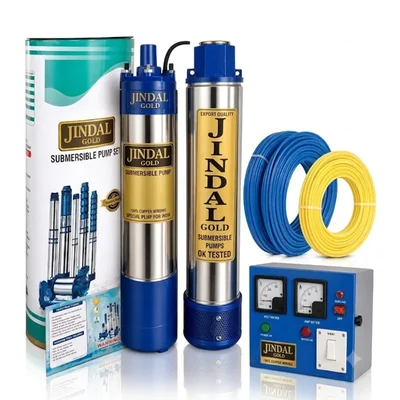

Jindal 1 HP 10 Stage V4 Single Phase Water Cooled Submersible Pump, 220ft Head, 3900 LPH

Brand: Generic ( Made in India )

Jindal 1 HP 10 Stage V4 Single Phase Water Cooled Submersible Pump, 220ft Head, 3900 LPH

Name: Jindal 1 HP 10 Stage V4 Single Phase Water Cooled Submersible Pump, 220ft Head, 3900 LPH
Brand: Generic ( Made in India )
SKU: TI-J1-79693
Price: 7299 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-J1-79693

MRP : ₹9900 ₹7299

26% OFF!

Get Extra ₹109 OFF on Prepaid Orders

Estimated Delivery By: Aug 13 - Aug 15

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹7299 (Including GST)

MRP : ₹9900

26% OFF!

Get Extra ₹109 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Jindal 1 HP 10 Stage V4 Single Phase Pump

220ft Head, 65 LPM Discharge

1 Year Warranty

Country of origin: India

Brand: Generic ( Made in India )
Power : 1 hp
Weight (Approx.) : 14 kg
Flow Rate : 65 lpm
Head : 67 meter

Power : 1 HP
Weight (Approx.) : 14 Kg
Flow Rate : 65 lpm
Head : 67 meter
Product Name : Borewell Submersible Pump
Wattage : 0.75 kW
Supply Voltage : 150 to 220 Volt, 50 Hertz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 10 Stage
Pump Type : V4
Suitable Bore Size : 4 inch
Max. Head Range : 220 Feet (67 Meter)
Max. Flow/Discharge Rate : 65 LPM (3900 LPH)
Pipe Size (Suction x Delivery) : 25 x 25 millimeter (1 x 1 inch)
Cooling Type : Water Cooled

Material Of Construction:

Motor Body : Stainless Steel
Motor Rotor : Copper
Impeller : Noryl
Pump Shaft : SS 410

The Jindal 1 HP 10 Stage V4 Single Phase Submersible Pump is a high-performance water-cooled pump designed for efficient lifting. It features a corrosion-resistant stainless steel body and delivers a powerful 65 LPM flow rate, making it highly reliable for residential, agricultural, and industrial water supply needs.

Features

Corrosion resistant stainless steel body
Specially designed for low voltage working
High Electrical and Mechanical efficiency
Higher heat dissipation
Dynamically balanced rotor and other rotating parts for uniform clearance
Specially designed bearing to withstand axial thrust loads
Designed for high voltage fluctuation
High efficiency, low power consumption

Accessories

Relay Control Panel
30 Meter Submersible Cable
Safety Wire

Applications

Drinking water supply. Domestic & community water supply.
Drip irrigation, Sprinkler irrigation and gardening.
Housing-Complexes, Hospitals, High rise building.
Fire fighting, Landscaping, Fountains, Service stations.
De-watering of mines, Cooling water circulation and Booster application.

Warranty

1 Year WARRANTY on manufacturing defects only.

Warranty Terms

Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.

Maintenance

Regularly inspect the submersible cable for any cuts, abrasions, or wear.
Never allow the pump to run dry; ensure adequate water levels at all times.
Periodically check the control panel relay connections for carbon buildup.
Verify the safety wire tension and mounting hardware annually to prevent dropping.
