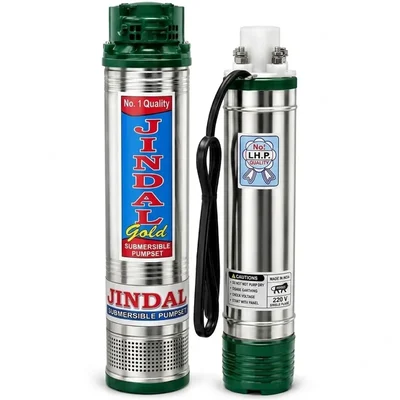

Jindal 1 HP 10 Stage V4 Single Phase Water Cooled Submersible Pump, 220ft Head, 3900 LPH

Brand: Generic ( Made in India )

Jindal 1 HP 10 Stage V4 Single Phase Water Cooled Submersible Pump, 220ft Head, 3900 LPH

Name: Jindal 1 HP 10 Stage V4 Single Phase Water Cooled Submersible Pump, 220ft Head, 3900 LPH
Brand: Generic ( Made in India )
SKU: TI-J1-80567
Price: 5499 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-J1-80567

MRP : ₹7500 ₹5499

27% OFF!

Get Extra ₹82 OFF on Prepaid Orders

Estimated Delivery By: Aug 13 - Aug 15

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹5499 (Including GST)

MRP : ₹7500

27% OFF!

Get Extra ₹82 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Jindal 1 HP 10 Stage V4 Submersible Pump

220ft Max Head, 65 LPM Max Discharge

1 Year Warranty

Country of origin: India

Brand: Generic ( Made in India )
Power : 1 hp
Weight (Approx.) : 14.4 kg
Flow Rate : 65 lpm
Head : 67 meter

Product Name : Borewell Submersible Pump
Wattage : 0.75 kW
Supply Voltage : 150-220 Volt, 50 Hz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 10 Stage
Pump Type : V4
Suitable Bore Size : 4 inch
Max. Head Range : 220 Feet (67 Meter)
Max. Flow/Discharge Rate : 65 LPM (3900 LPH)
Pipe Size (Suction x Delivery) : 25 x 25 mm (1 x 1 inch)
Cooling Type : Water Cooled

Material Of Construction

Motor Body : Stainless Steel
Motor Rotor : Copper
Impeller : Noryl (Ivory)
Motor Shaft : SS-410

This borewell submersible pump is engineered for extracting water efficiently from deep underground sources in residential and agricultural setups. Fully submerged during operation, it features a durable stainless steel body and high electrical efficiency for consistent performance. It provides reliable water delivery even under low voltage conditions and high voltage fluctuations.

Features

Built with a robust, corrosion-resistant stainless steel body for enhanced durability.
Specially designed to operate effectively under low voltage working conditions.
Offers high electrical and mechanical efficiency for low power consumption.
Superior heat dissipation capability ensures long operational life.
Dynamically balanced rotor and rotating components maintain uniform clearance and smooth running.
Fitted with specially designed bearings engineered to withstand heavy axial thrust loads.
Capable of handling high voltage fluctuations safely.

Applications

Drinking water supply. Domestic & community water supply.
Drip irrigation, Sprinkler irrigation and gardening.
Housing-Complexes, Hospitals, High rise building
Fire fighting, Landscaping, Fountains, Service stations.
De-watering of mines, Cooling water circulation and Booster application.

Warranty

1 Year WARRANTY on manufacturing defects only.

Warranty Terms

Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.

Maintenance

Ensure the borewell is free from excessive sand, mud, or silt before installation to prevent wear on impellers.
Do not operate the pump without water inside the borewell to prevent dry running damage.
Check electrical connections and supply voltage regularly to ensure stable performance within normal operating limits.
Monitor discharge flow rate periodically to check for line blockages or wear.
Ensure proper submersion level in water to maintain efficient cooling and lubrication.
