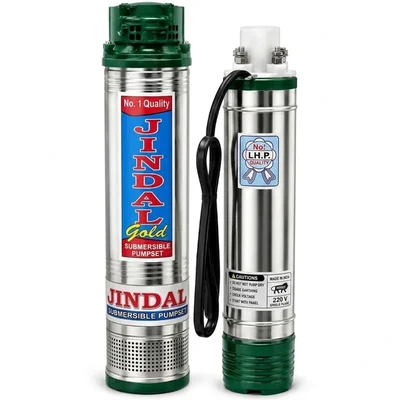

Jindal 1 HP 12 Stage V4 Single Phase Water Cooled Submersible Pump, 250ft Head, 4200 LPH

Brand: Generic ( Made in India )

Jindal 1 HP 12 Stage V4 Single Phase Water Cooled Submersible Pump, 250ft Head, 4200 LPH

Name: Jindal 1 HP 12 Stage V4 Single Phase Water Cooled Submersible Pump, 250ft Head, 4200 LPH
Brand: Generic ( Made in India )
SKU: TI-J1-80399
Price: 6019 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-J1-80399

MRP : ₹8200 ₹6019

27% OFF!

Get Extra ₹90 OFF on Prepaid Orders

Estimated Delivery By: Aug 13 - Aug 15

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹6019 (Including GST)

MRP : ₹8200

27% OFF!

Get Extra ₹90 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Jindal 1 HP 12 Stage V4 Submersible Pump

250ft Max Head, 70 LPM Max Discharge

1 Year Warranty

Country of origin: India

Brand: Generic ( Made in India )
Power : 1 hp
Weight (Approx.) : 14.4 kg
Flow Rate : 70 lpm
Head : 76 meter

Power : 1 Hp
Weight (Approx.) : 14.4 Kg
Flow Rate : 70 lpm
Head : 76 meter
Product Name : Borewell Submersible Pump
Wattage : 0.75 kW
Supply Voltage : 150-220 Volt, 50 Hz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 12 Stage
Pump Type : V4
Suitable Bore Size : 4 inch
Max. Head Range : 250 Feet (76 Meter)
Max. Flow/Discharge Rate : 70 LPM (4200 LPH)
Pipe Size (Suction x Delivery) : 25 x 25 mm (1 x 1 inch)
Cooling Type : Water Cooled

Material Of Construction:

Motor Body : Stainless Steel
Motor Rotor : Copper
Impeller : Noryl (Ivory)
Pump Shaft : SS-410

This 1 HP V4 borewell submersible pump is designed for efficiently extracting water from deep underground sources up to 250 feet. It features a water-cooled motor and durable stainless steel construction, making it ideal for domestic, agricultural, and commercial water supply needs.

Features

Corrosion-resistant stainless steel outer body for high durability.
Specially engineered for efficient operation under low voltage conditions.
High electrical and mechanical efficiency with lower heat dissipation.
Dynamically balanced rotating components ensuring uniform clearance and smooth performance.
Heavy-duty bearing design capable of withstanding high axial thrust loads.
Built to withstand wide voltage fluctuations with low power consumption.

Applications

Drinking water supply. Domestic & community water supply.
Drip irrigation, Sprinkler irrigation and gardening.
Housing-Complexes, Hospitals, High rise building.
Fire fighting, Landscaping, Fountains, Service stations.
De-watering of mines, Cooling water circulation and Booster application.

Warranty:

1 Year WARRANTY on manufacturing defects only.

Warranty Terms:

Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.

Maintenance

Ensure the borewell is completely flushed and free of excess sand or silt before installation to prevent impeller clogging.
Verify that the power supply voltage stays within the specified range of 150 to 220 Volt during operation.
Use a proper control panel with dry-run protection to avoid running the pump without water.
Periodically check electrical wiring connections, insulation resistance, and earthing for safe operation.
Inspect the non-return valve and delivery pipe joints regularly to prevent water backflow and pressure leakage.
