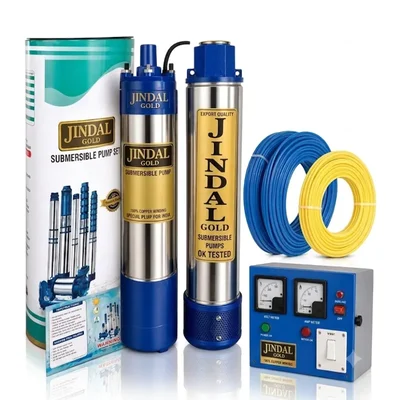

Jindal 1 HP 12 Stage V4 Single Phase Water Cooled Submersible Pump, 250ft Head, 4200 LPH

Brand: Generic ( Made in India )

Jindal 1 HP 12 Stage V4 Single Phase Water Cooled Submersible Pump, 250ft Head, 4200 LPH

Name: Jindal 1 HP 12 Stage V4 Single Phase Water Cooled Submersible Pump, 250ft Head, 4200 LPH
Brand: Generic ( Made in India )
SKU: TI-J1-79658
Price: 7299 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-J1-79658

MRP : ₹9900 ₹7299

26% OFF!

Get Extra ₹109 OFF on Prepaid Orders

Estimated Delivery By: Aug 13 - Aug 15

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹7299 (Including GST)

MRP : ₹9900

26% OFF!

Get Extra ₹109 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Jindal 1.0 HP 12 stage V4 Submersible Pump

250ft max Head, 70 LPM Max Discharge

1 Year Warranty

Country of origin: India

Brand: Generic ( Made in India )
Power : 1 hp
Weight (Approx.) : 14 kg
Flow Rate : 70 lpm
Head : 76 meter

Product Name : Borewell Submersible Pump
Wattage : 0.75 kilowatt
Supply Voltage : 150 to 220 volt, 50 hertz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 12 Stage
Pump Type : V4
Suitable Bore Size : 4 inch
Max. Head Range : 250 feet (76 meter)
Max. Flow or Discharge Rate : 70 lpm (4200 lph)
Pipe Size (Suction x Delivery) : 35 x 35 millimeter
Cooling Type : Water Cooled

Material Of Construction:

Motor Body : Stainless Steel
Motor Rotor : Copper
Impeller : Noryl (Ivory)
Pump Shaft : SS-410

This water-cooled submersible pump operates fully submerged, dissipating heat directly into the liquid for continuous and efficient performance. It is specifically designed for reliable domestic, agricultural, and industrial water supply from deep borewells.

Features

Corrosion resistant stainless steel body
Specially designed for low voltage working
High Electrical and Mechanical efficiency
Higher heat dissipation
Dynamically balanced rotor and other rotating parts for uniform clearance
Specially designed bearing to withstand axial thrust loads
Designed for high voltage fluctuation
High efficiency, low power consumption

Accessories

Control Panel
30 Meter Submersible Cable
Safety Wire

Applications

Drinking water supply. Domestic & community water supply.
Drip irrigation, Sprinkler irrigation and gardening.
Housing-Complexes, Hospitals, High rise building.
Fire fighting, Landscaping, Fountains, Service stations.
De-watering of mines, Cooling water circulation and Booster application.

Warranty:

1 Year WARRANTY on manufacturing defects only.

Warranty Terms:

Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.

Maintenance

Regularly inspect the control panel and submersible cable for wear or loose connections.
Monitor voltage fluctuations to ensure the pump operates within the 150 to 220 volt range.
Ensure the pump is fully submerged during operation to prevent dry run damage.
Check the safety wire periodically to maintain secure installation inside the borewell.
