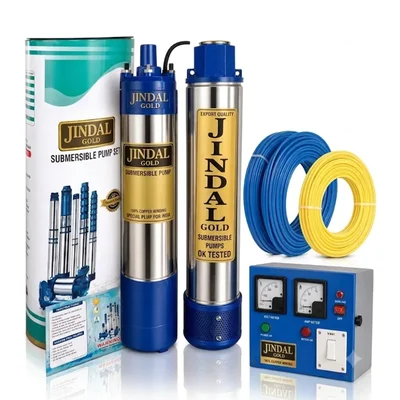

Jindal Gold 1.0 HP 15 Stage V3 Single Phase Water Cooled Submersible Pump, 150ft Head, 3600 LPH

Brand: Generic ( Made in India )

Jindal Gold 1.0 HP 15 Stage V3 Single Phase Water Cooled Submersible Pump, 150ft Head, 3600 LPH

Name: Jindal Gold 1.0 HP 15 Stage V3 Single Phase Water Cooled Submersible Pump, 150ft Head, 3600 LPH
Brand: Generic ( Made in India )
SKU: TI-JG-79726
Price: 7499 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-JG-79726

MRP : ₹10200 ₹7499

26% OFF!

Get Extra ₹112 OFF on Prepaid Orders

Estimated Delivery By: Aug 13 - Aug 15

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹7499 (Including GST)

MRP : ₹10200

26% OFF!

Get Extra ₹112 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Jindal 1 hp V3 Pump

150ft Max Head Capacity

60 lpm Max Water Discharge

1 Year Manufacturing Warranty

Country of origin: India

Brand: Generic ( Made in India )
Power : 1 hp
Weight (Approx.) : 14.4 kg
Flow Rate : 60 lpm
Head : 46 meter

Power : 1 hp
Weight (Approx.) : 14.4 Kg
Flow Rate : 60 lpm
Head : 46 meter
Product Name : Borewell Submersible Pump
Wattage : 0.75 kW
Supply Voltage : 150 to 220 Volt, 50 Hz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 15 Stage
Pump Type : V3
Suitable Bore Size : 3 inch
Max. Head Range : 150 Feet (46 Meter)
Max. Flow/Discharge Rate : 60 LPM (3600 LPH)
Pipe Size (Suction x Delivery) : 25 by 25 mm (1 by 1 inch)
Cooling Type : Water Cooled

Material Of Construction :

Motor Body : Stainless Steel
Motor Rotor : Die Cast
Impeller : PVC
Pump Shaft : Steel

A highly efficient water-cooled submersible pump fully submerged during operation, eliminating external cooling needs while offering quiet performance. It is perfectly designed to prevent overheating in deep wells, boreholes, and continuous immersion applications.

Features

Corrosion resistant stainless steel body
Specially designed for low voltage working
High electrical and mchanical efficiency
Higher heat dissipation
Dynamically balanced rotor and other rotating parts for uniform clearance
Specially designed bearing to withstand axial thrust loads
Designed for high voltage fluctuation
High efficiency, low power consumption

Accessories

Control Panel
30 Meter Submersible Cable
Safety Wire

Applications

Drinking water supply. Domestic & community water supply.
Drip irrigation, Sprinkler irrigation and gardening.
Housing-Complexes, Hospitals, High rise building.
Fire fighting, Landscaping, Fountains, Service stations.
De-watering of mines, Cooling water circulation and Booster application.

Warranty :

1 Year WARRANTY on manufacturing defects only.

Warranty Terms :

Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.
