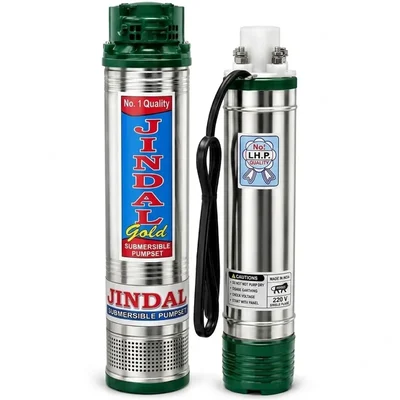

Jindal 1 HP 15 Stage V4 Single Phase Water Cooled Submersible Pump, 300ft Head, 4800 LPH

Brand: Generic ( Made in India )

Jindal 1 HP 15 Stage V4 Single Phase Water Cooled Submersible Pump, 300ft Head, 4800 LPH

Name: Jindal 1 HP 15 Stage V4 Single Phase Water Cooled Submersible Pump, 300ft Head, 4800 LPH
Brand: Generic ( Made in India )
SKU: TI-J1-80406
Price: 5899 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-J1-80406

MRP : ₹8000 ₹5899

26% OFF!

Get Extra ₹88 OFF on Prepaid Orders

Estimated Delivery By: Aug 13 - Aug 15

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹5899 (Including GST)

MRP : ₹8000

26% OFF!

Get Extra ₹88 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Jindal 1 HP 15 Stage V4 Submersible Pump

300ft Max Head, 80 LPM Max Flow

1 Year Warranty

Country of origin: India

Brand: Generic ( Made in India )
Power : 1 hp
Weight (Approx.) : 14.4 kg
Flow Rate : 80 lpm
Head : 91 meter

Power : 1 Hp
Weight (Approx.) : 14.4 Kg
Flow Rate : 80 lpm
Head : 91 meter
Product Name : Borewell Submersible Pump
Wattage : 0.75 kW
Supply Voltage : 150 to 220 Volt, 50 Hz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 15 Stage
Pump Type : V4
Suitable Bore Size : 4 inch
Max. Head Range : 300 Feet (91 Meter)
Max. Flow/Discharge Rate : 80 LPM (4800 LPH)
Pipe Size (Suction x Delivery) : 25x25 mm (1x1 inch)
Cooling Type : Water Cooled

Material Of Construction

Motor Body : Stainless Steel
Motor Rotor : Copper
Impeller : Noryl (Ivory)
Pump Shaft : Stainless Steel 410

This borewell submersible pump is designed for extracting water efficiently from deep underground sources. Operating fully submerged, it provides high electrical efficiency and uniform performance for residential and agricultural needs. It handles low voltage working and high voltage fluctuations effectively.

Features

Corrosion resistant stainless steel body ensures long operational life
Specially engineered to work efficiently under low voltage condition
High electrical and mechanical efficiency with low power consumption
Superior heat dissipation capability during continuous operation
Dynamically balanced rotor and rotating parts ensure uniform clearance
Specially designed bearing withstands heavy axial thrust loads
Built to endure high voltage fluctuations safely

Applications

Drinking water supply. Domestic & community water supply.
Drip irrigation, Sprinkler irrigation and gardening.
Housing-Complexes, Hospitals, High rise building.
Fire fighting, Landscaping, Fountains, Service stations.
De-watering of mines, Cooling water circulation and Booster application.

Warranty:

1 Year WARRANTY on manufacturing defects only.

Warranty Terms:

Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.
