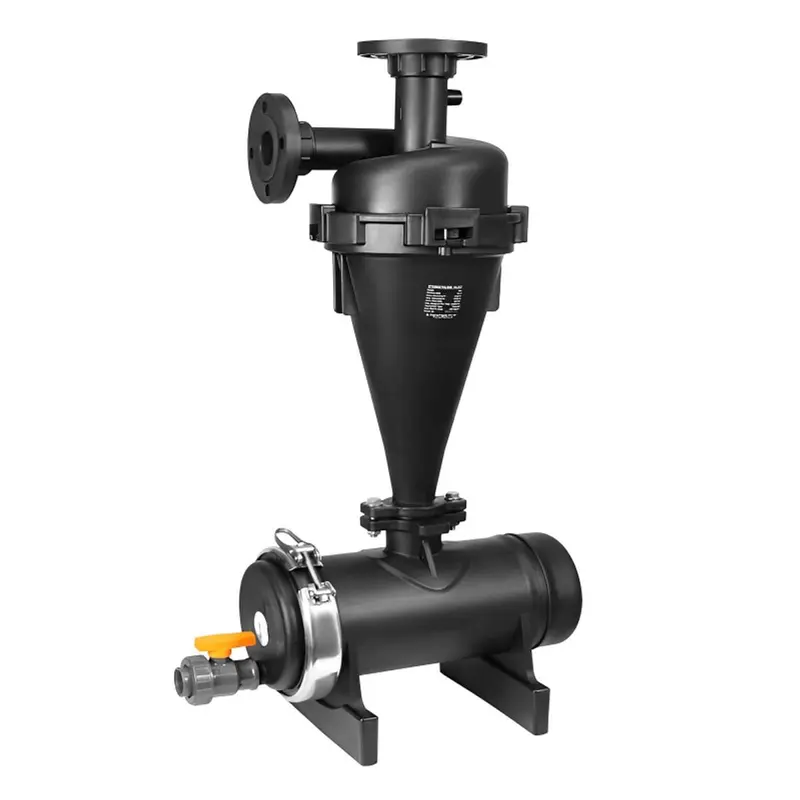

Hydrocyclone filter is ideal for when need to pre-filter water with high loads of sand, before passing it through filters. It is incredibly easy to operate and maintain as it has no moving parts. It separates sand and other solid matter with very little head loss, and with 90% or greater efficiency than other separators in the market. It is able to effectively move the solid particles outwards.
Features
:
Body Made from reinforced engineering plastic for durability .
Hydro dynamically designed to create maximum centrifugal action.
Dirt can be easily flushed out through drain port.
Collector chamber can be easily cleaned by opening collector cover.
Hybrid Nylon Clamp with SS Lock used to open/close collector cover from collector chamber.
Easy to install and low maintenance.
Stand for Height Increase.
Specially designed High Wear Resistant Special Plastic inserted in the bottom of cone to avoid wear due to strong sand vortex.
Specification
:
Model No. : HT-145M
Product Type : Hydrocyclone Filter
Brand : Automat
Inlet/outlet : 2.5 Inch/ 65 mm/(6.35 cm approx)
Rec. Range of flow Rate : 25-40 m3/hr
Nominal Flow Rate : 30 m3/hr
Dimensions :
A : 940 mm
B : 815 mm
C : 206 mm
D : 151 mm
E : 395 mm
Material of Construction : Reinforced PP+ Nylon
Gross Weight : 7.8 Kg
Capacity of Underflow Chamber : 8 Ltr.
Max. Operating Pressure : 6 kg/cm2
Applications
:
Used for the separation of sands and other solid materials from water or other liquids
Protects pump, valves and irrigation systems from damage and abrasion that is often caused by suspended solids
Pre-filtering of liquids prior to gravel filtration and screen filter systems
For agriculture, domestic, industrial and municipal usage
