Short Description

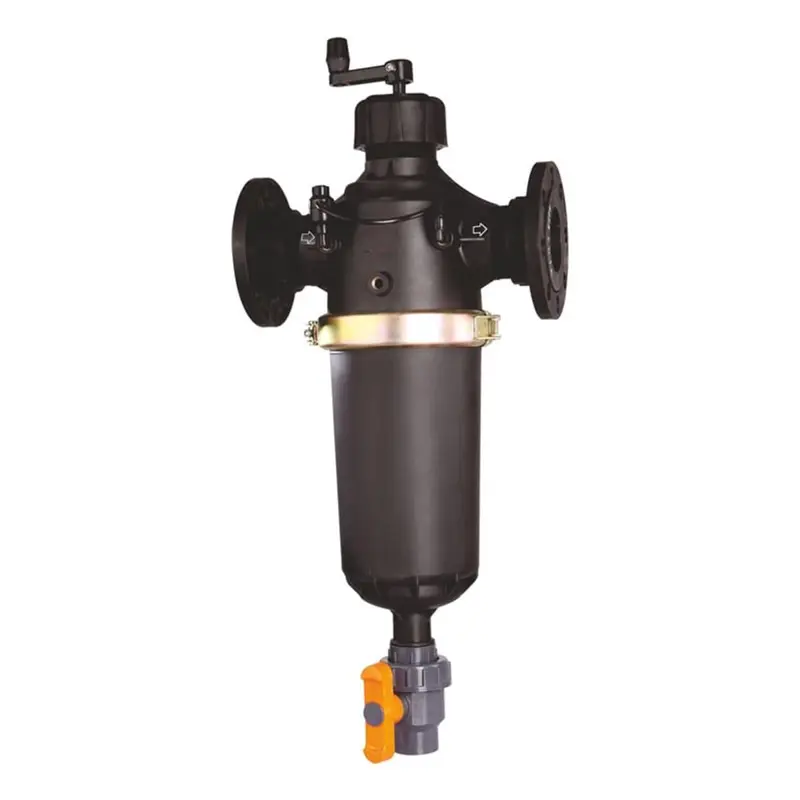

Semi Automatic Screen Filter (30m3/hr)
2.5 inch ( (6.35 cm approx) Size
Automat
Country of origin: India
Specification
  • Brand: Automat
  • Weight (Approx.) : 7 kg
  • Model No : HT-125T-SA
  • Mesh Size : 120 Mesh/130 Micron
  • Filtering Cartridge : Stainless Steel Screen
  • Max. Pressure : 8 Kg/cm2
  • Range of Flow Rate : 25-35 m3/hr
  • Nominal Flow Rate : 30 m3/hr
  • Clean Pressure Drop : Max. 0.28 kg/cm2
  • Filtration Surface Area : 831 cm2
  • Closing System : Stainless Steel Clamp
  • Cartridge Diameter : 119 mm
  • Cartridge Length : 378 mm

Warning : To prevent water hammer (surge), always open and close upstream valve gradually
Description
A screen filter is a filtration device that uses a rigid or flexible screen to separate solid particles or suspended matter from fluids, primarily used in irrigation, industrial, and wastewater treatment applications.

Features

 :
  • Non Corrosive SS-316 Stainless Steel Filter Mesh.
  • A secondary filter (75-100 Microns) is required to operate the product.
  • Easy to install and low maintenance.
  • Wide range of flow rate
  • Low pressure drop

Applications

 :
  • Effective in filtering organic as well as inorganic contaminants.
  • Mainly used if algae, silt and clay particles are abundant quantity into water / muddy water.
  • Essential for all the water sources exposed to Sun rays.

Usage

 :
  • Cleaning the semi-automatic filter must be done while the filter is under pressure.
  • Open the drain valve gradually.Close the valve gradually.
  • Cleaning of the filter must be done when pressure differential across the screen reaches 0.5kg/cm² (7psi) or when the pressure indicator red button pops up.
  • Rotate the handle gripper in clockwise direction 4 - 5 times and then rotate in anti -clockwise direction to finish the process. This is to be done online when the system is on.
  • In case the filter is still clogged (pressure indicator button is up).Repeat the above while the downstream valve of the filter is closed.
