Disc Filter T Type 2.5 inch for Fiteration 30m3 per hr

Easy Returns

Quality Assurance

Trusted Delivery

After Sales Assistance

Short Description

T-Type Disc Filter (30m3/hr)

2.5 inch Size

Description

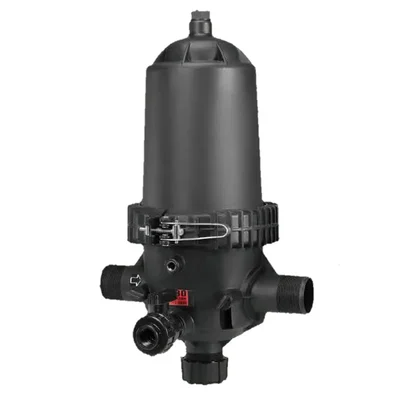

Disc Filter T Type 2.5 inch for Fiteration 30m3 per hr

Descriptions :

• 2.5 Inch T-Type Disc filter (30m³/hr) in which flow passes from outside to inside of disc stake.
• The filters are made from special chemically bonded polymer which are weather resistant.
• Disc filter made with special Helix system which gives better performance and results.

Features :

• Du point Nylon Hybrid Clamp with SS Lock for high pressure operations.
• PPGF Slip - on flange for easy installation (Optional)
• Bigger drain port with 3/4" ball valve for quick drainage.
• Disk filters are made with special Helix system which gives better performance and results.

Specifications :

• Model No : HT-135T
• Product Type : Agriculture T-Type Disc Filter
• Brand : Imported
• Inlet/ Outlet Connection : 2.5 Inch BSP/NPT Male Thread

• Max. Operating Pressure : 6 kg/cm2

• Range of Flow Rate : 35 -45 m3/hr

• Max. Recommended Flow Rate : 30 m3/hr (500 ltr/hr)
• Filtration Surface Area : 878 cm2
• Material of Construction : Reinforce Polypropylene
• Cartridge Diameter : 121 mm

• Cartridge Length : 400 mm
