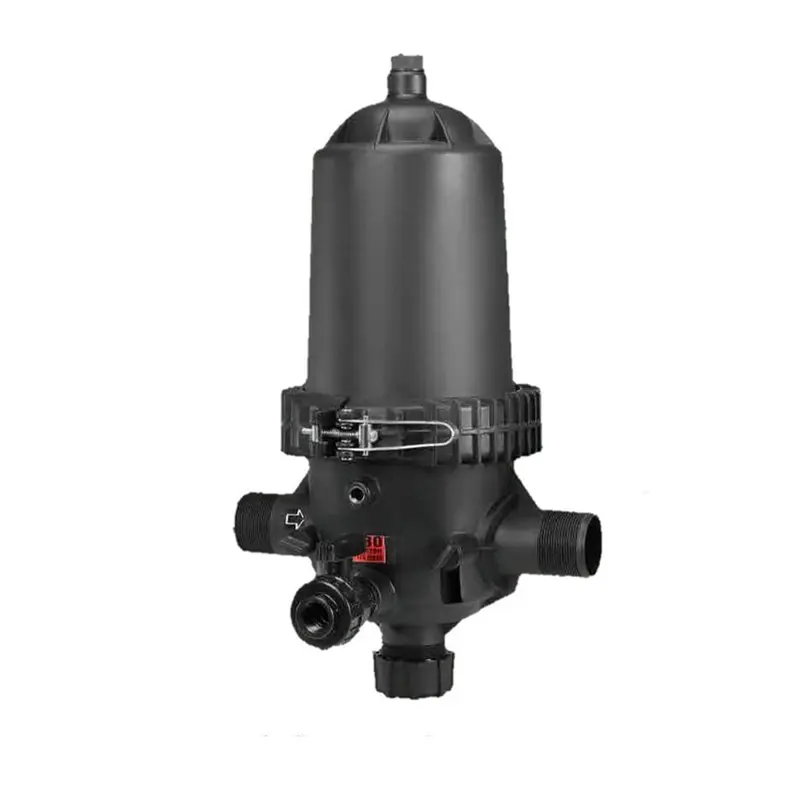

Automat Screen Filter T Type 2.5 inch for Filtration 40m3 per hr

• Model No : HT-125TL
• Size : 2.5 Inch  (6.35 cm approx)
• Inlet/ Outlet Connection : 2.5 Inch (6.35 cm approx) BSP/NPT Male Thread
• Max. Operating Pressure : 8 kg/cm2

• Range of Flow Rate : 35- 45 m3/hr

• Max. Recommended Flow Rate : 40 m3/hr (667 ltr/hr)
• Filtration Surface Area : 831 cm2
• Material of Construction : Reinforce Polypropylene
• Cartridge Diameter : 121 mm

• Cartridge Length : 382 mm

Features

• Outside - Inside filtration.
• For upside installation.
• Provided with specially designed vacuum breaker valve for quick drain and to avoid vacuum/air trapping.
• Clamp made out of re-enforced Nylon with plated steel lock assembly for durability.
• The filters are made from special chemically bonded polymer which are weather resistant.
• Bigger drain port provided for water drainage.
• Screen comes with special SS-316 Single mesh for strength and corrosion resistance.
• Specially designed long handle for easy clamp opening & closing.

Applications

• Effective in filtering organic as well as inorganic contaminants.
• Mainly used if algae, silt and clay particles are abundant quantity into water / muddy water.
• Essential for all the water sources exposed to Sun rays.

Shipping Weight & Dimensions
