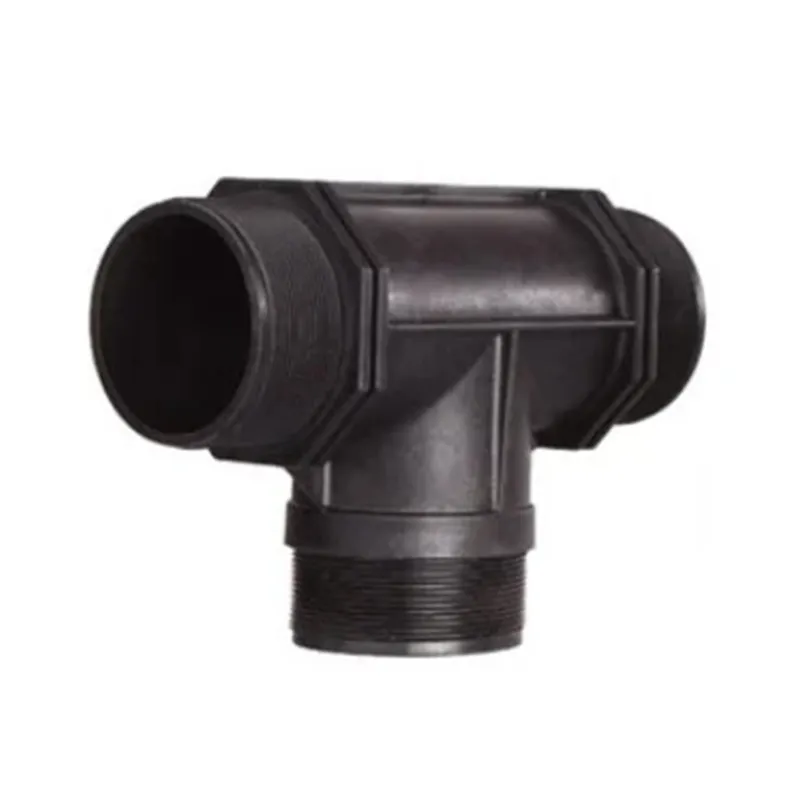

2.5 Inch Threaded Bypass Tee with 3 Nos. Slip on Flange
Description :
Slip on Flange is essentially a ring that is placed over the pipe end, with the flange face extending from the end of the pipe by enough distance to apply a weld bead on the inside diameter.
Threaded Tees is a type of pipe fitting which is T-shaped having two outlets, at 90° to the connection to the main line.
It is a short piece of pipe with a lateral outlet.
Features :
Slip On : Good Resistance to strong acids except highly active oxidizers, such as nitric acid. It also has excellent resistance to weak and strong alkalies and to most organic solvents.
It also has excellent resistance to weak and strong alkalies and to most organic solvents.
Tees with Smooth Flow and minimal pressure drop.
Sturdy and strong with a longer life
UV Stabilized
Specifications :
Model No. : HT-185
Product Type : By Pass Tee with Slip On Flange
Brand : Imported
Size : 2.5 Inch or 65 mm
Material : Reinforced Polypropylene
Color : Black
Tee Dimensions :
(d) : 66 mm
(L1) : 32.4 mm
(L) : 226.6 mm
(H) : 160.8 mm
Max. Operating Pressure: 10 Bar/ 145 Psi
Applications :
Pipe Tee is used to connect pipelines with a pipe at a right angle with the line.
Pipe Tees are widely used in various commercial and industrial applications.
