Brand: Gorek

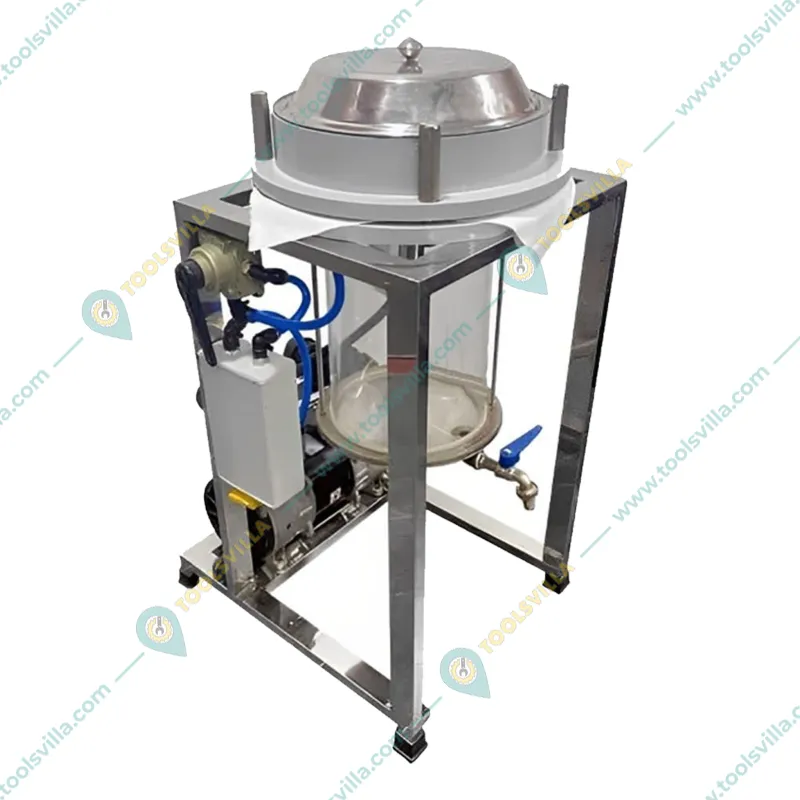

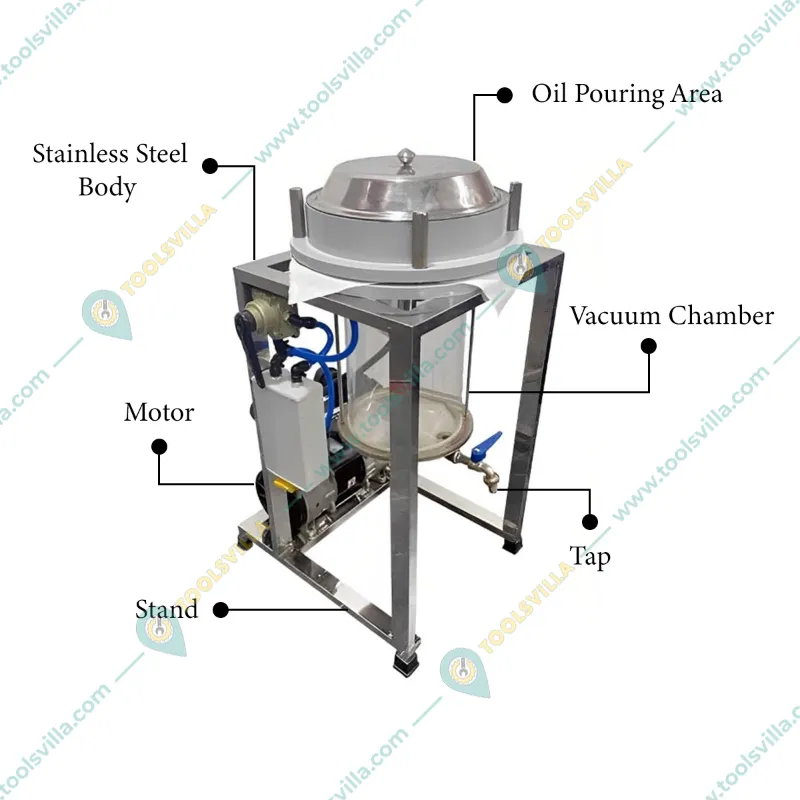

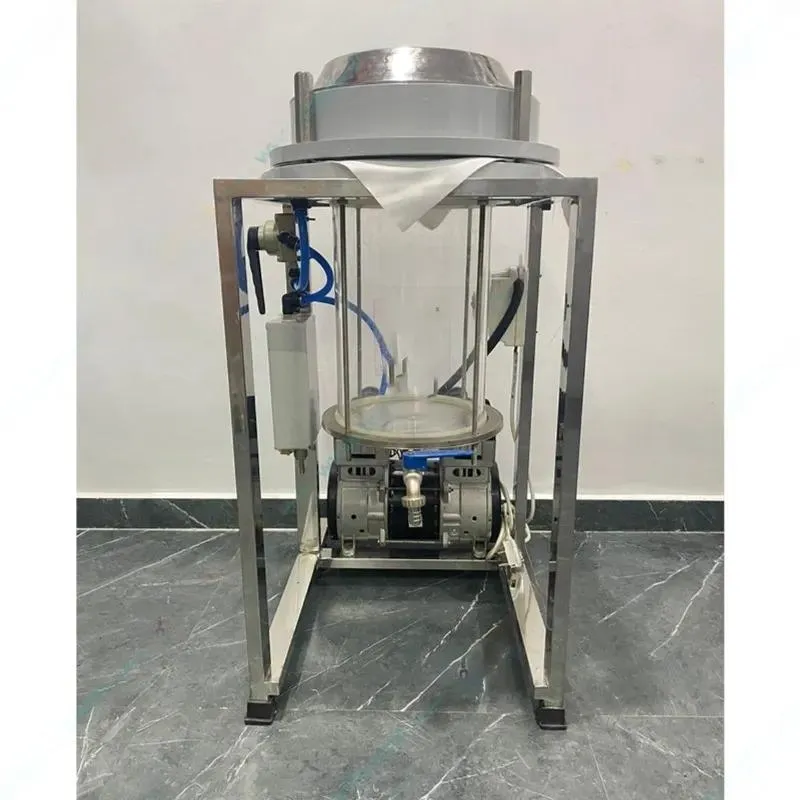

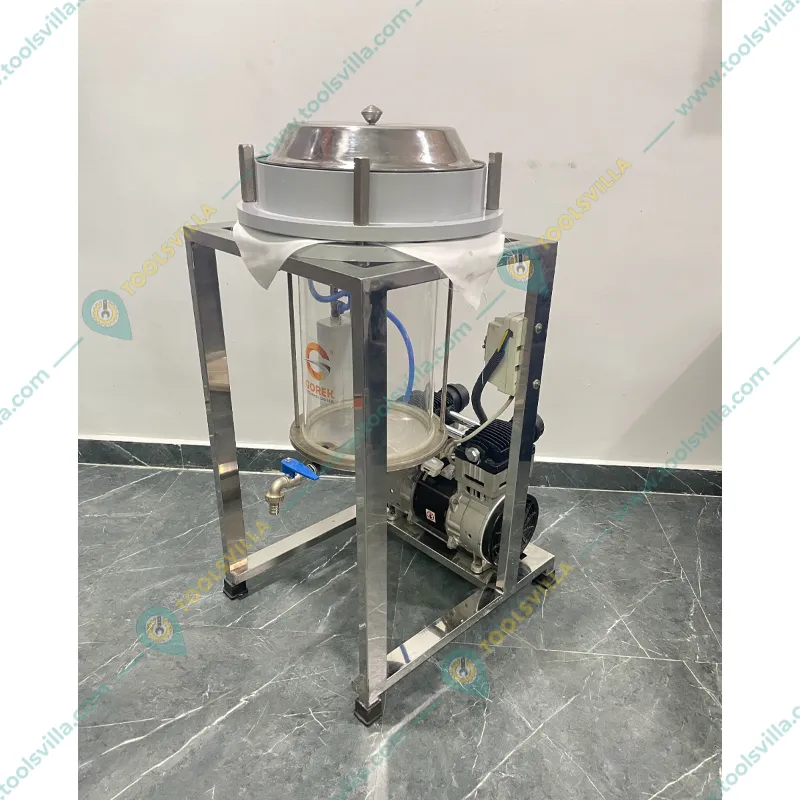

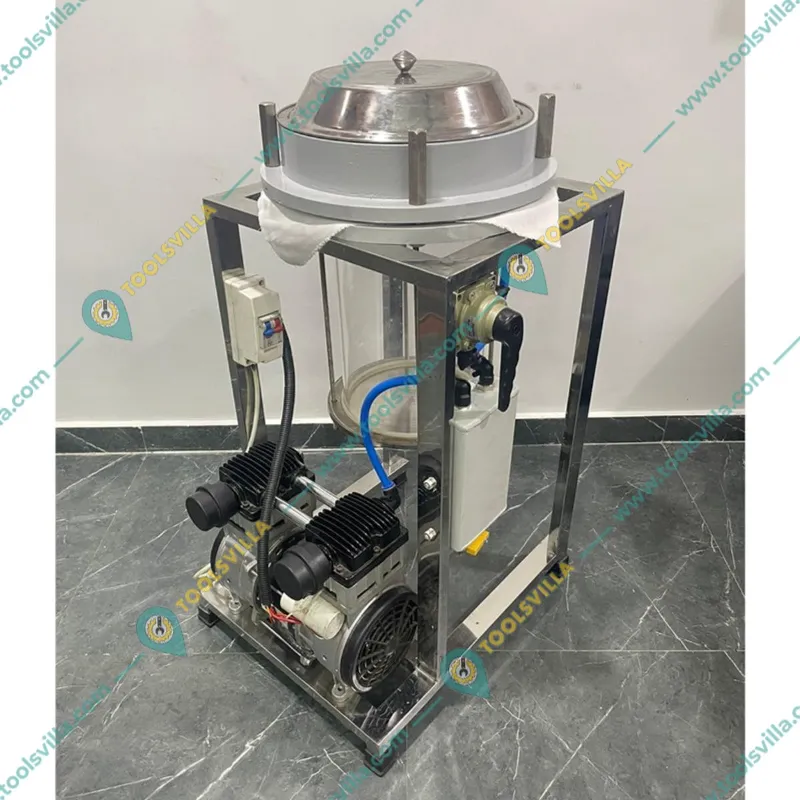

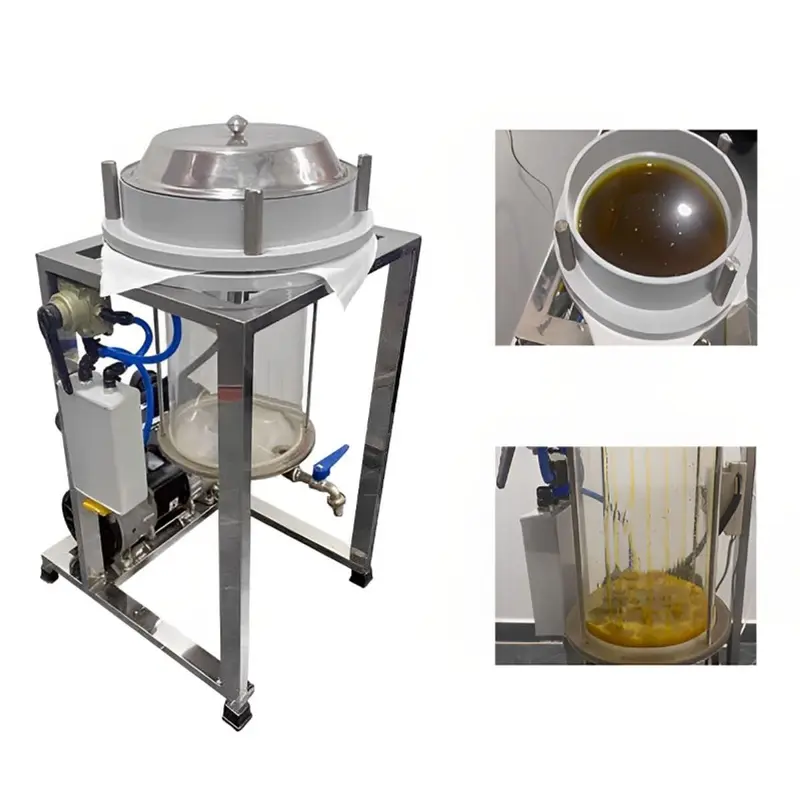

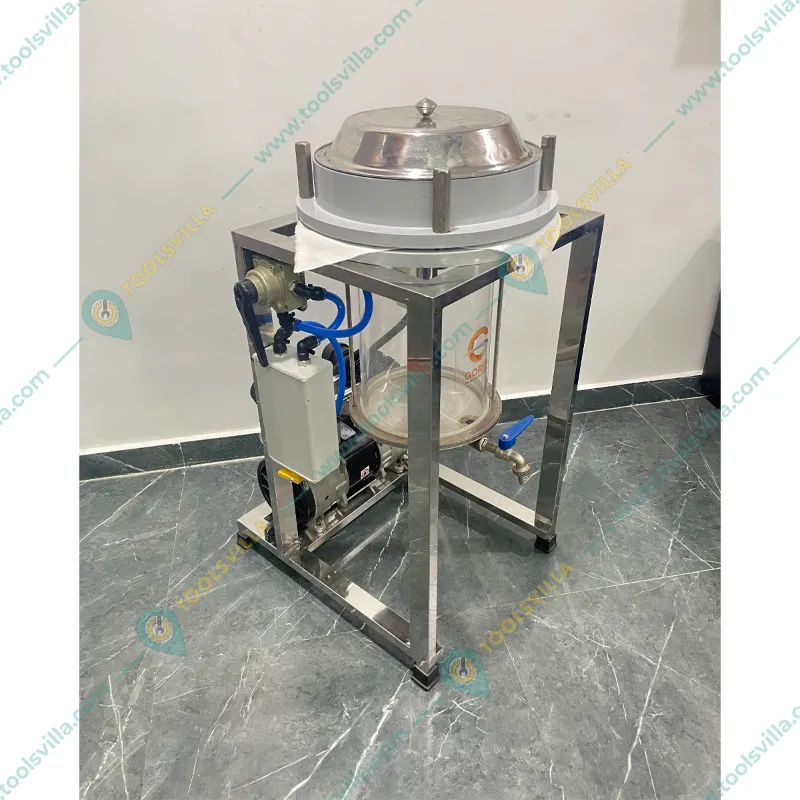

Gorek Commercial Vacuum Oil Filter/Expeller Machine 2HP, 20-25 kg/hr Filtration Capacity with 1 Year Warranty
SKU: RD-GT-20231006
₹60799 (Including GST)
Get extra ₹912 Discount (On Checkout)
Delivery By: May 24 - May 26
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Gorek SS Commercial Type Vacuum Oil Filter/Expeller Machine
2 HP Pump
20-25 kg/hr Filtration Capacity
Country of origin: India
Description
The Gorek Commercial Vacuum Oil Filter machine is a specialized equipment designed to clean and purify various types of oil. This machine utilizes vacuum dehydration and filtration process to remove contaminants from oil. This machine creates a suction pressure which results in the oil dripping from the filter paper and reaching the filtration area which doesn't allow the contaminants to pass through the filter paper. It is equipped with 2 HP motor with a filtration capacity of 20-25 kilograms per hour depending upon sediments and the machine is made using high quality stainless steel material which makes this machine perfectly suitable for commercial usage.
Features
:- High Oil Filtering Efficiency : The vacuum oil filter machine utilizes advanced technologies such as fine filters and vacuum evaporation to effectively remove impurities, particles, and moisture from the liquid.
- Easy to Operate : The operation of the vacuum oil filter machine is user-friendly. Operators simply need to load the oil into the equipment, turn on the power, and set appropriate temperature and vacuum parameters to initiate the filtering process.
- Versatility in Edible Oil Purification : The machine is suitable for purifying a wide range of edible oils, including but not limited to soybean oil, peanut oil, flax seed oil, sunflower oil, palm oil, rapeseed oil, coconut oil, and walnut oil. This versatility makes it an essential tool for various culinary applications.
- Durable Construction : The Gorek vacuum oil filter machine is typically constructed with high-quality materials that ensure durability and longevity under various operating conditions. This makes them suitable for commercial and heavy duty usage.
Specification
:- Brand: Gorek
- Material : Stainless Steel
- Model No : GT-VF20
- Pump Power : 2 HP
- Power Consumption : 1500W
- Voltage : 220 V
- Phase : Single Phase
- Automation Grade : Semi-Automatic
- Filler Type : Vacuum Suction Type
- Filtration Capacity : 20-25 kg/hr (depending on the sediment)
- Body Color : Silver
- Contact Part : Stainless Steel (304)
- Dimensions (L x B x H) : 48 x 56 x 84 cm
- Weight : 60 Kg (Approx.)
Accessories
:- Machine
- Filter cloths
- Sediment removal (Spoon Shovel)
- Hex nut-opener spanner
Warranty Parts : Motor only with T&C Apply
Note :
- Covered in Warranty : Manufacturing Defects
- Not Covered in Warranty : Physical Damage
- Suitable for extracting oil from edible seeds only.
Usage
:1. Preparation and Safety Checks :
- Safety Gear : Wear appropriate safety gear such as gloves and goggles to protect yourself from oil splashes.
- Location : Ensure the machine is placed on a stable surface, away from flammable materials and in a well-ventilated area.
2. Setup :
- Connect the Machine : Plug in the vacuum oil filter machine to a compatible power source. Ensure that the voltage is appropriate for the machine (usually indicated in the manual).
- Check Connections : Make sure that all hoses and connections are secure to prevent leaks.
3. Preliminary Checks :
- Oil Level : Ensure that the oil level in the machine's input tank is sufficient for the filtering process.
- Filter Inspection : Check the condition of the filter element. If it is dirty or worn out, replace it according to the manufacturer’s recommendations.
4. Operating the Machine :
- Turn On the Pump : Switch on the pump to start creating a vacuum. Allow it to run until the desired vacuum level is reached (as indicated on the gauge, if available).
- Start the Filtration Process : Open the valve to begin transferring oil from the collection tank through the machine. Monitor the flow rate to ensure it is consistent.
5. Monitoring the Process :
- Watch for Signs of Clogging : Keep an eye on the filter's pressure gauge. If the pressure begins to rise significantly, it may indicate that the filter is becoming clogged and needs to be cleaned or replaced.
- Observe the Output : As the filtered oil is collected in the output tank, monitor its clarity and quality. A noticeable difference in color and clarity compared to the input oil is a good sign.
6. Completion :
- Turn Off the Machine : Once the filtration process is complete, turn off the pump and any heating elements.
- Empty the Waste : Safely dispose of or recycle the contaminants collected in the filter and any residual oil left in the machine.
- Clean the Machine : Clean all components according to the manufacturer’s guidelines to maintain the machine’s performance for future use.
Maintenance :
- Vacuum Chamber : Periodically clean the vacuum chamber to prevent sludge buildup. Use appropriate cleaning agents that won’t harm the machine.
- Pump : Check for leaks and unusual noises. Ensure that the pump oil is at the correct level and replace it as needed.
- Hoses and Connections : Look for any signs of wear or damage that might hinder performance. Replace any faulty hoses immediately.
- Vacuum Levels : Regularly check the vacuum pressure to ensure optimal filtration performance. Adjust as necessary.
- Lubrication Points : Regularly lubricate all moving parts as specified in the manufacturer’s guidelines to reduce friction and wear.
- Oil Levels : Regularly check oil levels in the pump and other systems, refilling or replacing fluids as necessary.
- Professional Servicing : While many maintenance tasks can be performed in-house, it’s wise to schedule periodic professional servicing. Experts can conduct comprehensive inspections, perform any necessary repairs, and provide advanced insights into the machine’s performance.
Applications
:- Edible Oil Purification : The primary application of the Gorek Vacuum Oil Filter Machine is in the purification of different types of edible oils. This includes oils derived from seeds such as soybean, peanut, flaxseed, sunflower, palm, rapeseed, coconut, and walnut. The machine efficiently separates impurities like metal particles, carbon residues, colloids, suspended solids, and emulsified substances from newly produced oil.
- Food Processing Industry : In the food processing sector, maintaining high standards of oil quality is crucial. The Gorek Vacuum Oil Filter Machine plays a vital role in ensuring that oils used in food production are free from contaminants that could affect flavor or safety.
- Commercial Applications : In commercial kitchens and restaurants where large quantities of oil are used for frying and other cooking methods, this machine helps maintain oil quality over time, reducing waste and improving cost efficiency.
