Brand : Ferreterro

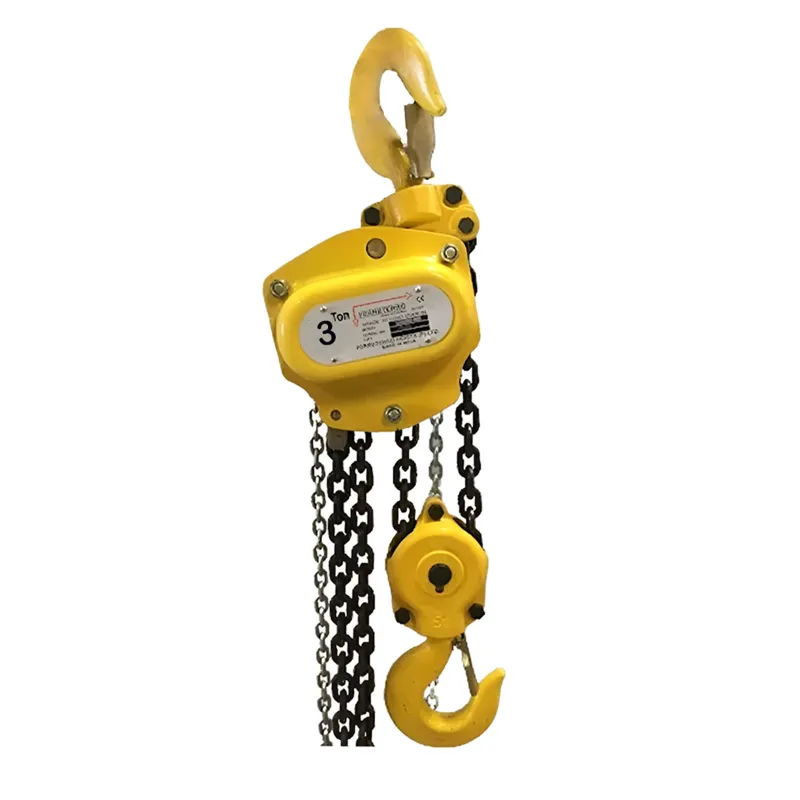

Ferreterro 3 Ton Double Fall Chain Pulley, 7.1mm Load Chain, Durable Casting & Forging, ISI Marked - LLD030-071 (Chain Length-3 Meter)
SKU : TI-F3-17778-C1
MRP : ₹15000
₹13600
9% OFF!
-
1
+
Get Extra ₹204 OFF on Prepaid Orders
Delivery By: Nov 7 - Nov 9
Chain Length
3 Meter
₹13600
In stock
4 Meter
₹14600
In stock
5 Meter
₹15500
In stock
6 Meter
₹16500
In stock
7 Meter
₹17500
In stock
8 Meter
₹18400
In stock
9 Meter
₹19400
In stock
10 Meter
₹20400
In stock
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Brand: Ferreterro, Model LLD030-071 Chain Pulley.
ISI marked with double falls for enhanced lifting.
Made from durable casting and forging materials.
Adjustable lifting height from 3m to 10m.
Weighs 44 kg, suitable for 3-ton loads at 6 meters.
Country of origin: India
Specification
  • Brand: Ferreterro
  • Weight (Approx.) : 24 kg
  • Load Capacity : 3 ton
  • Model Number: LLD030-071
  • Product Type: Chain Pulley
  • ISI Marked: Yes
  • Number of Falls: Double
  • Material: Casting and forging
  • Max Lifting Height: 3m - 10m
  • Load Chain Material: Alloy Steel
  • Chain Dia: 7.1mm
  • Hand Chain Diameter: 5mm
  • Chain Length : 3m - 10m
  • Weight at 3-meter Lift: 24 kg
  • Extra Weight per additional mtr lift: 3.15 kg
Description
The Ferreterro LLD030-071 Chain Pulley is designed for heavy-duty lifting tasks. It features a double fall chain system to distribute loads efficiently. Constructed from high-quality casting and forging materials, it ensures durability. The lifting height is adjustable between 3 and 10 meters to suit various applications. The load chain diameter is 7.1mm, providing strength and reliability. The hand chain diameter of 5mm allows smooth manual operation. It weighs 44 kg and can safely lift up to 3 tons at 6 meters.

Features

 :
  • All major Forging, Casting, Gears components and Chains produced in-house: Assured quality and reliability.
  • Spur Alloy steel gears with case hardening: Precision cut spur gears ensure smooth and efficient operation with minimal effort.
  • Fully pocketed S. G. Iron casting load chain wheel mounted on double ball bearing: Ensures accurate and smooth operation.
  • Alloy Steel Load Chain: Provides added strength, wear resistance, longer chain life.
  • Plated Hand Chain: Offers better aesthetic looks, increased rust protection and longer chain life.
  • Hand chain wheel cover: Minimizes jamming & slipping.
  • Brakes: Mechanical screw friction self-actuating disc load brake engages instantly for load holding. Two Ratchet Pawls for extra safety.
  • Load and suspension hook with Safety Latches: Prevents unintentional unhooking of the load.
  • Machined Guide rollers: Ensure smooth running of load chain.
  • Powder Coated finish: For added rust protection and better aesthetic look.
  • Easy to maintain: Chain block can be easily dismantled for maintenance with simple tools available in the workshop.
  • Over Load Test: Chain block tested for 150% of SWL as per IS 3832.

Applications

 :
  • Industrial lifting and material handling.
  • Construction site hoisting operations.
  • Maintenance and repair workshops.
  • Warehousing and storage facilities.
  • Assembly line and manufacturing processes.
