Brand: CRI
CRI 2 Hp Single Phase Openwell Submersible Pump With Control Panel, 22m Head, ISI Marked (CSS 14E) - 1 Year Warranty
SKU: TI-C2-20209
4694 people have viewed this recently
Delivery By: Dec 9 - Dec 11
MRP : ₹26221 ₹20299
23% OFF!
4694 people have viewed this recently Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹20299 (Including GST)
MRP : ₹26221
23% OFF!
Get Extra ₹304 OFF on Prepaid Orders
QTY :
-
1
+
Short Description

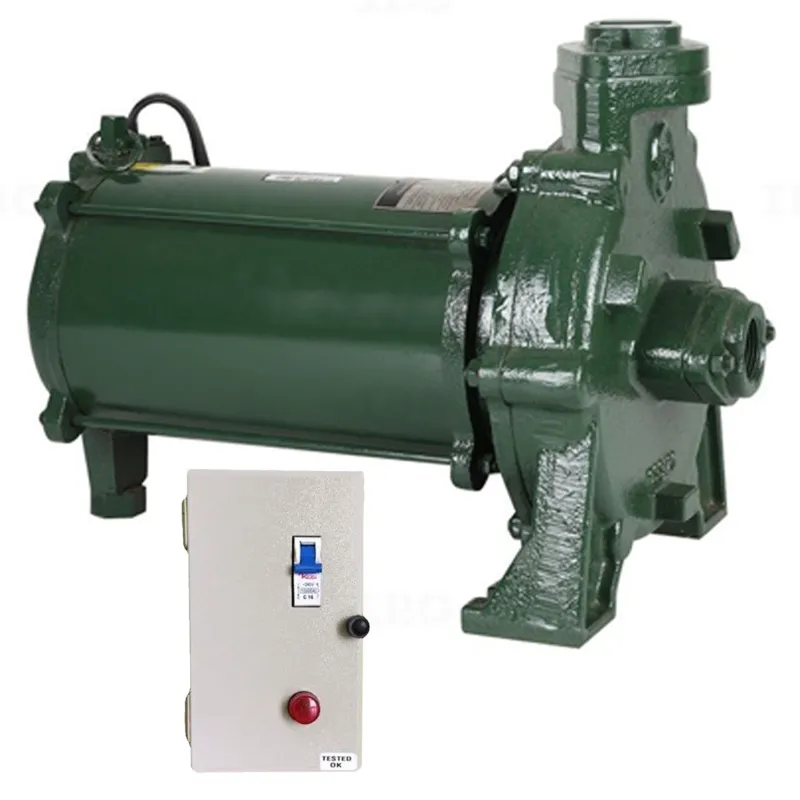

CRI 2 Hp Horizontal Openwell Submersible Pump (CSS 14E)
22m Max. Head, 600 LPM Max, Discharge
Control Panel is included with this openwell pump
1 Year Warranty
Country of origin: India
Specifications
- Brand: CRI
- Power : 2 hp
- Weight (Approx.) : 41 kg
- Flow Rate : 600 lpm
- Head : 22 meter
- Model No : CSS 14E
- Product Type : Horizontal Openwell Submersible Pump
- Brand : C.R.I.
- Wattage : 1.5 kW
- Electricity Connection : Single Phase
- Rated Voltage : 220 - 240V, 50Hz, A.C. Supply
- Head Range : 22 to 10 Meter (72.2 to 32.8 Feet)
- Discharge Range : 90 to 600 LPM (5400 to 36000 LPH)
- Outlet Size : 50 mm
- Type of Duty : S1 (Continuous)
- Speed : 2880 RPM
- ISI Marked : Yes
Material Of Construction :
- Motor Body : SS 304
- Impeller : Cast Iron/ Noryl/ SS 304/ High Tensile Brass
- Casing : Cast Iron
- Rear Cover : Cast Iron
- Shaft : SS 410
- Front Bracket : Cast Iron
- Shaft Seal : Nitrile Butyl Rubber
- Diaphragm : High Nitrile Rubber
Description
Openwell submersible pumps are a type of water pump that is completely submerged and sealed. These pumps are typically installed at the bottom of underground tanks or reservoirs and are connected to a power source for operation.
C.R.I. Horizontal Openwell Submersible Pumpsets are ideally suitable for Openwell / Tanks where a wide fluctuation of water level occur. The pumpset works underwater and rest at the bottom of the well or Tank. Hence suction and priming problem will not arise. The optimal design of impellers and diffusers enables the best possible hydraulic efficiency. Motor sealing is made by polymers, 'O' rings, oil seals and sand guard to avoid ingress of well water/sand into the motor. Pressure equalizing rubber diaphragm is provided to guard the motor from pressure and volume variation of water inside the motor.
Features
:- Rigid Construction
- Long Durability
- High Operating Efficiency
- Stainless Steel Motor body
- Motor is Designed With Higher Cooling Effect to Ensure the Life.
- Easy to Dismantle & Repair
Accessories
:- Control Panel
Applications
:- Openwell submersible pumps are used in many different industries. These include firefighting, offshore drilling rigs. They are also used in underground storage tanks and reservoirs, swimming pools, cooling water circulating systems, industrial irrigation.
WARRANTY :
- 1 Year Warranty
