Brand : KBS

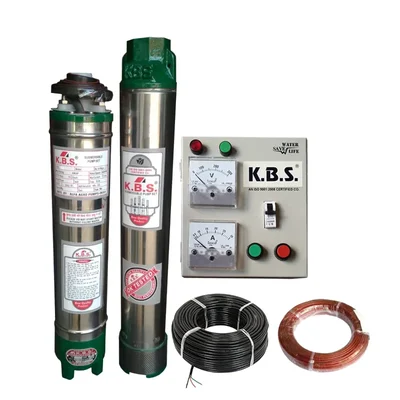

KBS 2Hp 12 Stage(4") V4 1Ph Water Cooled Submersible Pump With CP, 30m Submersible Cable, Safety Wire & 1 Year Warranty
SKU : TI-K2-12968
MRP : ₹20000
₹16200
19% OFF!
-
1
+
6 people have bought this recently
Get Extra ₹243 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
KBS 2 Hp 1 Phase 12 Stage Submersible Pump With Control Panel
100ft Max. Head, 150 LPM Max. Flow Rate
4 inch Bore, V4 Type
1 Year Warranty
SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.
Country of origin: India
Specification
Description
KBS 2Hp 12 Stage(4") V4 1Ph Water Cooled Submersible Pump With CP, 30m Submersible Cable, Safety Wire & 1 Year Warranty

Features :
  • Corrosion resistant stainless steel body
  • Specially designed for low voltage working
  • High Electrical and Mechanical efficiency
  • Higher heat dissipation
  • Dynamically balanced rotor and other rotating parts for uniform clearance
  • Specially designed bearing to withstand axial thrust loads
  • Designed for high voltage fluctuation
  • High efficiency, low power consumption.

Specification :
  • Product Type : Submersible Pump
  • Brand : KBS
  • Wattage : 1.5 kW
  • Supply Voltage : 200-220 Volt, 50 Hz, AC Power Supply
  • Electricity Connection : Single Phase
  • No Of Stages : 12 Stage
  • Pump Type : V4 Type
  • Suitable Bore Size : 4 inch (100 mm)
  • Cora : 4
  • Max. Head Range : 100 Ft. (31 Meter)
  • Max. Flow/Discharge Rate : 150 LPM (9000 LPH)
  • Pipe Size (Suction x Delivery) : 25 x 50 mm (1 x 2 inch)

Accessories :
  • Control Panel
  • 30 Meter Submersible Cable
  • Safety Wire

Material Of Construction :
  • Motor Body : Stainless Steel
  • Motor Rotor : Copper
  • Pump Bowl : Noryl (lvory)
  • Impeller : Noryl (lvory)
  • Motor Pipe : Stainless Steel
  • Bearing Bush : Leaded Bronze
  • Motor Shaft : SS-410
  • Thrust Bearing : Carbon Vs Stainless Steel
  • Stamping : CRNGO
  • Rotor : EC Grade Copper Conductor
  • Housing/Base/Connection Piece : CI (Grade FG-200/FG-220)
  • Suction/Outlet : CI (Grade FG-200/FG-220)
  • Diffuser : Noryl (Engineering Glass Filled)
  • Pump Shaft : SS-410
  • Pump Pipe : Stainless Steel

Application :
  • Drinking water supply. Domestic & community water supply.
  • Drip irrigation, Sprinkler irrigation and gardening.
  • Housing-Complexes, Hospitals, High rise building.
  • Fire fighting, Landscaping, Fountains, Service stations.
  • De-watering of mines, Cooling water circulation and Booster application.

Warranty :
  • 1 Year WARRANTY on manufacturing defects only.

Warranty Terms :
  • Dry Run Accidental Damages Are not covered in the warranty
  • For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
  • You have to send the product to the sellers warehouse.
  • Buyer has to bear the courier charges of both side for sending the product.
