Brand : ALGO

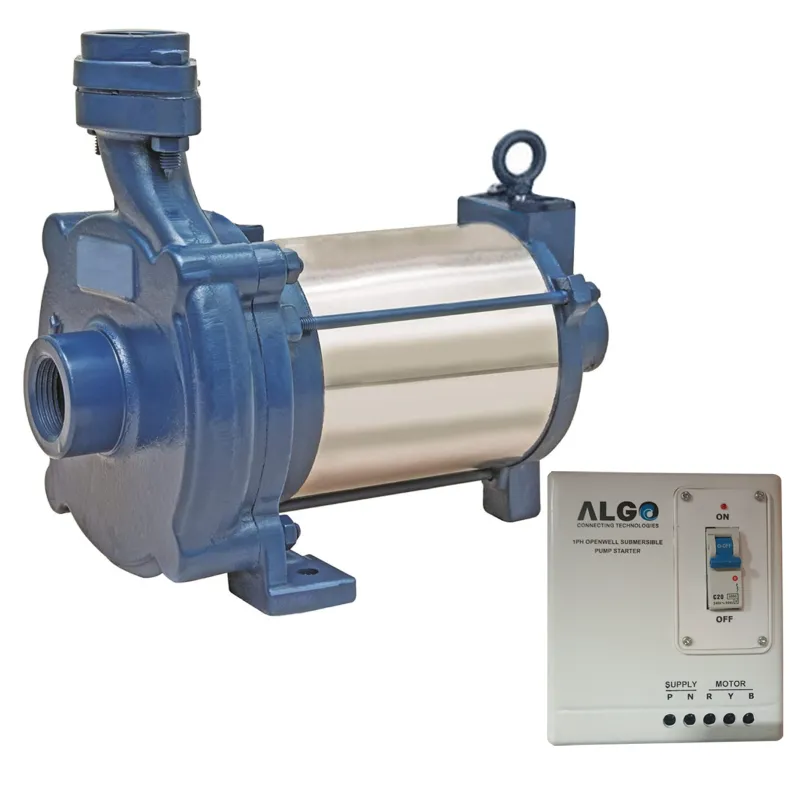

Algo 2 HP 1Phase HORA+ Series Openwell Submersible Pump With CP, Copper Rotor, 40x40mm - 1 Year Warranty (HPC-13/20SG)
SKU : TI-A2-17506
MRP : ₹18000
₹14800
18% OFF!
-
1
+
676 people have viewed this recently
Get Extra ₹222 OFF on Prepaid Orders
Delivery By: Jun 19 - Jun 21
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Algo 2 HP Openwell Pump With Control Panel(HPC-13/20SG)
Copper Rotor, Single Phase
35M Max Head, 210 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Specification
  • Brand: ALGO
  • Power : 2 hp
  • Weight (Approx.) : 32 kg
  • Flow Rate : 210 lpm
  • Head : 35 meter
  • Model No : HPC-13/20SG
  • Series :  HORA+ Series
  • Product Type : Openwell Pump
  • Brand : Algo
  • Wattage : 1.5 kW
  • Electricity Connection : Single Phase
  • Rated Voltage : 230 Volt, 50 Hz
  • Head Range : 12 to 35 Meter (39.4 to 114.8 Feet)
  • Discharge Range : 210 to 90 LPM
  • Pipe Size (Suction x Delivery) : 40x40 mm
  • Rotor Material : Copper
  • Duty : S1 (Continuous)
  • Insulation Class : B Class
  • Protection : IP 58
  • Max. Liquid Temperature : 40°C

Materials Of Construction :
  • Pump Casing & Bracket : Cast Iron
  • Motor Body  : Cast Iron/SS
  • Impeller : SS/Noryl/Cast Iron
  • Shaft : SS 410
  • Seal : Oil Seal
  • Bearing : Thrust Bearing
Description
An openwell submersible pump is a type of pump that is submerged in water. It is typically placed inside the water source, such as a reservoir or tank, and draws water from the source using suction. They work underwater and rest at the bottom of the well. As openwell submersible pumps push fluid rather than pull it, they use a lot less power.

Features

 :
  • Light Weight
  • Copper rotor
  • Excellent quality
  • Easy to install
  • Suitable to lift water from lower tank, Sump, Gardening, Pressure Boost, Curing

Accessories

 :
  • Control Panel
  • 5 Meter Long Cable

Applications

 :
  • Residential
  • Sprinkler System
  • Irrigation
  • Fountain
  • Construction

WARRANTY :
  • 1 Year Warranty on Manufacturing Defects Only
