Brand : Kirloskar

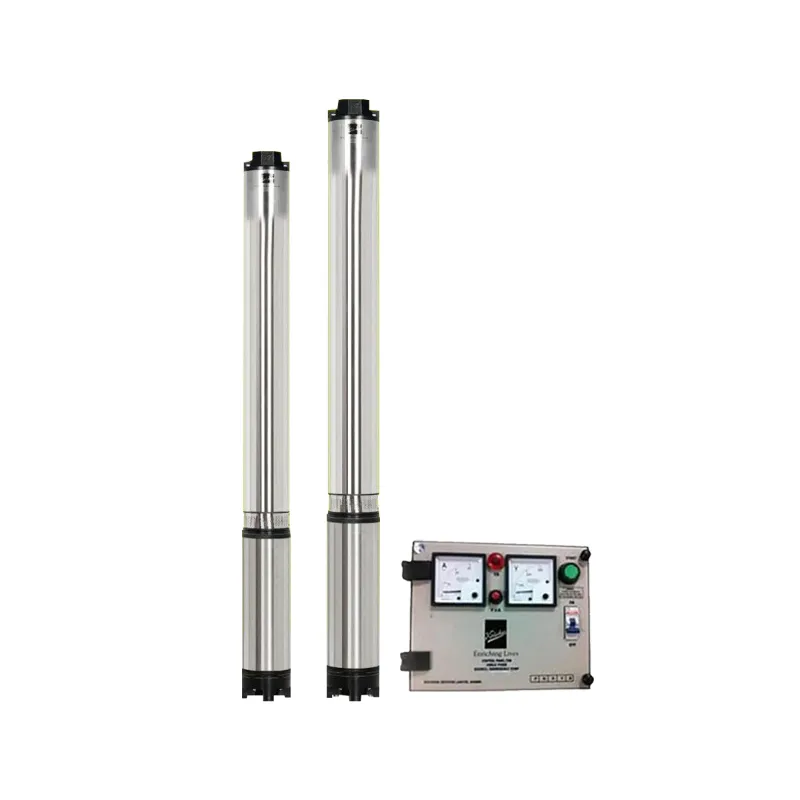

Kirloskar 2HP 16 Stage(4 inch) 1Ph Water Cooled Submersible Pump With CP, 427ft Head - 1 Year Warranty (KS4C-2016 - CP)
SKU : TI-KK-13048
MRP : ₹44800
₹29500
34% OFF!
-
1
+
Get Extra ₹443 OFF on Prepaid Orders
Delivery By: Jun 21 - Jun 23
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar (KS4C-2016 - CP) 2.0 HP 1 Phase Submersible Pump With CP
16 Stage, 38 mm Outlet
130M Max. Head
5400 LPH Max. Discharge
1 Year Warranty
Country of origin: India
Specification
Description
Kirloskar 2HP 16 Stage(4 inch) 1Ph Water Cooled Submersible Pump With CP, 427ft Head - 1 Year Warranty (KS4C-2016 - CP)

Features :
  • Wide Voltage Design : The motor is designed to withstand wide voltage variations which reduces the chances of motor burning at low voltage
  • High Efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings
  • Dynamically Balanced Rotating Parts : Minimum vibration protects components from damage during the operation, thus ensures consistent performance over longer time period as concentricity is maintained
  • Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9 % Electro Grade Copper Rotor and Winding Wires for longer and trouble free life
  • Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years
  • Wide Voltage Motor Designs with Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 99.9% pure Electro Grade Copper rotor performs well in low voltage with minimum discharge drops and suitable for wide voltage applications
  • CED – Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated

Specification :
  • Model No. : KS4C-2016 - CP
  • Product Type : Borewell Submersible Pump
  • Brand : Kirloskar
  • Rated Voltage : 220 Volt, 50 Hz, AC Power Supply
  • Electricity Connection : Single Phase
  • Rated Current : 13.8 Amp.
  • Wattage : 1.50 kW
  • No Of Stages : 16
  • Outlet Size : 38 mm
  • Borewell Size : 100 mm (4 inch)
  • Max. Head : 130 Meter (427 Feet)
  • Max. Discharge : 90 LPM (5400 LPH)
  • With Control Panel : Yes
  • Winding Material : Copper

Material Of Construction :
  • Pump Housing : Stainless Steel
  • Pump Shaft : Stainless Steel
  • Motor Housing : Stainless Steel
  • Motor Shaft : Stainless Steel
  • Thrust Bearing : Carbon + Stainless Steel
  • Motor/Pump Bushes : Gun Metal
  • Impeller : Noryl
  • Diffuser : Noryl
  • NRV : Cast Iron
  • Suction : Cast Iron

Areas Of Application :
  • Domestic and community water supply
  • Rural water supply
  • Gardening and small farm irrigation
  • Construction site
  • Water supplies for high rise building

Warranty :
  • 1 Year Onsite Warranty
