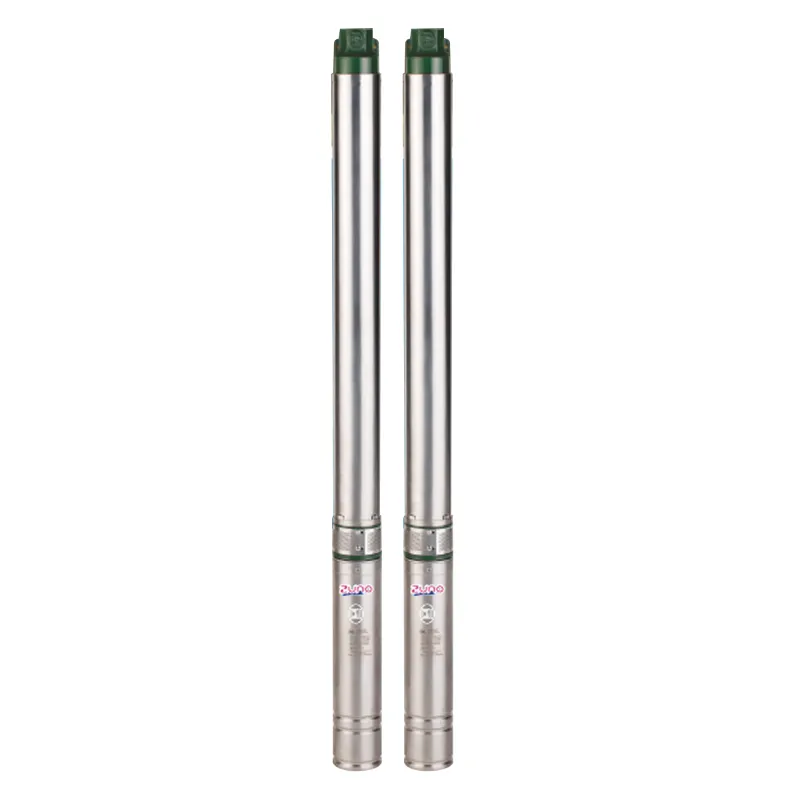

CRI 2Hp 25 Stage 4"(V4) 1Phase Water Filled Submersible Pump, 183m Head (ZUNO, CRI4R-2N/25)

Brand : CRI

CRI 2Hp 25 Stage 4"(V4) 1Phase Water Filled Submersible Pump, 183m Head (ZUNO, CRI4R-2N/25) - 1 Year Warranty

SKU : TB-CR-33647

MRP : ₹27647

₹21599

22% OFF!

Get Extra ₹324 OFF on Prepaid Orders

Delivery By: Jun 20 - Jun 22

Add to Cart

Buy Now

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

CRI 2 Hp 25 Stage V4 Borewell Submersible Pump
Water Cooled Technology
183m Max. Head, 54 LPM Max. Discharge
1 Year Warranty

Country of origin: India

Specification

Brand: CRI
Power : 2 hp
Weight (Approx.) : 25.19 kg
Flow Rate : 54 lpm
Head : 183 meter

Model No. : CRI4R-2N/25
Series : ZUNO
Wattage : 1.5 kW
Electricity Connection : Single Phase
Rated Voltage : 220 Volt, 50 Hz, AC Power Supply
No. of Stages : 25
Outlet Size : 32 mm
Head Range : 183 to 65 Meter (600 to 213 Feet)
Discharge Range : 0 to 54 LPM (0 to 3240 LPH)
Cooling Type : Oil Cooled
Borewell Size : 100 mm (4 inch)
Star Rating : 4 Star
Winding Material : Copper
Speed : 2850 RPM
Degree of Protection : IP 58
Direction of Rotation : Counter Clockwise from Driving End
Minimum Cooling Flow Along the Motor : 0.15m/sec
Type of Duty : S1 (Continuous)
Method of Starting : Capacitor Start Capacitor Run/CSR
Maximum Start Per Hour : 20 Times

WARRANTY :

1 Year Warranty

Description

C.R.I. Zuno 4 inch(100 mm) Borewell submersible motors are pre-filled with non-toxic liquid for best performance in low voltage and high efficiency. The pump is firmly coupled to a submersible electric motor which operates submerged beneath the surface of water. The optimal design of impeller and diffuser enables the best possible hydraulic efficiency. Built-in check valve prevents back flow and reduces the risk of water hammering
