CRI 2 Hp 25 Stage Borewell Submersible Pump
Oil Cooled Technology
183m Max. Head, 54 LPM Max. Discharge
1 Year Warranty
Oil Cooled Technology
183m Max. Head, 54 LPM Max. Discharge
1 Year Warranty
Brand : CRI

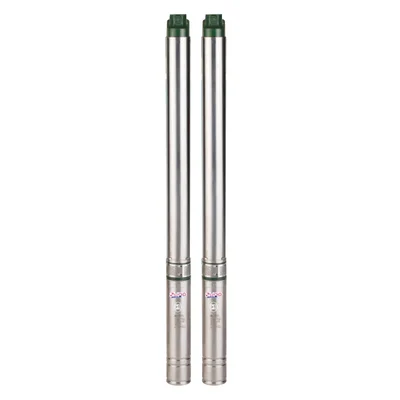

CRI 2Hp 25 Stage 4"(V4) 1Phase Oil Filled Submersible Pump, 183m Head (ZUNO, CRI4R-2N/25) - 1 Year Warranty
SKU : TB-CR-33639
MRP : ₹26303
₹20549
22% OFF!
-
1
+
532 people have viewed this recently
Delivery By: Aug 24 - Aug 26
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Country of origin: India
Specification
- Brand: CRI
- Power : 2 hp
- Weight (Approx.) : 31 kg
- Flow Rate : 54 lpm
- Head : 183 meter
- Model No. : CRI4R-2N/25
- Series : ZUNO
- Wattage : 1.5 kW
- Electricity Connection : Single Phase
- Rated Voltage : 220 Volt, 50 Hz, AC Power Supply
- No. of Stages : 25
- Outlet Size : 32 mm
- Head Range : 183 to 65 Meter (600 to 213 Feet)
- Discharge Range : 0 to 54 LPM (0 to 3240 LPH)
- Cooling Type : Oil Cooled
- Borewell Size : 100 mm (4 inch)
- Star Rating : 4 Star
- Winding Material : Copper
- Speed : 2850 RPM
- Degree of Protection : IP 58
- Direction of Rotation : Counter Clockwise from Driving End
- Minimum Cooling Flow Along the Motor : 0.15m/sec
- Type of Duty : S1 (Continuous)
- Method of Starting : Capacitor Start Capacitor Run/CSR
- Maximum Start Per Hour : 20 Times
WARRANTY :
- 1 Year Warranty
Description
C.R.I. Zuno 4 inch(100 mm) Borewell submersible motors are pre-filled with non-toxic liquid for best performance in low voltage and high efficiency. The pump is firmly coupled to a submersible electric motor which operates submerged beneath the surface of water. The optimal design of impeller and diffuser enables the best possible hydraulic efficiency. Built-in check valve prevents back flow and reduces the risk of water hammering
