Brand : Kirloskar

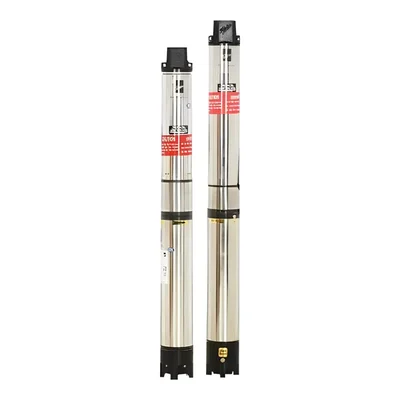

Kirloskar 2HP 10 Stage(4 inch) Three Phase Water Cooled Submersible Pump, 210ft Max. Head - 1 Year Warranty (KS4HF-2010)
SKU : TI-KK-13359
MRP : ₹44100
₹28899
34% OFF!
-
1
+
948 people have viewed this recently
Get Extra ₹433 OFF on Prepaid Orders
Delivery By: Jul 17 - Jul 19
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar 2.0 HP Three Phase Borewell Submersible Pump
0-240 LPM Discharge Rate
64 to 12 Meters Head Range
4 Inch (100 mm) Boring Size
1 Year Warranty
Country of origin: India
Specification
  • Brand: Kirloskar
  • Power : 2 hp
  • Weight (Approx.) : 28 kg
  • Flow Rate : 240 lpm
  • Head : 64 meter
  • Model No. : KS4HF-2010
  • Product Type : Borewell Submersible Pump
  • Brand : Kirloskar
  • Power Source : Corded Electric
  • Wattage : 1.50 kW
  • Power Source : 415V, 50 Hz, AC Power Supply
  • Electricity Connection : Three Phase
  • Type Of Cooling : Water Filled
  • Rated Current : 4.8 Amp
  • Borewell Size : 4 Inch (100 mm)
  • Outlet Size : 50 mm
  • No. of Stages : 10
  • Max. Head : 64 Meters (210 Feet)
  • Max. Discharge Rate : 240 LPM (14400 LPH)
  • Insulation : B Class
  • Protection : IP 68
  • Winding Material : Copper

Materials of Construction :
  • Pump Housing : Stainless Steel
  • Pump Shaft : Stainless Steel
  • Motor Housing : Stainless Steel
  • Motor Shaft : Stainless Steel
  • Thrust Bearing : Carbon + Stainless Steel
  • Motor/Pump Bushes : Gun Metal
  • Impeller : Noryl
  • Diffuser : Noryl
  • Non Return Valve (NRV) : Cast Iron
  • Suction : Cast Iron
Description
A water-cooled borewell submersible pump is designed to operate completely submerged in a borewell, with its motor cooled by the surrounding water, ensuring efficient and continuous pumping from deep underground sources. These are primarily used for efficient and reliable extraction of water from deep borewells for domestic, agricultural, and industrial water supply.

Features

 :
  • Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations from 280 to 440 volts and reduces motor burning in low voltage.
  • High efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
  • Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
  • Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life.
  • Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
  • Wide Voltage Motor Designs with 100% Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications.
  • CED-Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated.

Applications

 :
  • Domestic and community water supply.
  • Rural water supply
  • Gardening and small farm irrigation.
  • Construction site.
  • Water supplies for high rise building.

Warranty :
  • One year on site Warranty
