Brand:  Kirloskar

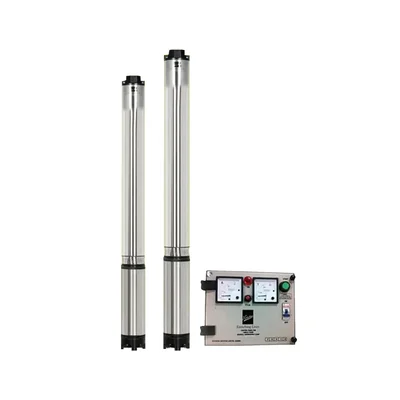

Kirloskar 2HP 30 Stage(4 inch) 1Phase Water Cooled Submersible Pump With CP, 689ft Head (KS4AN-2030 CP)- 1 Year Warranty

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Kirloskar (KS4AN-2030 CP) 2.0 HP 1 Phase Submersible Pump With CP

30 Stage, 32 mm Outlet

210M Max. Head

2880 LPH Max. Discharge

1 Year Warranty

Country of origin: India

Description

Kirloskar 2HP 30 Stage(4 inch) 1Phase Water Cooled Submersible Pump With CP, 689ft Head (KS4AN-2030 CP)- 1 Year Warranty

Features :

• Wide Voltage Design : The motor is designed to withstand wide voltage variations which reduces the chances of motor burning at low voltage
• High Efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings
• Dynamically Balanced Rotating Parts : Minimum vibration protects components from damage during the operation, thus ensures consistent performance over longer time period as concentricity is maintained
• Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9 % Electro Grade Copper Rotor and Winding Wires for longer and trouble free life
• Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years
• Wide Voltage Motor Designs with Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 99.9% pure Electro Grade Copper rotor performs well in low voltage with minimum discharge drops and suitable for wide voltage applications
• CED – Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated

Specification :

• Model No. : KS4AN-2030 CP
• Product Type : Borewell Submersible Pump
• Brand : Kirloskar
• Rated Voltage : 220 Volt, 50 Hz, AC Power Supply
• Electricity Connection : Single Phase
• Rated Current : 13.8 Amp.
• Wattage : 1.50 kW
• No Of Stages : 30
• Outlet Size : 32 mm
• Borewell Size : 100 mm (4 inch)

• Max. Head : 210 Meter (689 Feet)
• Max. Discharge Rate : 48 LPM (2880 LPH)
• With Control Panel : Yes
• Winding Material : Copper

Material Of Construction :

• Pump Housing : Stainless Steel
• Pump Shaft : Stainless Steel
• Motor Housing : Stainless Steel
• Motor Shaft : Stainless Steel
• Thrust Bearing : Carbon + Stainless Steel
• Motor/Pump Bushes : Gun Metal
• Impeller : Noryl
• Diffuser : Noryl
• NRV : Cast Iron
• Suction : Cast Iron

Areas Of Application :

• Domestic and community water supply
• Rural water supply
• Gardening and small farm irrigation
• Construction site
• Water supplies for high rise building

Warranty :

• 1 Year Warranty

Specifications

 :

• Brand: Kirloskar
• Power : 2 hp
• Weight (Approx.) : 42 kg
• Flow Rate : 48 lpm
• Head : 210 meter
