Brand : Crompton

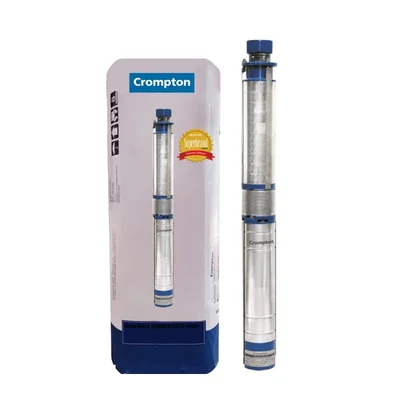

Crompton 2 HP 8 Stage 4 inch Water Filled 1Phase Borewell Submersible Pump With 1 Year Warranty (4W8RA2C-50)
SKU : DC-CM-20220464
MRP : ₹25000
₹19500
22% OFF!
-
1
+
3564 people have viewed this recently
Get Extra ₹293 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Crompton 2 Hp V4 1Ph Borewell Submersible Pump
49m Max. Head
150 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Specification
Description
Crompton 2 HP 8 Stage 4 inch Water Filled 1Phase Borewell Submersible Pump With 1 Year Warranty (4W8RA2C-50)

Description :
  • A submersible pump is a device which has a hermetically sealed motor close-coupled to the pump body. Electric submersible pumps are multistage centrifugal pumps operating in a vertical position. Liquids, accelerated by the impeller, lose their kinetic energy in the diffuser, where a conversion of kinetic to pressure energy takes place. This is the main operational mechanism of radial and mixed flow pumps. Multiple stage borewell submersible pumps are typically lowered down a borehole, and most typically used for residential, commercial, municipal and industrial water extraction

Features :
  • High Grade Electrical Stamping : Reduces electrical losses and improves pump efficiency.
  • High Thrust Capacity : Specially designed thrust bearing ensures highest reliability.
  • In Built Check Valve : In built check valve prevents pump parts from damage due to sudden back pressure.
  • High Quality Noryl : High quality virgin noryl components give longer life.
  • Easy for Maintenance : Simple construction, easily replaceable wear and tear parts.

Specifications :
  • Model No. : 4W8RA2C-50
  • Product Type : Borewell Submersible Pump
  • Brand : Crompton
  • Wattage : 1.5 kW
  • Electricity Connection : Single Phase
  • Motor Type : Water Filled
  • No. of Stages : 8
  • Outlet Size : 50 mm
  • Borewell Size : 10 Cm (4 inch)
  • Borewell Type : V4
  • Max. Head Range : 82 to 161 feet (25-49 meters)
  • Max. Flow Rate : 150 to 30 LPM (9000 to 1800 LPH)
  • Winding Material : Copper

Suitable For :
  • 4 inch (100 mm) Boring

Material of Construction :
  • Diffuser : Noryl
  • Impeller : Noryl/Delrin
  • Pump Shaft : Stainless Steel-SS410
  • NRV Body : Cast Iron-Grade FG 200
  • Motor Body : Stainless Steel-SS202/SS304
  • Pump Jacket : Cast Iron-Grade FG 200
  • Upper Housing, Motor Base : Stainless Steel-SS202
  • Bush : Bronze LTB-4
  • Motor Shaft : Stainless Steel-SS420
  • Stamping : CRNGO-M47
  • Thrust Bearing : SS Vs Zytel / SS Vs Carbon
  • Strainer : Stainless Steel-SS202
  • Fastener : Stainless Steel-SS410
  • Sealing : Oil seal

Applications :
  • Domestic water supply, Hotels, Buildings, Apartments, Hospitals ,Gardening
  • Small farms, agriculture, Public water supply schemes
  • Lift Irrigation Schemes
  • Drip and Sprinkler Irrigation Schemes
  • Booster application
  • Circulation, Ornamental fountain installation & Air- conditioning plants etc.

Warranty :
  • 1 Year WARRANTY on manufacturing defects only.
