Brand : Kirloskar

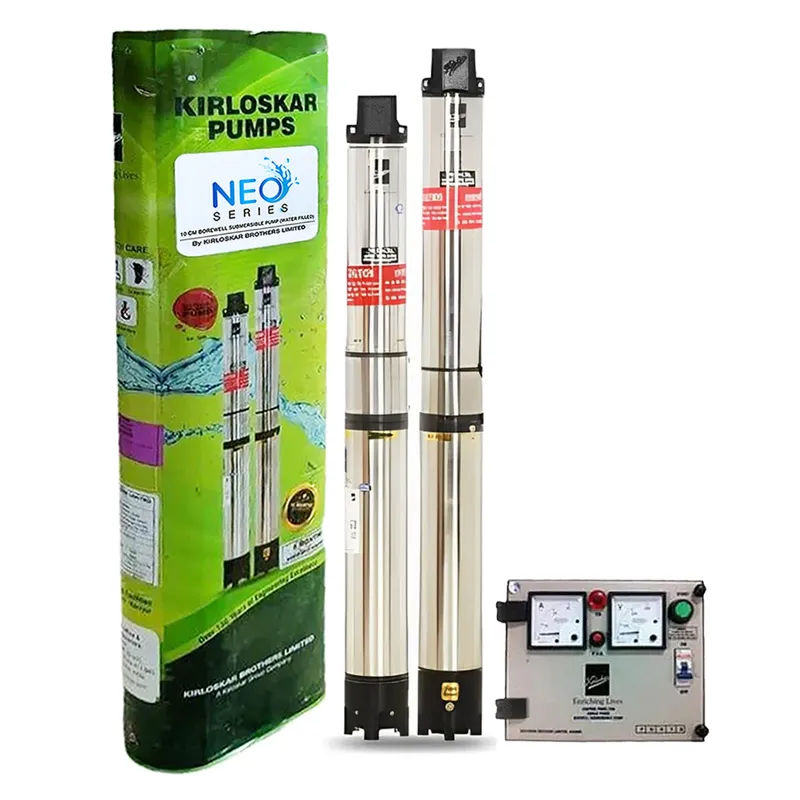

Kirloskar 2Hp 25 Stage(4 inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-2025 CP) - 1.6 Years Warranty
SKU : TI-K2-26212
MRP : ₹35000
₹30999
11% OFF!
-
1
+
1023 people have viewed this recently
Get Extra ₹465 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar 2 Hp 1Ph Borewell Submersible Pump (NEO 30-2025 CP) With Control Panel
175 meters Head Range
48 LPM Discharge Rate
1.6 Years Warranty
Country of origin: India
Specification
  • Brand: Kirloskar
  • Power : 2 hp
  • Weight (Approx.) : 33 kg
  • Flow Rate : 48 lpm
  • Head : 175 meter
  • Model No. : NEO 30-2025 CP
  • Product Name : Borewell Submersible Pump
  • With Control Panel : Yes
  • Voltage : 180 - 240 Volts, 50 Hz, AC Power Supply
  • Electricity Connection : Single Phase
  • Motor Wattage : 1.5 kW
  • Rated Current : 15 Amp
  • Cooling Type : Water Filled
  • Insulation : Class B
  • Protection : IP 68
  • No. of Stages : 25
  • Outlet Size : 32 mm
  • Borewell Size : 100 mm (4 inch)
  • Max. Head : 574 Feet (175 meters)
  • Max. Discharge Rate : 48 LPM (2880 LPH)
  • Winding Material : Copper

Material Of Construction :
  • Pump Housing : Stainless Steel
  • Pump Shaft : Stainless Steel
  • Motor Housing : Stainless Steel
  • Motor Shaft : Stainless Steel
  • Thrust Bearing : Carbon + Stainless Steel
  • Motor/Pump Bushes : Gun Metal
  • Impeller : Noryl
  • Diffuser : Noryl
  • NRV : Cast Iron
  • Suction : Cast Iron
Description
A pump that can be completely submerged in water is a submersible pump, often known as an electric submersible pump. The pump's body and motor are tightly connected and hermetically sealed. Water is forced to the surface by a submersible pump, which transforms rotational energy into kinetic energy and pressure energy.

Features

 :
  • Wide Voltage Range Operability : The voltage range is 180 - 240 Volts. Protects the motor from burning due to lower/higher voltage
  • High Efficiency and Energy-saving Design : Higher output, lesser power consumption
  • Dynamically Balanced Rotating Parts : Resulting in lesser vibrations and longer trouble-free operation
  • Longer and Trouble-Free Life : High-grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, and 99.9 % pure Copper Winding Wires for longer and trouble-free life.
  • Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating, and facilitates smoother and trouble-free operation for the years.
  • Sand Fighter Designs : Innovative Sand Fighter Designs restricts the entry of sand in motors, protect the pump and motor bushes to perform well in sandy borewells, and increase the pump set life.
  • CED - Cathodic Electro Deposition Coating : Better resistance against corrosion
  • Nationwide Service Network : Easy availability of spares and prompt after-sales services through nationwide company Authorised Service Centers

Accessories

 :
  • Control Panel

Applications

 :
  • Domestic and community water supply
  • Rural water supply
  • Gardening and small farm irrigation
  • Construction site
  • Water supplies for high rise building

Warranty :
  • 1.6 Years on site Warranty
