Brand: Crompton

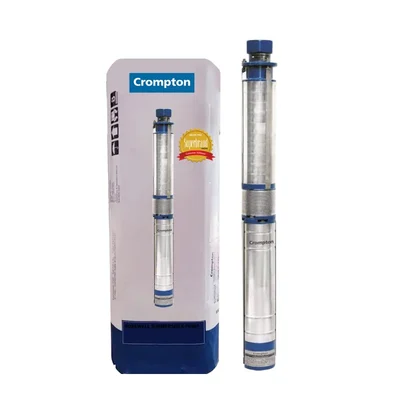

Crompton 2 HP 10 Stage 4 inch Water Filled 1Phase Borewell Submersible Pump with 1 Year Warranty (4W10RA2C-50)
SKU: DC-CM-20220463
2937 people have viewed this recently
Delivery By: Dec 25 - Dec 27
MRP : ₹29279 ₹21999
25% OFF!
2937 people have viewed this recently Delivery By: Dec 25 - Dec 27 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹21999 (Including GST)
MRP : ₹29279
25% OFF!
Get Extra ₹330 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Crompton 2 Hp 1Ph Borewell Submersible Pump (4W10RA2C-50)
61m Max. Head
150 LPM Max. Discharge
10Cm Borewell Size
1 Year Warranty
Country of origin: India
Specifications
- Brand: Crompton
- Power : 2 hp
- Weight (Approx.) : 18 kg
- Flow Rate : 150 lpm
- Head : 61 meter
- Model No. : 4W10RA2C-50
- Product Type : Borewell Submersible Pump
- Wattage : 1.5 kW
- Electricity Connection : Single Phase
- Motor Type : Water Filled
- No. of Stages : 10
- Max. Head Range : 102 to 200 Feet (31 to 61 meters)
- Outlet Size : 50 mm
- Installation Type : Vertical
- Discharge Rate : 150 to 30 LPM (9000 to 1800 LPH)
- Borewell Size : 10 Cm (4 inch)
- Winding Material : Copper
Suitable For :
- 4 inch (100 mm) Boring
Material Of Construction :
- Diffuser : Noryl
- Impeller : Noryl/Delrin
- Pump Shaft : Stainless Steel-SS410
- NRV Body : Cast Iron-Grade FG 200
- Motor Body : Stainless Steel-SS202/SS304
- Pump Jacket : Cast Iron-Grade FG 200
- Upper Housing, Motor Base : Stainless Steel-SS202
- Bush : Bronze LTB-4
- Motor Shaft : Stainless Steel-SS420
- Stamping : CRNGO-M47
- Thrust Bearing : SS Vs Zytel / SS Vs Carbon
- Strainer : Stainless Steel-SS202
- Fastener : Stainless Steel-SS410
- Sealing : Oil seal
Description
A submersible pump is a device which has a hermetically sealed motor close-coupled to the pump body. Electric submersible pumps are multistage centrifugal pumps operating in a vertical position. Liquids, accelerated by the impeller, lose their kinetic energy in the diffuser, where a conversion of kinetic to pressure energy takes place. This is the main operational mechanism of radial and mixed flow pumps. Multiple stage borewell submersible pumps are typically lowered down a borehole, and most typically used for residential, commercial, municipal and industrial water extraction
Features
:- High Grade Electrical Stamping : Reduces electrical losses and improves pump efficiency.
- High Thrust Capacity : Specially designed thrust bearing ensures highest reliability.
- In Built Check Valve : In built check valve prevents pump parts from damage due to sudden back pressure.
- High Quality Noryl : High quality virgin noryl components give longer life.
- Easy for Maintenance : Simple construction, easily replaceable wear and tear parts.
Applications
:- Domestic water supply, Small farms, agriculture
- Hotels, Buildings, Apartments, Hospitals ,Gardening
- Public water supply schemes & Lift Irrigation Schemes
- Drip and Sprinkler Irrigation Schemes
- Booster application
- Circulation, Ornamental fountain installation & Air- conditioning plants etc.
Warranty :
- 1 Year Warranty on manufacturing defects only.
