Brand: V-Guard

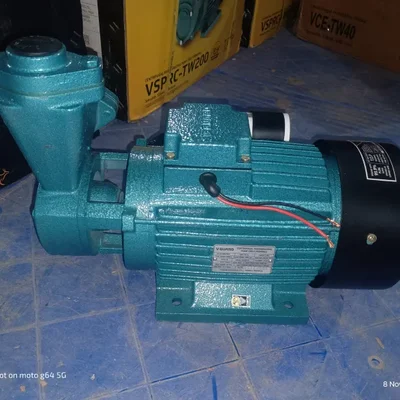

V-Guard (VSPRC-TW200) 2 HP Single Phase Self Priming Monoblock Pump, 148 ft Head and 47 LPM Flow - 2 Years Warranty
SKU: TI-VV-64982
Estimated Delivery By: Mar 9 - Mar 11
MRP : ₹20999 ₹16999
19% OFF!
Estimated Delivery By: Mar 9 - Mar 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹16999 (Including GST)
MRP : ₹20999
19% OFF!
Get Extra ₹255 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
V-Guard (VSPRC-TW200) 2 HP Single Phase Self Priming Monoblock Pump
147 ft Max Head and 47 LPM Flow Rate
2 Years Warranty
Country of origin: India
Specifications
- Brand: V-Guard
- Power : 2 hp
- Weight (Approx.) : 20 kg
- Flow Rate : 47 lpm
- Head : 45 meter
- Model No : VSPRC-TW200
- Voltage range : 260-180 V
- Frequency : 50 Hz
- Rated Speed : 2800 RPM
- Insulation : Class B
- Capacitor Value : 50 µfD, 440V
- Max. Current : 12.5 A
- Type of Duty : S1
- Total Head : 45 m (148 feet)
- Discharge @ 45 m : 2800LPH (47 LPM)
- Head Range : 20/60 m
- Pipe Size : 32 X 25 mm
- Self-priming time : 180 SEC at 3M
Material Specifications :
- Motor Body, Bracket, casing, End cover & Flanges material : CI-FG200
- Impeller Material : Forged Brass
- Rotor Shaft : SS-410
- Coating in CI components : Hammertone paint
- Cooling Fan : Poly Propylene
- Fan Cover : MS Powder coated.
- Copper wire (Main winding) : 20 SWG
- Copper wire (Aux. winding) : 22+22.5 SWG
Other Details :
- Type of Pump side sealing : Mechanical Seal (19F)
- Bearing : Ball Bearings 6204 2RZ at both side
Electrical Details :
- Main Winding Resistance : 1.0-1.5 Ω
- Auxiliary Winding Resistance : 2.0-3.0 Ω
- T.O.P : (160⁰C, 8A )*2 No’s
Warranty :
- 2 years warranty as per brand policy
Description
The V-Guard VSPRC-TW200 is a 2 HP single-phase self-priming monoblock pump designed for reliable water transfer in domestic, agricultural, and light industrial applications, offering a maximum head of 148 feet and flow rate up to 47 liters per minute. It features a robust cast iron construction, energy-efficient motor, and thermal overload protection for durability and safety. The pump comes with a 2-year warranty, making it suitable for consistent performance in varying water conditions.
