Brand: Generic (Imported)

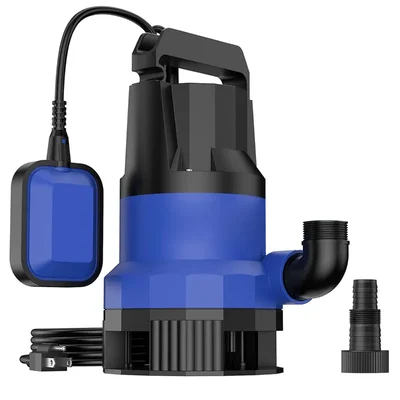

High Quality 2Hp Single Phase PP Body Dewatering Sewage Submersible Pump, 11m Head, 19000 LPH
SKU: TI-HQ-52302
Delivery By: Dec 16 - Dec 18
MRP : ₹11000 ₹7099
35% OFF!
Delivery By: Dec 16 - Dec 18 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹7099 (Including GST)
MRP : ₹11000
35% OFF!
Get Extra ₹106 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Heady Duty 2 Hp Single Phase Dewatering Sewage Submersible Pump
12m Max. Head, 24000LPH Max. Discharge
5m Long Cable
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Power : 2 hp
- Weight (Approx.) : 5 kg
- Flow Rate : 400 lpm
- Head : 12 meter
- Product Type : Sewage Submersible Pump
- Wattage : 1.5 kW
- Voltage : 230 V AC Supply
- Electricity Connection : Single Phase
- Max. Discharge Range : 24000 LPH (400 LPM)
- Cable Length : 5 meter
- Max. Head Range : 12 meter (39 feet)
- Max Submersible Depth : 7 meter (23 feet)
- Solid Size : Up to 35 mm
- Delivery Size : 50 mm
- Temperature Range : Up to 35 °C
- Input Current : 3.4 Amp.
- Shaft Material : Stainless Steel
- No Load Speed : 2850 RPM
- Winding Material : Copper
Note :
- As the head or height increases, the flow rate continues to decrease.
How to Operate :
- Connect a discharge pipe with a diameter at least equal to the diameter of the pump outlet.
- Immerse the pump in the liquid to be sucked, by making an angle of 45 degrees (to reduce the amount of air rapped in the pump body) the pump rests on the bottom, make sure it is on a flat and stable surface.
- Make sure that no one is present in the liquid to be pumped.
- Plug the pump to the mains.
Description
The drainage pump is used for draining pits and deep roadway underpasses, as well as for de-watering basements and courtyards subject to a flooding risk or groundwater. It is usually started automatically via float switches.
Features
:- Built-in overload motor protector with automatic reset permanent split capacitor.
- Impeller : Generic Imported
- Superior Steel Shaft with rotor.
- Mechanical seal: Carbon-ceramics.
- Type Con galleggiante with float switch.
- Protection: IPx8
Applications
:- Submersible draining pumps is suitable for automatic fixed domestic applications and for draining cellars and garages subject to flooding, also particularly useful as a portable pump for emergencies such as draining waste from tanks or rivers, emptying muddy swimming pools, fountains or excavations and subways. These pumps can lift liquids even with suspended solids in sewage water from septic tank. Level float switch offers permanent and automatic pump operation.
