Brand : Generic ( Made in India )

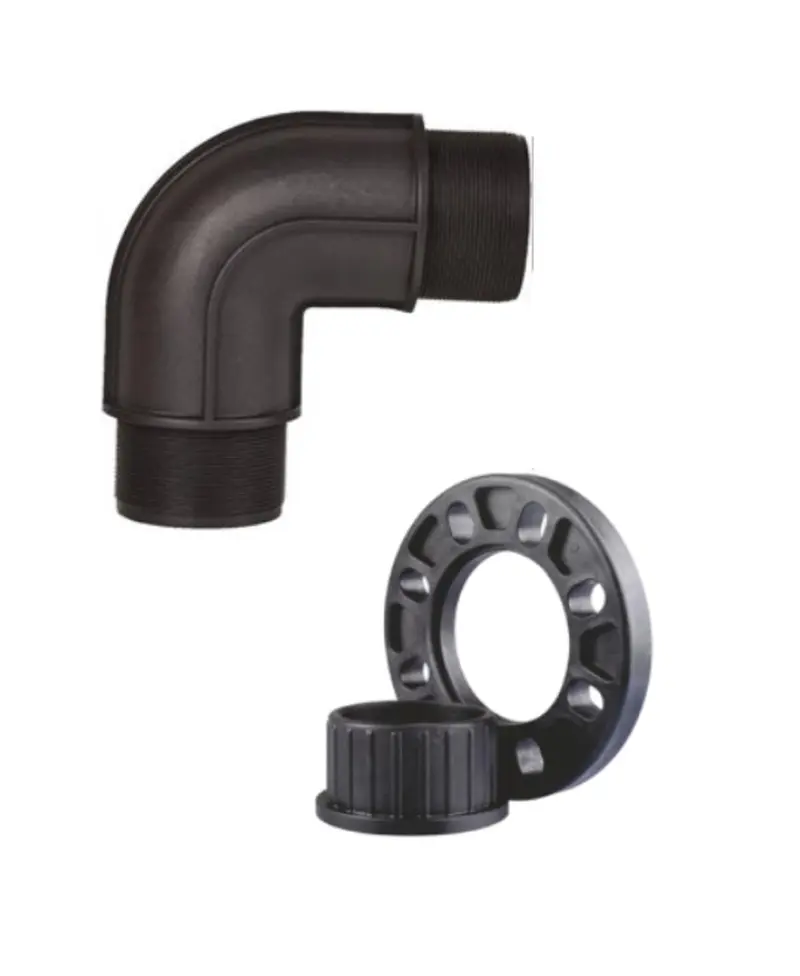

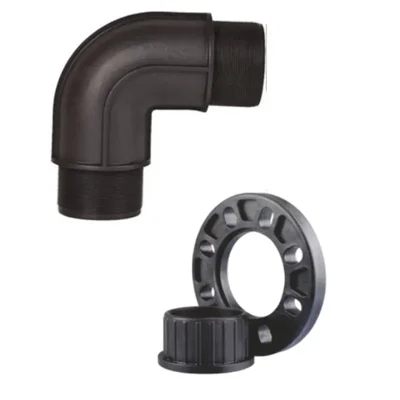

2 Inch Elbow with Slip On Flange, 8 Nut Bolt, Washer & 2 Gasket
SKU : JS-HA-2021255
MRP : ₹1176
₹980
17% OFF!
-
1
+
Get Extra ₹15 OFF on Prepaid Orders
Delivery By: Jun 22 - Jun 24
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Elbow with Slip On Flange, 8 Nut Bolt, Washer & 2 Gasket
2 Inch  Size (5.08 cm  approx)
Country of origin: India
Specification
  • Brand: Generic ( Made in India )
  • Weight (Approx.) : 0.45 kg
  • Model No. : HT-174
  • Size : 2 Inch or 50 mm or (5.08 cm approx)
  • Material : Reinforced Polypropylene
  • Color : Black
  • Elbow Dimensions :
  • (d) : 49.8 mm
  • (L1) : 36 mm
  • (L) : 146 mm
  • Max. Operating Pressure: 10 Bar/ 145 Psi
Description
Slip on Flange is essentially a ring that is placed over the pipe end, with the flange face extending from the end of the pipe by enough distance to apply a weld bead on the inside diameter. Threaded elbows are helpful when there is a need to change pipe direction.

Features

 :
  • Slip On : Good Resistance to strong acids except highly active oxidizers, such as nitric acid. It also has excellent resistance to weak and strong alkalies and to most organic solvents.
  • It also has excellent resistance to weak and strong alkalies and to most organic solvents.
  • Elbow with Smooth Flow and minimal pressure drop.
  • Sturdy and strong with a longer life
  • UV Stabilized

Applications

 :
  • Used in Irrigation, Plumbing and Industrial Pipe
