Brand: Imported

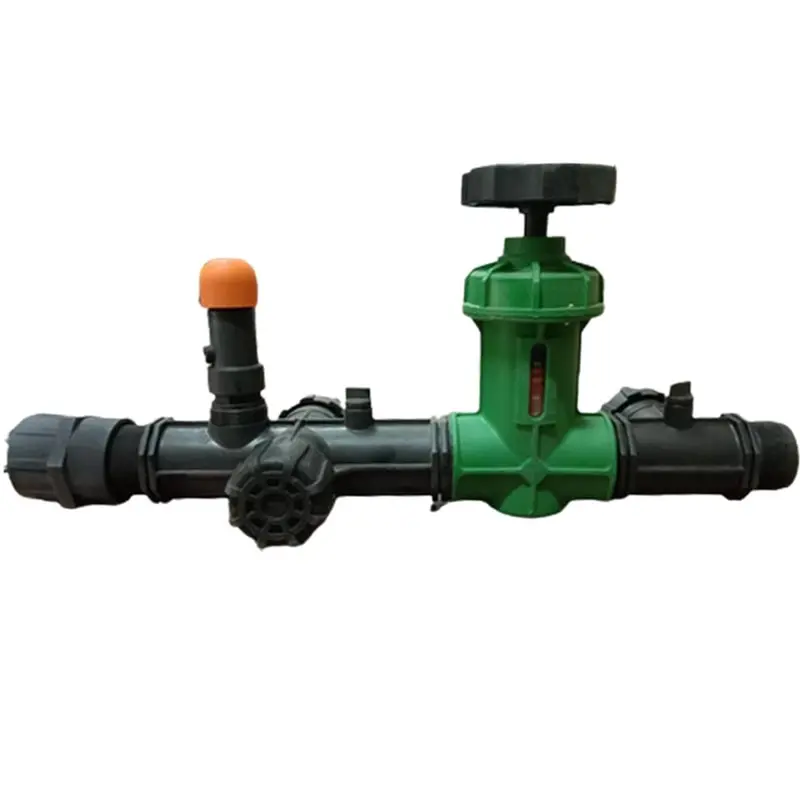

2 inch Header Assembly Threaded with Throttle valve 2 inch inlet and outlet manifold

SKU: JS-HA-2021213
Regular Price : ₹3000
Offer Price : ₹2490 (Including GST)
Get extra ₹75 Discount (On Checkout)
Qty:
shopping_cart ADD TO CART
Easy Returns
Quality Assurance
Trusted Delivery
After Sales Assistance

Short Description

Plastic Control Throttle Valve
Female Threaded Type
2 inch Size

Description

2 inch Header Assembly Threaded with Throttle valve 2 inch inlet and outlet manifold

Description :
  • Throttle valves are designed to regulate the supply of a fluid (as steam or gas and air) to an engine and operated by a hand wheel, a lever, or automatically by a governor especially.

Features :
  • Multi turn Linear motion throttle valve.
  • End connections: Female Threaded type
  • Max. Pressure : 6 Bar/ 85 Psi
  • Straight through flow with minimal pressure loss
  • Its slow operation prevents water hammer
  • Visual float position indicator to show us % throttle of piping system
  • Steel Rod inserted in full length during injection moldings of Shaft made of Reinforced Nylon, that gives excellent strength without breakage during rough usage.
  • Float Body profile is matched by CNC machines for smooth operation and keeping the leakage under permissible limit during complete shut off.
  • Dowel pin inserted in the shaft to prevent extra travel of float which do not transfer load on during extra tightening by farmers. This prevents breakage of cap.
  • During assembly of throttle valve, 2 nos. lock pins inserted to avoid any slippage or loosening of threads of throttle valve cap..
  • Maintaining seat leakage permissible limit as per standard ANSI/FCI-70-2-2006 in Class III (0.10%).
  • Chemical / Corrosion resistant, Color UV stabilized

Specifications :
  • Model No. : BPAS20
  • Product Type : Throttle Valve
  • Brand : Imported
  • Size : 2 Inch /50 mm
  • Thd./In : 11 BSP & 11.5 NPT

Specifications of Material :

  • Body :  Reinforce PP
  • Flange, Disc, Handle : Reinforce PA
  • Cylinder : Reinforce PP
  • PC Housing : Polycarbonate
  • Shaft : Reinforced PA+MS
  • Shaft O-Ring : NBR
  • Bottom & Sleeve Gasket : NBR
  • Handle Screw : MS
  • Teflon Seal Big & Small : Teflon
  • Housing Gasket : NBR
  • Locking Pin : SS-304
  • Dowel Pin (4*30) SS : SS-304

Components :
  • 2 inch Manifold inlet and outlet
  • 2 inch Port open both side threaded
  • 2 inch Single union pp ball valve
  • 2 inch socket threaded
  • 2 inch Throttle Valve
