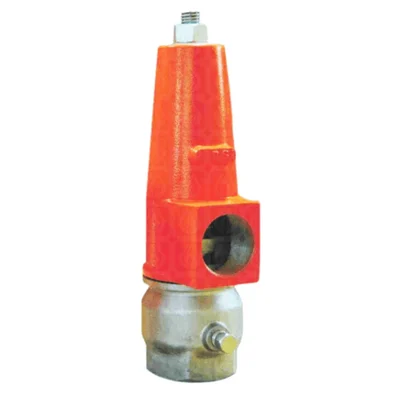

Automat HT-102 CLF Female Threaded Pressure Relief Valve with 20 to 80 psi Operating Pressure

Brand : Automat

Automat HT-102 CLF Female Threaded Pressure Relief Valve with 20 to 80 psi Operating Pressure

SKU : JS-HA-2021230

MRP : ₹4000

₹2970

26% OFF!

67 people have bought this recently

Get Extra ₹45 OFF on Prepaid Orders

Delivery By: Sep 22 - Sep 24

Add to Cart

Buy Now

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Automat HT-102 CLF Female Threaded Pressure Relief Valve

Pressure Release Valve with Cover Female

20 to 80 psi Operating Pressure

Sturdy female-threaded valve, suitable for irrigation and industrial applications.

Country of origin: India

Specification

Brand: Automat

Model No. : HT-102 CLF
Valve End Type : Female Threaded
End Size Outer Dia. : 2 Inch (5.08 cm approx.)
Operating Pressure : 20 to 80 psi (1.5 to 5.5 bar)
Connection: 2-inch BSP female thread
Factory set or field adjustable

Description

The Automat HT-102 CLF Female Threaded Pressure Relief Valve is designed to protect water systems by quickly releasing excess pressure surges caused by sudden flow changes, keeping pipelines safe and stable. Its robust cast aluminum body and durable oil-tempered spring make it suitable for agricultural, commercial, and industrial uses. With a wide operating pressure range of 20 to 80 psi and a 2-inch BSP female threaded connection, the valve is easy to install and integrate with existing equipment. The brightly colored orange cover ensures visibility and longevity, while the sealed, factory or field-adjustable settings retain consistent operation in tough environments. This safety control valve is designed to protect system by releasing pressure surges in water network elevation lines to atmosphere quickly which is caused by sudden changes in water speed due to pumps put into/out of service.

When network pressure exceeds set point, valve opens by itself quickly and protects system by releasing over pressure.
When the pressure decreases to normal level, it is closed slowly and automatically tightly without causing surge.

Features

Aluminium Cover with 1½“ BSP/NPT Female Threaded drain port
Cover with orange color powder coating for easy visibility on unit and longer life Pressure Relief Setting 22 psi to 80 psi
To be installed on the header unit before the main throttle valve to protect the bursting of main & sub-main lines occurring due to development of excessive pressure / water surges
High-strength cast aluminum body
Oil-tempered spring for accurate control
2-inch BSP female threaded connector
Orange powder-coated cover for visibility and durability.

Applications

Pressure relief valves are used in pneumatics systems to regulate compressed air
Pressure relief valves are used to regulate industrial and process gases that are stored and transported at high pressure
Pressure relief valves are used to release pressure when it reaches a certain level
Pressure relief valves are used to control overpressure levels
Protects irrigation and water supply networks
Prevents pipeline bursts from overpressure
Installed on header units before main throttle valves
