Brand : Automat

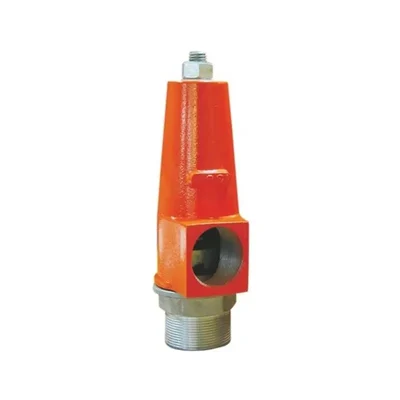

Automat HT-102 CLM Male Threaded Pressure Relief Valve used to protect the Water System
SKU : JS-HA-2021231
MRP : ₹3000
₹2500
17% OFF!
-
1
+
68 people have bought this recently
Get Extra ₹38 OFF on Prepaid Orders
Delivery By: Jun 30 - Jul 2
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Pressure Release Valve with Cover Male
20 to 80 psi Operating Pressure
Country of origin: India
Specification
  • Brand: Automat
  • Weight (Approx.) : 1.5 kg
  • Model No. : 102 CLM
  • Connection Size : 2 inch
  • Connection Type :   BSP/NPT Male Thread
  • Cracking Pressure : 7 -20 PSI
  • Pressure Set Range : 20-80 PSI

Description
Pressure Release Valve used to protect the system by releasing pressure surges in water network elevation lines to atmosphere quickly which is caused by sudden changes in water speed due to pumps put into/out of service.
When network pressure exceeds set point, valve opens by itself quickly and protects system by releasing over pressure.
When the pressure decreases to normal level, it is closed slowly and automatically tightly without causing surge.


Features

 :
  • Provides pressure surge protection for irrigation system
  • Adjustable pressure setting maximizes performance for individual applications
  • High strength cast aluminium body, stainless steel shaft offers strength & corrosion resistance
  • Oil tempered oil spring provide responsive operation for individual pressure range
  • Can be supplied at pre-set pressure or can be adjusted in field also
  • Pressure relief setting 22 psi to 80 psi
  • Aluminum Cover with 1 1/2" (13.97 cm approx) BSP/NPT Female threaded drain port
  • Cover with orange color powder coating for easy visibility on unit and longer life.

Applications

 :

  • Release valves are used in water systems to release air pockets that can form in pipes due to erratic water supply levels
  • Release valves can be used as tamper proof air valves.

Usage

 :
  • To be installed on the header unit before the main throttle valve to protect the bursting of main & sub-main lines occurring due to development of excessive pressure / water surges.
