Brand: Imported

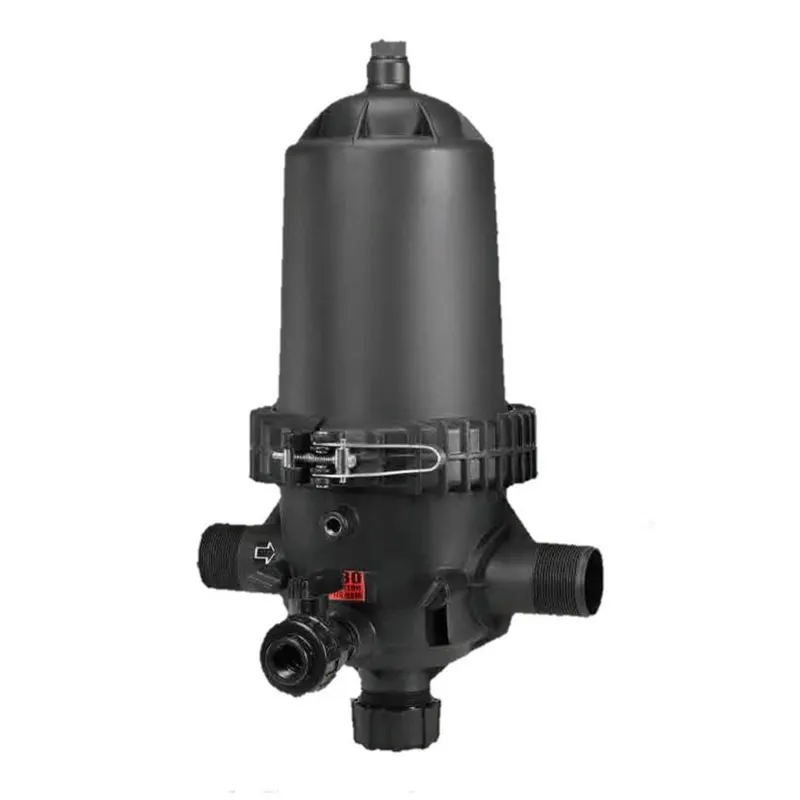

2 Inch Semi Automatic Disc Filter for Primary & Secondary Filtration
SKU: JS-HA-2021243
Price : ₹8038 (Including GST)
Qty:
Easy Returns
Quality Assurance
Trusted Delivery
After Sales Assistance
Short Description
2 Inch Semi Automatic Disc Filter for Primary & Secondary filtration
Description
2 Inch Semi Automatic Disc Filter for Primary & Secondary Filtration
Features :
- Filter designed for Pressure rating PN8 (8bar)
- 2 male threaded pressure port at the top for easy visibility of pressure.
- Disc cartridge enabled with spring loaded for full compression of disc and loosen during cleaning.
- Filter with Clogging indicator, Red pop up comes out at x 0.6 kg/cm² pressure differential, indicated end user to clean filter manually.
- During cleaning operation, all inlet water passes through the pipe, and water jets removes dirt from the discs.
- Barrel with 1½" Drain port.
- Handle for 90 degree rotation for cleaning of disc without dismantling of filter.
- Disc housing fan gives hydro cyclonic effect which makes particles in suspension that reduces cleaning frequency.
- Grooved disc design with dimensional consistency proven with more than 95% filter efficiency
Specifications :
- Model No. : HT-115DS-AS
- Brand : Imported
- Product Type : Semi Automatic Disc Filter
- Recommended flow : 417 lit/m (25m3/hr)
- Max. Working Pressure : 8 kg/cm2
- Range of Flow Rate : 18-27 m3/hr
- Filter Disc (standard) : 120 mesh PP Red disc (Single Removable cartridge)
- Filtration Surface area : 1080 cm2
- Inlet/outlet connection : 2" BSP/NPT male thread
- Closing System : Stainless Steel / Hybrid Clamp
- Distance between End connections : 341 mm
- Filter height (With Ball Valve) : 800 mm
- Filter width (With End Plug) : 235 mm
- Cartridge Diameter : 121 mm
- Cartridge Length : 375 mm
- Drain Valve (1 no.) : 1½" Female x Female threaded
- End Plugs (1 no.) : ¾" Male Threaded
Cleaning Instructions :
- Cleaning of the filter must be done when pressure differential across the disc reaches 0.6 kg/cm2 (8.5psi) or when the clogging indicator red button pops up.
- Cleaning the semi-automatic filter must be done while the filter is under pressure
- Gradually open the flushing valve below the filter
- To start cleaning mode of filter, turn the handle (top of the filter) 900 degree in clockwise direction.
- Cleaning operation starts, system pressure might increase during cleaning operation.
- When cleaning operation done, first filter handle direction should be at filtration mode. And then flushing valve gradually close.
- In case the the filter is still clogged (pressure indicator button is up). Repeat the above steps for effective disc cleaning.
Warning : In order to prevent water hammer (surge) always open or close filter handle valves in a gradual motion.
