Brand: Automat

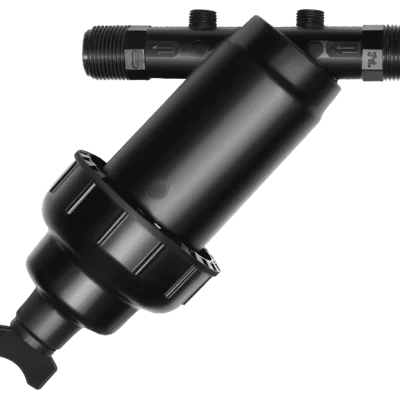

Automat HT-134YS Y-Type 2 inch Manual Disc Filter for Small Farm Holdings
SKU: JS-HA-2021192
502 people have viewed this recently
Delivery By: Dec 17 - Dec 19
MRP : ₹3096 ₹2580
17% OFF!
502 people have viewed this recently Delivery By: Dec 17 - Dec 19 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹2580 (Including GST)
MRP : ₹3096
17% OFF!
Get Extra ₹39 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Y Type Manual Disc Filter for Irrigation
2 inch (5.08 cm approx) Size
Automat
Country of origin: India
Specifications
- Brand: Automat
- Model No : HT-134YS
- Size : 2 Inch (5.08 cm approx)
- Max. Working Pressure : 6 kg/cm2
- Inlet/ Outlet Connection : 2 Inch (5.08 cm approx) BSP/NPT Male Thread
- Range of Flow Rate : 18-22 m3/hr
- Recommended Flow : 20 m3/hr (333 ltr/min)
- Filtration Surface Area : 409 cm2
- Distance between End Connections : 237 mm
- Filter Height : 325 mm
- Filter Width : 128 mm
- Cartridge Diameter : 70 mm
- Cartridge Length : 208 mm
- End Plug : 3/4 Inch (1.905 cm approx) Female Threaded
- Filter Disc : 120 Mesh PP disc (One removable cartridge)
Description
Disc filter is a type of water filter primarily used in Irrigation.
The filter cartridge is made of a number of plastic discs stacked on top of each other like a pile of proper chips.
The discs (or rings) each have a hole in the middle, forming a hollow cylinder in the middle of the stack.
The water passes through the small passages in between and the impurities are trapped behind.
Filter designed for maximum operating pressure of 6 Bar.
The filter cartridge is made of a number of plastic discs stacked on top of each other like a pile of proper chips.
The discs (or rings) each have a hole in the middle, forming a hollow cylinder in the middle of the stack.
The water passes through the small passages in between and the impurities are trapped behind.
Filter designed for maximum operating pressure of 6 Bar.
Features
:- Disk filters designed for Outside to Inside flow.
- Auxiliary Connections : Two pressure gauge ports with 1/4"(0.635 cm approx) male threaded connections.
- Filter body and cap connected by threaded connection to sustain high pressure and easy opening and closing.
- High filtration Efficiency.
- Spring loaded Disc cartridge for uniform compression of Disks.
- UV Protected, chemical and high pressure resistant reinforced plastic material used.
Applications
:- Household Water filtration
- Agriculture Irrigation
- Green Hose and small Farm Holdings
- Drip Irrigation
- Municipal Garden Irrigation
- Industrial Filtration
- Garden Lawn
