Screen Filter Y Type 2 inch for Small Farm Holdings

Easy Returns

Quality Assurance

Trusted Delivery

After Sales Assistance

Short Description

Y Type Screen Filter (20m3/hr) for Irrigation

2 inch Size

Description

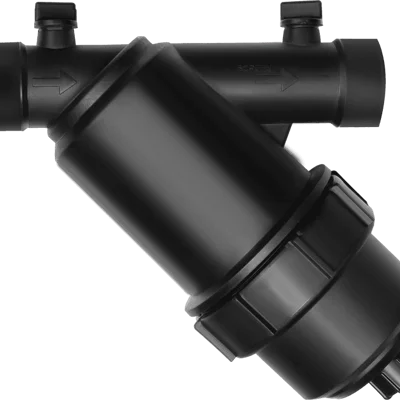

Screen Filter Y Type 2 inch for Small Farm Holdings

Descriptions :

• 2 Inch Y-Type Screen filter, in which flow passes through inside to outside of screen cartridge.
• Uniform distribution of flow into filter housing optimize filtration process.
• Filter designed for maximum operating pressure of 6 Bar.

Features :

• 1/4 Inch Male Threaded 2 Pressure Ports.
• Stainless steel (SS 316) double mesh screen for rust prevention.

• Filter body cap equipped with 3/4 inch female threaded connection for draining.
• Screen Cartridge with Double Screen 30 & 120 mesh to avoid tearing of mesh.

Specifications :

• Model No : HT-124YS
• Product Type : Agriculture Y-Type Screen Filter
• Brand : Imported
• Size : 2 Inch
• Material : Reinforce Polypropylene
• Max. Working Pressure : 6 kg/cm2
• Inlet/ Outlet Connection : 2 Inch BSP/NPT Male Thread
• Range of Flow Rate : 18 -22 m3/hr
• Recommended Flow : 20 m3/h (333 ltr/min)
• Filtration Surface Area : 295 cm2
• Distance between End Connections : 237 mm
• Filter Height : 325 mm

• Filter Width : 128 mm
• Filtering Cartridge : 304/316 Grade Stainless Steel

• Cartridge Diameter : 69 mm
• Cartridge Length : 222 mm
• End Plug : 1/4 Inch Male Threaded
• Filter Mesh (Standard) : Double Screen 30/120 Mesh
