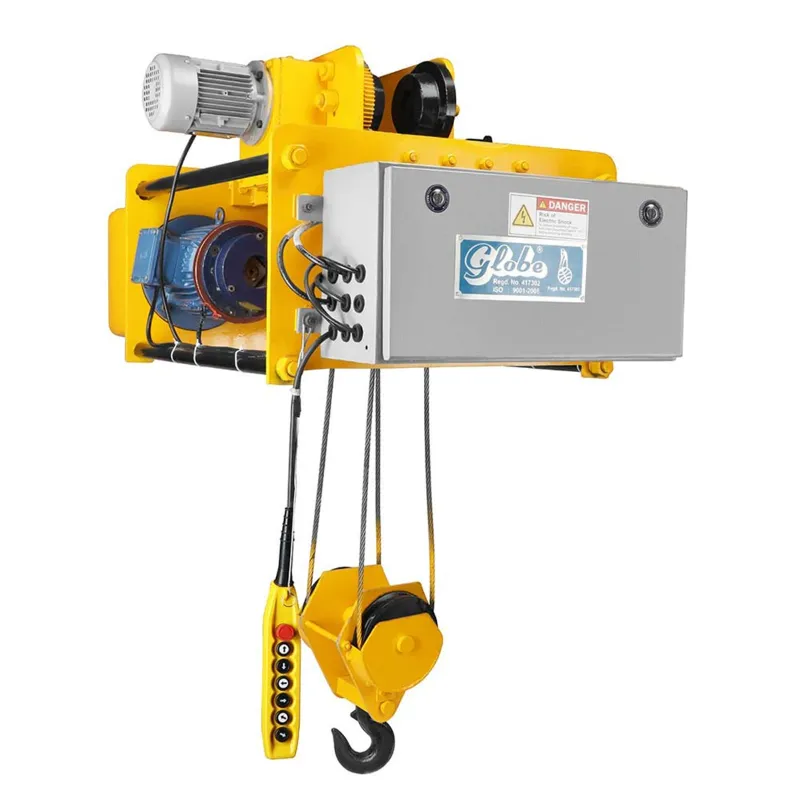

GLOBE 2 Ton 6 Meter AOE Type Electric Wire Rope Hoist With Electric Travelling Trolley And 12 Months Warranty (GWRH M1-84)
SKU: TI-G2-11920
Regular Price : ₹190000
Offer Price : ₹155600 (Including GST)
Get extra ₹4,668 Discount (On Checkout)
Qty:
Easy
Returns
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Short Description
2 Ton 6m Electric Wire Rope Hoist With Electric Travelling Trolley
2 HP Hosting Motor
8 mm Rope Diameter
Remote Controlled Electric hoist
12 Months Warranty
Description
GLOBE 2 Ton 6 Meter AOE Type Electric Wire Rope Hoist With Electric Travelling Trolley And 12 Months Warranty (GWRH M1-84)
Description :
- Heavy-duty fabricated Structure for hoisting & trolley, Cast iron Gear Box Housings with High Precision-cut Oil Cooled Helical internal gears & Pinion makes this machine the most demanding Machine in the industry. This Electric wire rope hoist is designed with M5 & M6 rated Gearboxes to improve machine performance.
- Heavy Duty ball & Spherical Roller Bearing are provided for Gear Box and Wire rope Drums.
- Electric Hoists are provided with Electrical Trolley where hoisting and cross travel can be operated electrically through a push-button pendant.
Features :
- Fail-safe Electro Magnetic – Instant braking Arrangement.(AC/DC)
- Heavy-duty Electric Motors.
- Provided with safety limit switches.
- Increase Productivity.
- Micro Operating speeds by V3F Control Panels.
- Unbreakable and high-performance push button pendent stations.
- Customization can be done wrt to Operating speeds & Electrical Protection.
- Flame Proof Hoists are also available for all variants.
- Can be provided with Higher lifts
Specification :
- Model No. : GWRH M1-84
- Product Type : Electric Wire Rope Hoist
- Brand : Made in India
- Capacity : 2 Ton
- Working : Remote Controlled
- Standard Lifting Height : 6 Meter
- Hoisting Speed : 3 MPM
- Hosting Motor : 2 HP
- Traversing Speed : 15 MPM
- Traversing Motor : 0.50 HP
- Motor Specification : 40% CDF, 150 Starts/Hr., 50Hz, 415V, 3 Phase, AC, Squirrel Cage Induction Motor, IE2.
- No. Of Falls (Rope) : 4 Nos.
- Rope Diameter : 8 mm
- Rope Specification : 6x36/37, Fiber Core (FMC)/1770 N/mm Sq., Ungalvanized, 40KN Breaking Strength
- Weight : 240 Kg (Approx.)
Areas Of Application :
- Assembly Shops
- Cement Industries.
- Glass Industries
- Steel Industry
- Textile Industry
- Heavy Fabrication Workshops.
- Coil Handling
Warranty :
- 12 Months Warranty
