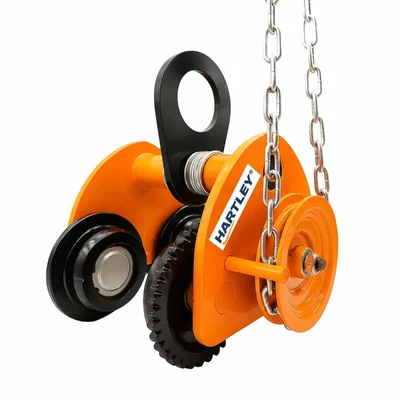

Hartley 2 Ton 3 Meter Hand Chain 75-140mm I-Beam Powder Coated Mild Steel Geared Travelling Trolley

Brand: HARTLEY

Hartley 2 Ton 3 Meter Hand Chain 75-140mm I-Beam Powder Coated Mild Steel Geared Travelling Trolley

Name: Hartley 2 Ton 3 Meter Hand Chain 75-140mm I-Beam Powder Coated Mild Steel Geared Travelling Trolley
Brand: HARTLEY
SKU: TI-H2-82190
Price: 4479 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-H2-82190

MRP : ₹6100 ₹4479

27% OFF!

Get Extra ₹67 OFF on Prepaid Orders

Estimated Delivery By: Aug 21 - Aug 23

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹4479 (Including GST)

MRP : ₹6100

27% OFF!

Get Extra ₹67 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

2 Ton heavy-duty geared travelling trolley with 3-meter hand chain for 75-140mm I-beams and monorails.

Country of origin: China

Brand: HARTLEY
Weight (Approx.) : 15 kg
Load Capacity : 2 ton

Load Capacity: 2 Ton (2000 kg)
Hand Chain Length: 3 Meters
I-Beam Flange Width: 75 mm – 140 mm
Material Composition: Powder-Coated Mild Steel
Runner Type: Precision-Machined Wheels with Sealed Ball Bearings
Operation Mode: Manual Geared Hand Chain
Safety Features: Anti-Drop & Anti-Derailing Protection Guides

The Hartley 2 Ton Heavy-Duty Geared Travelling Trolley is an industrial-grade material handling solution engineered to safely move and position suspended loads up to 2000 kg (2 Tons) along I-beams. Featuring a 3-meter manual hand chain, it provides precise, controlled forward and backward traversing motion for short distances, making it an essential companion for chain pulley blocks, manual chain hoists, and electric hoists. Constructed from high-quality powder-coated mild steel, it offers exceptional structural strength, corrosion resistance, and low-maintenance durability. Its precision-machined runner wheels are fitted with sealed ball bearings to guarantee smooth rolling action, while integrated anti-drop and anti-derailing safety guides protect against wheel disengagement on I-beams ranging from 75 mm to 140 mm in width.

Features

2 Ton (2000 kg) Load Capacity: Safely supports and traverses heavy industrial loads up to 2 Tons along beam axes.
Controlled Geared Operation: Equipped with a 3-meter hand chain for smooth, precise, and low-effort forward and backward load movement.
Powder-Coated Mild Steel Build: High-strength mild steel construction with an anti-corrosive powder finish for long operational life.
Precision Bearings & Wheels: Precision-machined runners with sealed ball bearings ensure smooth rolling with minimal push force.
Anti-Drop & Anti-Derailing Safety: Includes built-in safety guides to prevent accidental wheel disengagement from I-beams.
75mm to 140mm Beam Width Range: Adjustable flange design easily installs onto standard industrial I-beams and monorails.

Applications

Warehouses & Logistics: Transporting heavy cargo, machinery components, and pallets along monorail beam networks.
Factories & Manufacturing Plants: Suspending and traversing hoists for assembling heavy equipment and raw materials.
Workshops & Garages: Precision positioning of engines, transmissions, and heavy tools during mechanical servicing.
Construction & Structural Sites: Supporting overhead lifting equipment on temporary or permanent structural I-beams.

Usage

Beam Width Measurement: Measure the I-beam flange width (75 mm to 140 mm) and arrange the spacer washers on the central pin accordingly.
Mounting: Mount the trolley wheels onto the bottom flange of the I-beam, ensuring equal washer spacing on both side plates for proper wheel engagement.
Hoist Attachment: Suspend your 2 Ton chain pulley block, manual hoist, or electric hoist from the heavy-duty central load suspension eye.
Load Movement: Pull one side of the 3-meter hand chain to drive the internal gear mechanism and move the trolley forward; pull the opposite side to move it backward.
Inspection: Periodically check runner wheels, sealed bearings, and anti-derailing guides to maintain smooth, safe operation.
