Brand: Nutronics

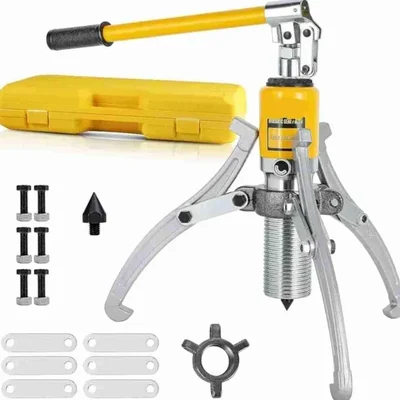

Nutronics 20-Ton 3-Inch Max Stroke 3-in-1 Adjustable Jaw Hydraulic Gear Bearing Wheel Puller with Case
SKU: TI-N2-76895
Estimated Delivery By: Jul 17 - Jul 19
MRP : ₹18100 ₹13399
26% OFF!
Estimated Delivery By: Jul 17 - Jul 19 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹13399 (Including GST)
MRP : ₹18100
26% OFF!
Get Extra ₹201 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
This is a heavy-duty 3-in-1 hydraulic gear and bearing puller offering a 20-ton rated output and a 3-inch stroke. It features a 360o rotating pump head and adjustable high-low jaws for effortless extraction of stubborn gears, wheels, and hubs.
Country of origin: China
Specifications
- Brand: Nutronics
- Weight (Approx.) : 17 kg
- Net Quantity : 1 pc
- Product Type: Integrated Hydraulic Gear & Bearing Puller
- Rated Output Force: 20 Tons (40,000 lbs)
- Maximum Piston Stroke: 3 Inches (76.2 mm)
- Jaw Configuration: 3-Jaw / 2-Jaw Adaptable Layout with High-Low Points
- Operation Mode: Manual Integrated Hydraulic Pump
- Color: Industrial Yellow & Black
- Enclosure Suitability: Heavy Industrial Machinery Maintenance
Description
The NUTRONICS Heavy-Duty Hydraulic Gear and Bearing Puller is an advanced, high-performance maintenance tool designed to replace traditional, labor-intensive mechanical pullers. Engineered to deliver a massive 20 tons of pulling force with a 3-inch maximum piston stroke, this tool easily extracts stubborn bearings, gears, hubs, and flanges without damaging critical machinery components.
Features
:- Massive 20-Ton Mechanical Force: Provides extreme hydraulic pressure to pull out heavily seized industrial bearings, wheels, and flanges with minimal user effort.
- 3-in-1 Adjustable Jaws: Configurable multi-point jaw hooks can be quickly adjusted between high and low landing positions for versatile component sizing.
- Self-Contained Monolithic Design: Combines the hydraulic cylinder, oil reservoir, and pump mechanism into a single handheld device, eliminating dangling lines.
- Smooth Automatic Spring Retraction: Features an internal return spring that smoothly pulls the structural piston back into the housing once the release valve is cracked open.
Applications
:- Perfect for pulling industrial electric motor bearings, large transmission gears, and drive pulleys in factories.
- Ideal for heavy automotive workshops removing truck wheel hubs, axle flanges, and timing gears.
- Highly effective for mobile maintenance technicians servicing agricultural harvesters, marine shafts, and railway components.
Usage
:- Closing the Circuit: Locate the manual oil return valve stem on the side of the puller and tighten it firmly in a clockwise direction.
- Adjusting the Grip: Adjust the jaw seat configuration and mount the jaw hooks so they completely and squarely grab the outer lip of the object being pulled.
- Pumping Action: Insert the handle lever and tilt the piston starting rod back and forth. The internal hydraulic pressure will drive the body forward while the jaw hooks pull the seized object straight off the shaft.
- Handling Long Draws (Resetting): If the object requires a deeper pull than the 3-inch effective stroke, stop pumping at maximum extension. Slowly loosen the oil return valve counter-clockwise to let the piston retract, reset your jaw depth link, and repeat steps 1–3.
- Releasing Tensions: Once the component is completely pulled free, slightly loosen the oil return valve counter-clockwise to allow the internal spring to automatically return the piston to its starting base.
