Brand : Toshweld

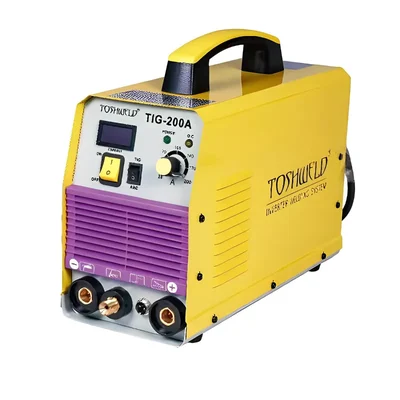

Toshweld TIG / ARC 200 Single Phase Mosfet Welding Machine, 200 Amp.
SKU : AB-TW-20233235
MRP : ₹21000
₹14900
29% OFF!
-
1
+
12792 people have viewed this recently
Get Extra ₹224 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
TIG/ARC 200 Welding Machine
Single Phase Mosfet Welding Machine
200 Amp Output Current
Country of origin: India
Specification
Description
Toshweld TIG / ARC 200 Single Phase Mosfet Welding Machine, 200 Amp.

Description
  • The TIG/ARC 200 welding machine is a versatile welding device that allows for both TIG (Tungsten Inert Gas) and ARC (Shielded Metal Arc) welding processes. It is designed to be portable and can be easily transported from one job site to another. The TIG/ARC 200 welding machine typically has an output range of 10-200 amps and can weld materials such as steel, stainless steel, copper, and aluminum. It features an adjustable amperage control, a foot pedal for precise amperage adjustment, and a high-frequency start for TIG welding.

Features :
  • TIG and ARC Welding Capability: This welding machine offers both TIG and ARC welding processes, making it suitable for welding a wide range of metals and materials.
  • High-Frequency Start: The high-frequency start feature allows for a smooth and stable arc start when TIG welding, minimizing the risk of electrode sticking and weld contamination.
  • Adjustable Amperage Control: The adjustable amperage control allows welders to adjust the welding current to suit the thickness and type of material being welded.
  • Foot Pedal Control: The foot pedal control feature provides precise amperage control, allowing welders to maintain a consistent and stable arc while welding.
  • Hot Start: The Hot Start feature provides an initial boost of amperage when starting the welding process, making it easier to strike an arc and preventing electrode sticking.
  • Digital Display: The digital display provides a clear and easy-to-read indication of the welding current and other settings, allowing for greater accuracy and control.
  • Portable and Lightweight: The TIG/ARC 200 welding machine is designed to be portable and lightweight, making it easy to move from one job site to another.

Specifications :
  • Model No. : TIG / ARC 200
  • Input Voltage : AC230V±15%
  • Input Power Capacity : 6 kVA
  • No-Load Voltage : 56 V
  • Output Current Range : 7 - 200 Amp
  • Rated Input Current : 28/43 Amp
  • Electricity Connection : Single Phase
  • Arc Ignition : HF
  • Power Factor : 0.73
  • Plate thickness : 0.3-5.0/ 1.0-6.0 mm
  • Electrode Size : 2.5mm and 3.15 mm

Suitable for :
  • 2.5 mm MS Rod (12 no.)
  • 3.15 mm MS Rod (10 no.)

Application Areas :
  • Automotive and Aerospace
  • Fabrication and Construction
  • Maintenance and Repair
  • DIY and Hobbyist

Safety Precautions :
  • Wear Proper Protective Gear
  • Use a Well-Ventilated Area
  • Keep Flammable Materials Away
  • Check for Electrical Hazards
  • Keep the Work Area Clean
  • Use the Correct Settings
  • Disconnect the Power

Note :
  • Do not use the welder for work other than welding.
  • Do not touch the live part.
  • Do not solder in places where skimming, cleaning, and spraying are required.
  • When using, please wear a protective cover or protective clothing.
