Brand: Toshweld

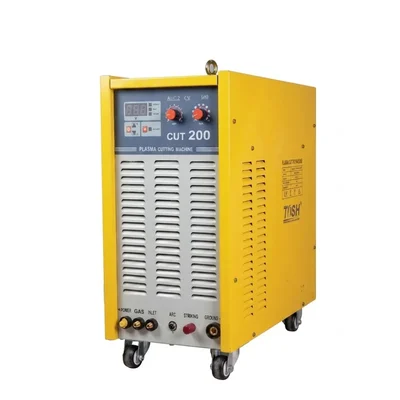

Toshweld 3-Phase 200A Inverter Air Plasma Cutting Machine, Heavy-Duty IGBT Module for CNC & Manual Metal CUT 200 IJ
SKU: TI-T3-72172
Estimated Delivery By: May 25 - May 27
MRP : ₹197698 ₹164748
17% OFF!
Estimated Delivery By: May 25 - May 27 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹164748 (Including GST)
MRP : ₹197698
17% OFF!
Get Extra ₹2,471 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
The Toshweld CUT 200 IJ is an industrial 3-phase inverter air plasma cutting system that uses sophisticated IGBT modules to deliver a large 20A to 200A cutting current. It allows for high-end CNC machine profiling up to 25.0 mm and manual slicing up to 50.0 mm. It is designed for intense production workplaces, shipyards, and the construction of heavy structural steel.
Country of origin: China
Specifications
- Brand: Toshweld
- Weight (Approx.) : 60 kg
- Output Current Range : 200 amp
- Technology : IGBT
- Model: CUT 200 IJ
- Phase: 3 Phase
- Technology: IGBT Module Inverter
- Input Voltage (V): AC415V+15%
- Input Power Capacity (KVA): 29
- No-Load Voltage (V): 320
- Output Current Range (A): 20 - 200
- Rate Input Current (A): 44.3
- Air Pressure Range (KG): 4 - 6
- Cutting Thickness Manual (MM): 1.0 - 50.0
- Cutting Thickness CNC (MM): 1.0 - 25.0
- Dimension (Inch): 26.5 x 13 x 20
Description
Designed for heavy-duty manufacturing and extreme metal fabrication, the Toshweld CUT 200 IJ is a very powerful, industrial-grade DC inverter air plasma cutting equipment. This three-phase system ensures outstanding arc stability, excellent energy conversion efficiency, and continuous performance under demanding workloads thanks to its extremely sophisticated, heavy-duty IGBT module inverter technology. With its exceptional versatility, it can easily cut up to an astounding 50.0 mm thickness when operating by hand. It also seamlessly integrates with automated CNC cutting profiles for high-speed output up to 25.0 mm. For smooth manufacturing mobility, it is constructed inside a sturdy floor-standing industrial enclosure with heavy-duty grounding arrangements and structural caster wheels.
Features
:- Heavy-Duty IGBT Module Core: Uses high-end multi-module industrial IGBTs to provide optimal power factor and thermal stability during prolonged high-amp operation.
- Dual CNC & Manual Processing: Completely optimized with automatic signal outputs for perfect communication with both high-capacity hand torches and CNC automated tables.
- Ultra-Thick Material Penetration: Capable of performing fine profile cuts up to 25.0 mm via CNC automation and clearing rough cuts up to 50.0 mm on thick steel plates by hand.
- High-frequency pilot arc starting produces flawless, smooth separations even through rusted, painted, or uneven plates by instantly igniting the arc without coming into contact with the metal surface.
- Comprehensive Protective Logic: Phase failure, thermal overloads, overcurrent, overvoltage, and drops in operating air pressure are all handled by built-in proactive safety circuitry.
Applications
:- Large Steel Infrastructure: Perfect for cutting large plates, storage tanks, girders, and thick structural beams.
- Thick hull sheets, structural reinforcements, and deep-sea vessel construction components are processed in shipbuilding and marine yards.
- Automated CNC Profiling Centers: High-volume precision nesting and form profiling on aluminum, stainless steel, and mild steel plates.
- Scrap yard and demolition operations include the quick disassembly of big industrial machinery frameworks, metal casting risers, and heavy gear.
- Railway and locomotive overhauls include preparing track components, maintaining undercarriage structure, and producing heavy rolling stock.
Usage
:- Connect the device to a high-displacement industrial air compressor that can sustain a clean air pressure of 4 to 6 KG.
- Depending on the manufacturing arrangement, select between a manual hand torch interface or an automated CNC torch line.
- Depending on the thickness of the metal, the heavy-duty current dial on the front panel can be adjusted to scale power output from 20A to 200A.
- To obtain small kerf cuts with less bottom-dross adhesion, maintain an ideal cutting speed and consistent standoff distance.
