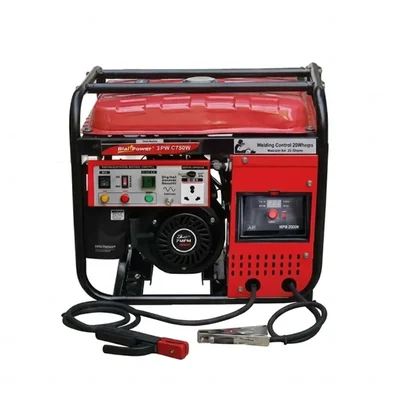

HPM 200 Amps 5.5KVA 3600RPM 240cc 9HP Petrol AC Welding Generator HPW C7500i

Brand: HPM

HPM 200 Amps 5.5KVA 3600RPM 240cc 9HP Petrol AC Welding Generator HPW C7500i

Name: HPM 200 Amps 5.5KVA 3600RPM 240cc 9HP Petrol AC Welding Generator HPW C7500i
Brand: HPM
SKU: SG-DC-2028
Price: 149999 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: SG-DC-2028

MRP : ₹209999 ₹149999

29% OFF!

3488 people have viewed this recently

Get Extra ₹2,250 OFF on Prepaid Orders

Estimated Delivery By: Aug 20 - Aug 22

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹149999 (Including GST)

MRP : ₹209999

29% OFF!

Get Extra ₹2,250 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

200A 5.5 KVA dual petrol AC welding generator with 240cc 9HP engine, PWM inverter technology, and 15h run time.

Country of origin: India

Brand: HPM
Weight (Approx.) : 45 kg
Fuel Used : Petrol
Fuel Consumption : 1 l/hr

Model No.: HPW C7500i
Welding Output Current: Up to 200 Amps (Duty Cycle 60%)
Electrode Diameter: 2.6 mm to 4.0 mm
Max AC Generator Output: 5500 VA (5.5 KVA)
Rated AC Generator Output: 5000 VA (5.0 KVA)
Voltage & Frequency: 230 V ~ 50 Hz
Engine Model & Type: HM172 Pi / OHV 25° Inclined, Single Cylinder, 4-Stroke, Forced Air Cooling
Engine Displacement & Power: 240 cc / 9 HP @ 3600 RPM
Starting System: Recoil Start
Fuel Tank Capacity: 21 Liters (Petrol)
Fuel Consumption: 1.5 Liters/Hour
Continuous Operating Hours: 15 Hours
Rectifying Mode: PWM Inverter (Buck) Technology
Open Circuit Voltage: 50 ± 5 Volts
Working Voltage: 20V to 30V
Digital Display: Yes (Volts, Hz, Amps)
Safety Features: Oil Alert System & Overload Protection (NFB)
Sound Level: <86 dB (from 1 meter)
Dimensions (L x W x H): 600 x 452 x 540 mm

The HPM 200 Amps 5.5 KVA AC Welding Generator (HPW C7500i) is a versatile, high-performance dual-purpose power source engineered for heavy-duty field welding and reliable AC electricity generation. Powered by a 240cc 9 HP 4-stroke OHV air-cooled engine, this unit delivers up to 200 Amps of DC welding current using advanced PWM Inverter (Buck) Technology, supporting electrode diameters from 2.6 mm to 4.0 mm for arc welding thin-to-thick MS sheets and parts. Simultaneously, it serves as a robust standalone 5.5 KVA 230V 50Hz AC generator equipped with a 21-liter petrol tank for up to 15 hours of continuous operation. Featuring a digital multi-display, oil alert system, overload NFB protection, and a light 45 kg dry weight, it provides ideal portable power for fabrication, construction, and remote maintenance operations.

Features

Dual Functionality: Serves as both a 200 Amp DC arc welder and a 5.5 KVA AC 230V power generator.
PWM Inverter Technology: Utilizes PWM Inverter (Buck) technology for smooth, stable, and energy-efficient DC welding currents.
Extended 15-Hour Operating Run Time: Extra-large 21-liter fuel tank consumes just 1.5 L/hr, delivering up to 15 continuous hours of power.
Powerful 240cc 9HP OHV Engine: Reliable single-cylinder 4-stroke petrol engine running at 3600 RPM for maximum heavy-duty power output.
Digital Multi-Meter Panel: Easy-to-read digital display panel monitors system output voltage, frequency (Hz), and welding current (Amp).

Accessories

1 pc AC plug
1 Set Tool Kit
1 Set Welder Holder with Cable
1 Set Earthing Clamp With Cable
1 pc Oil Funnel
1 pc Owner’s Manual

Note :

Do not use the welder for work other than welding.
Do not touch the live part.
Do not solder in places where skimming, cleaning and spraying are required.
When using, please wear a protective cover or protective clothing.

Applications

Field Welding & Metal Fabrication: Low, medium, and high-current MMA arc welding on mild steel (MS) sheets, structural frames, and metal parts.
Construction & Repair Sites: Running power tools, grinders, saws, and floodlights in areas without grid power access.
Commercial & Emergency Backup: Supplying 230V 50Hz AC power for running household or job-site appliances during blackouts.

Usage

Oil & Fuel Fill: Fill 600 ml of lubricating oil into the crankcase and add clean unleaded petrol into the 21-liter fuel tank.
Setup: Place the 45 kg unit on a firm, level outdoor surface away from enclosed spaces and combustible materials.
Engine Startup: Turn on the fuel valve, set the switch to "ON", engage the choke lever, and pull the recoil starter rope firmly to start the engine.
Welding Operation: Connect the welding holder and earthing clamp cable to the DC terminals, adjust the current according to electrode thickness (2.6 mm to 4.0 mm), and strike your arc.
AC Power Generation: Plug your 230V AC tools or appliances into the panel outlet, keeping total load within 5.5 KVA max output.
