Brand: Surya

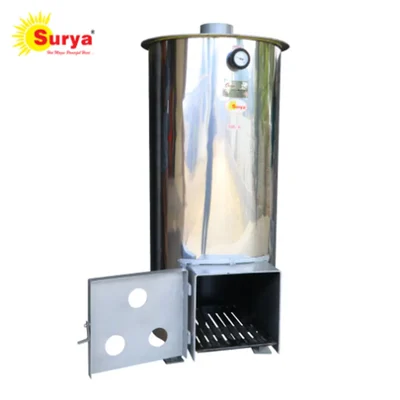

Surya Mirror Finish Non-Electric Vertical Tubular Biomass Wood Fired Hot Water Boiler 200L
SKU: TI-SM-68243
Estimated Delivery By: Apr 15 - Apr 17
MRP : ₹64999 ₹49999
23% OFF!
Estimated Delivery By: Apr 15 - Apr 17 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹49999 (Including GST)
MRP : ₹64999
23% OFF!
Get Extra ₹750 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
The Surya 200L is a professional-grade, non-electric wood-fired boiler crafted from JSW/Jindal steel. Designed for 15 years of use, it provides hot water in 10 minutes and is the ultimate cost-saving solution for hard water regions.
Country of origin: India
Specifications
- Brand: Surya
- Model: 200L
- Capacity: 200 Liters
- Automation Grade: Semi-Automatic
- Heater Type: Vertical Tubular Heater
- Surface Finish: Mirror Polish
- Color: Silver Ash
- Operating Temperature: 100°C
- Working Pressure: 10 Kgs/cm²
- Fuel Consumption: 7kg (at maximum load)
- Inner Tank Thickness: 8 mm
- Outer Tank Thickness: 5 mm
- Diameter: 25 Inch
- Height: 4.6 Feet
- Total Weight: 175 kg
- Inlet / Outlet Size: 1 1/4 Inch
- Drainage Size: 1 Inch
- Safety Valve Size: 1/4 Inch
- Pressure Relief Valve: 1/2 Inch
- Firing Area Volume: 800 cubic inches
- Exhaust Pipe: Height 10 Feet x Diameter 4 Inch
- Space Required: 2 x 2 Feet
- Mounting Type: Foot Mounting
Description
The Surya 200L Wood Fired Hot Water Boiler is a cutting-edge, highly effective storage-type water heating device that can continuously supply hot water without the use of electricity. This boiler's sturdy vertical tube design, which guarantees quick heating, is built using premium raw materials from market leaders like JSW and Jindal. Because it is designed to handle a variety of biomass fuels, it is a very affordable option for both home and business use. This boiler offers a dependable lifespan of up to 15 years, with an inner tank shielded by a rust-proof covering and the capacity to function extremely well in hard water situations.
Features
:- Rapid Heating: It can swiftly reach 60°C and deliver hot water in just ten minutes.
- Superior Insulation: Ensures hot water is accessible even after the fire is extinguished by retaining heat for eight to ten hours.
- Fuel Versatility: Effectively uses dry agricultural waste, wood, charcoal, coconut shells, and kernels.
- Multi-Floor Support: Able to connect hot water to several floors at once.
- Hard Water Resilience: This wood-fired boiler is perfect for regions with high mineral content (hard water), in contrast to solar systems.
- For optimal durability and safety, the heavy-duty build has an outside tank that is 5 mm thick and an interior tank that is 8 mm thick.
- High Pressure Capacity: Suitable for contemporary plumbing systems, it is made to function at a working pressure of 10 kg/cm².
Applications
:- Domestic Use: Perfect for independent bungalows and large families.
- Hospitality: Fit for hotels, guest houses, and resorts.
- Healthcare: Regular hot water is needed in hospitals and clinics.
- Agro-Industry: Poultry and dairy farms for processing and sanitation.
- Education: Hostels in schools and colleges.
Usage
:- Fuel management: To guarantee adequate ventilation, feed the fire with dry wood or biomass and clean the ash drawer on a regular basis.
- Moisture Control: To avoid external rusting, keep the boiler's exterior dry at all times.
- Top Surface: As the boiler heats up, avoid putting detergents, shampoos, or soaps on top of it.
- Plumbing Safety: Avoid using plastic pipes for the immediate connection and make sure all connections are leak-free. A non-return valve (NRV) should not be fitted.
- Cleaning: To avoid dust obstructions that lower heating effectiveness, clean the exhaust pipe on a regular basis.
- Tank Care: To get rid of germs and sediment, totally flush the tank if the water starts to smell or turn discolored.
