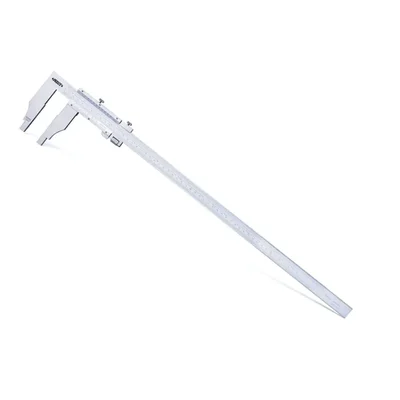

Insize 200 mm Vernier Caliper, Zero-Setting at any Position, 1208-214 Model

• Model No : 1208-214
• Measurement Range : 0-200 mm
• Resolution : 0.02 mm
• Lower Jaw Length : 100 mm
• Material : Stainless Steel
• Overall Length : 330 mm
• Accuracy : ± 0.06 mm

Features

• Adjustable Zero-Setting: Unlike fixed-scale manual calipers, the vernier scale on this model can be adjusted and locked. This allows you to set a "Zero" point at any part of the beam, perfect for measuring deviations from a master standard
• Elongated Lower Jaws: Equipped with 100 mm (4-inch) lower jaws, providing double the depth reach of standard 200 mm calipers. This is essential for measuring large-diameter pipes or reaching across bulky obstructions.
• Fine Adjustment Carriage: Crucial for large-scale tools, this caliper includes a thumbwheel carriage for micro-positioning the jaws to achieve exact readings.

Applications

• Comparative Measurement: Setting the "Zero" to a master gauge and checking if production parts are within tolerance (plus/minus deviation).
• Industrial Pipe Inspection: The 100 mm jaws easily bridge across the curves of industrial piping to measure outside diameters.
• Heavy Machinery Repair: Checking wear on oversized shafts, flanges, and mechanical housings where standard jaws are too short.
• Foundry & Castings: Reaching deep into or over irregular raw castings to capture dimensions.
• Electronic-Free Zones: A reliable, battery-free solution for environments with high electromagnetic interference.
